KBL 7900 - Megavoice Without Music Option; Internal Music Signal MP3-Player

Music amplifi er
3220 2885 00
E8: 6 5 ... 2 1
Interface
board
3220 3230 60
MP3
megaVoice
3220 3222 95
Musik amplifi er
3220 2885 00
E8: 6 5 ... 2 1
I
2
C Audio-
switch
3220 3230 20
MP3
megaVoice
3220 3222 95
MP3 Music
3220 3222 90
34
Operating Instructions KBL 7900/KBL 7000/KBL Convertible
Audio switch MP3 Music MP3 megaVoice
Music amplifi er
3220 2858 00

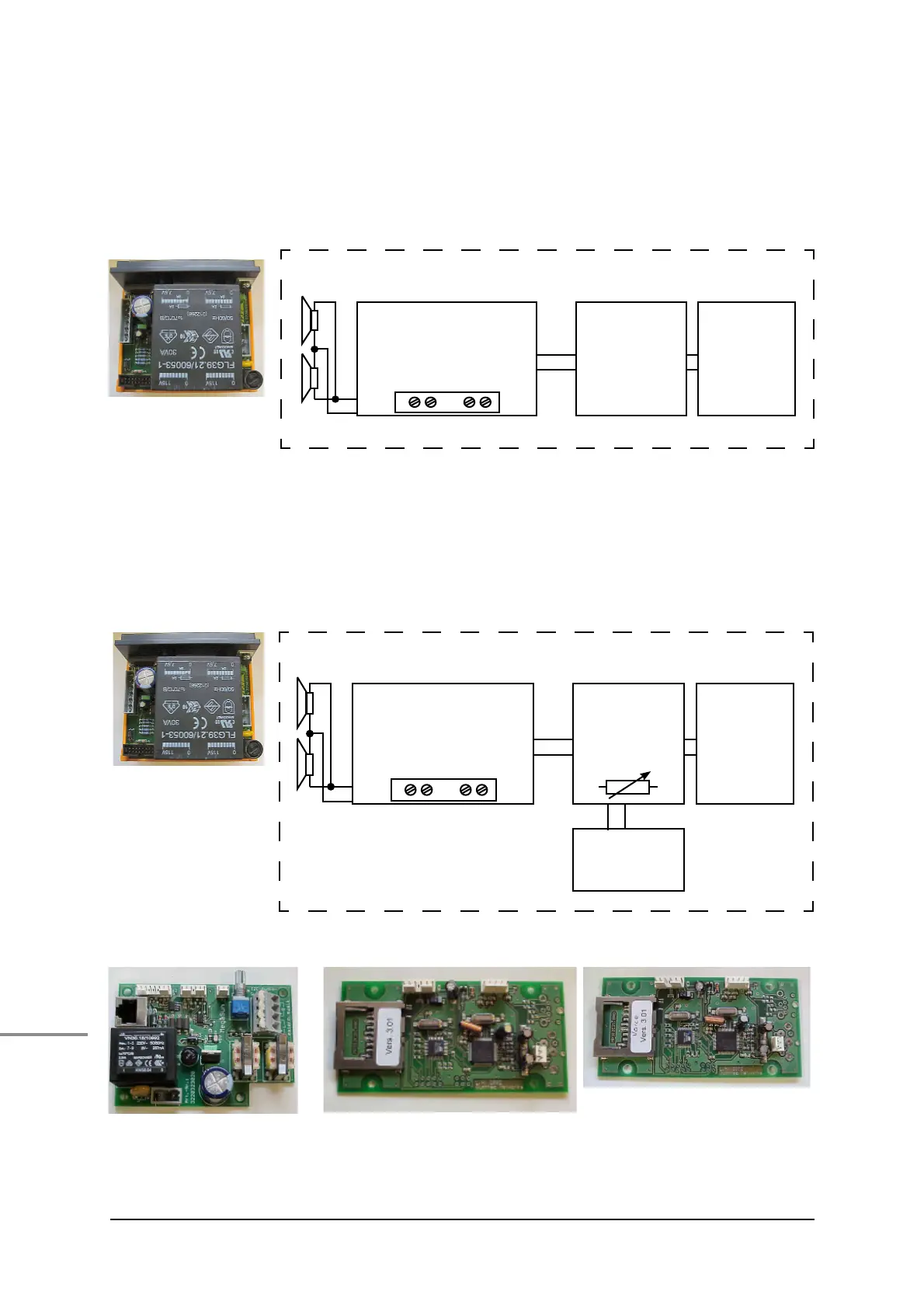

MP3-player and megaVoice are connected to the Audio switch
which leads the music signal to the amplifi er and then to the
loudspeakers (connected in parallel, equal-phased).
7.3 megaVoice without music option
Music amplifi er
3220 2885 00
Via an interface card, the MP3-player megaVoice is connected
to the music amplifi er, which leads to the loudspeakers
(connected in parallel, equal-phased).
7.4 Internal music signal MP3-player
