Operating Instructions KBL 7900/KBL 7000/KBL Convertible
7.8 External Timer (except T-MAX)
Timer Connect the external timer (e.g. coin box, studio control)
according to the instructions supplied with the timer. The
connection is made via the socket for an AMP plug on the back

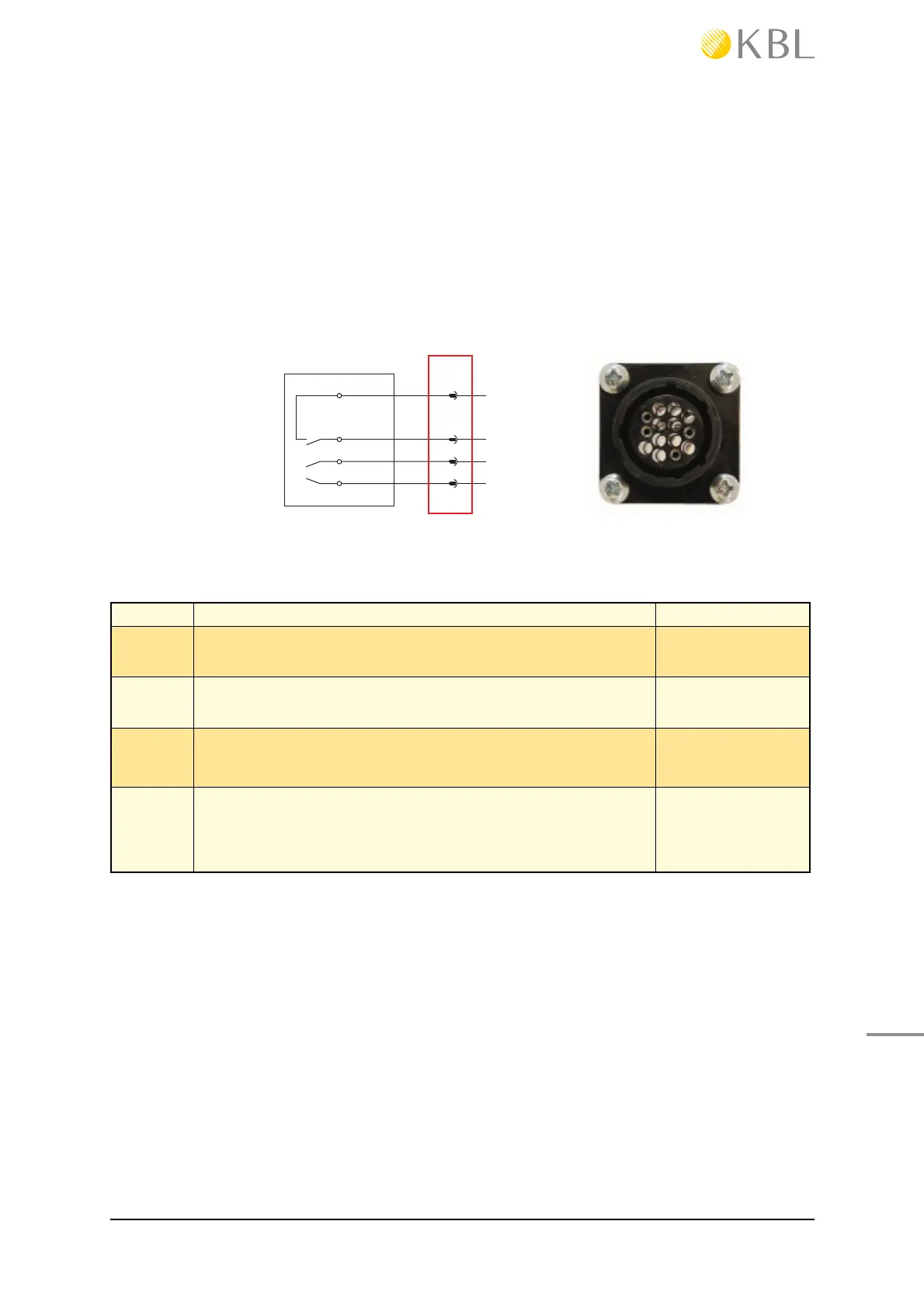

side of the device. The following diagram shows the wiring of the
timer connection.
7.8 Using T-MAX timer
Step Procedure Reference
1
Open the bed completely. The spacer supports for the
board can be found at the inside of the back plane.
Illustr. 7-8-1
2
Attach the board to the spacer supports. Connect the
edge connector and the white plug to the board.
Illustr. 7-8-2
3
Remove X.9 and connect X.9A (located at the right
side of the electronics carriage).
4
Connect the RJ22 cable to the board and guide it
together with the power or RCA jack cable through the
feedthrough in the back.
