KEB COMBIVERT S6 - Turn-Off Time Depending on the Overload at Unit Size 12 and 13; Figure 4: Turn-Off Time Depending on the Overload (OL) at Unit Size 12 and 13

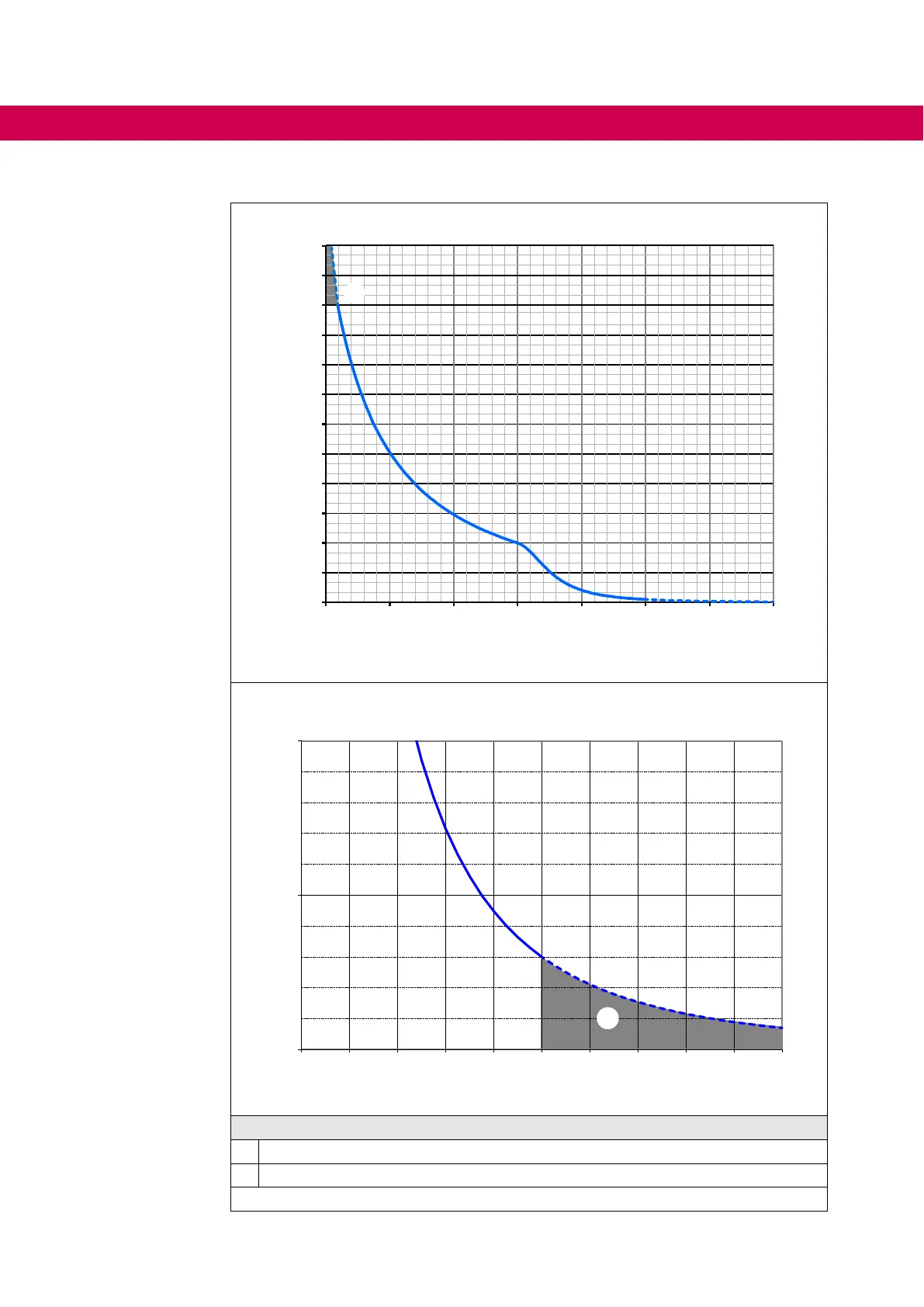

3.3.4.2 Turn-off time depending on the overload at unit size 12 and 13
Release time in s
Overload characteristic (OC Level 300%)
0
30
60
90
120
150
180
210
240
270
300
125 150 175 200 225 250 275 300
400
500
①
Motor current / drive converter rated currrent in %
Release time in s
Detail view in the range from 200 % to 300 %
0
5
10
200 210 220 230 240 250 260 270 280 290 300
②
Motor current / drive converter rated currrent in %
Legend
1 Thermal overload limit
2 Limitation by current controller limit (adjustable via software)
Figure 4: Turn-off time depending on the overload (OL) at unit size 12 and 13
32
UNIT DATA
