BRAKE CONTROL AND TEMPERATURE DETECTION

4.3.5 Connection of PTC, temperature switch or PT1000

Name TA1 (X1C.5); TA2 (X1C.6)

Function Temperature sensor input

Stetting

dr33=1; PTC or temperature switch

dr33=4; PT1000

Table 28: Connection of PTC, temperature switch or PT1000

Thermal contact (NC contact)

TA1

TA2

①

Temperature sensor (PTC) or PT1000

TA1

TA2

①

Mixed sensor chain

TA1

TA2

①

Legend

1 Connection via shield plate (if not available, place on the mounting plate).

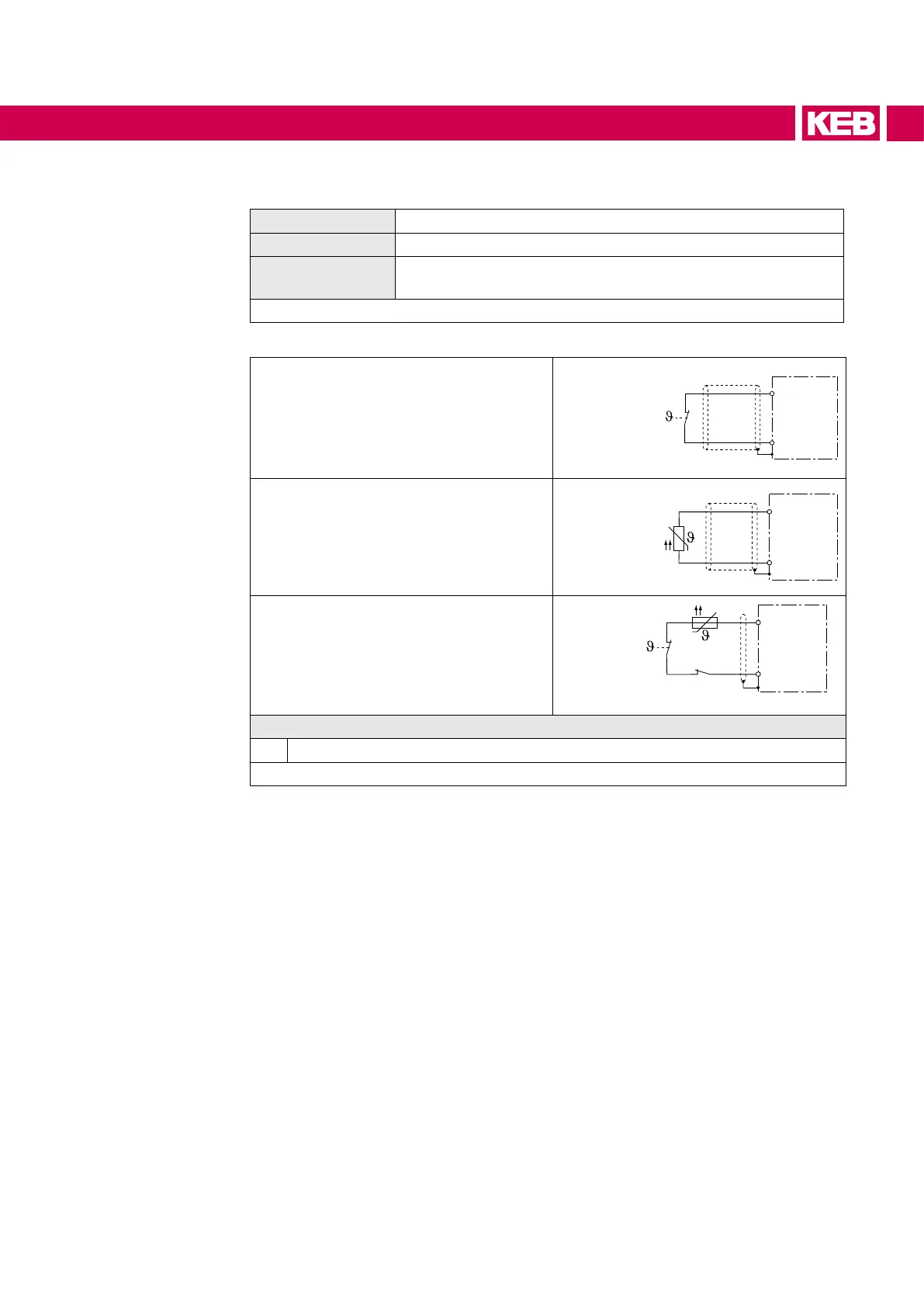

Figure 23: Connection examples of different temperature sensors
