2.2 Before Set Up 2.2

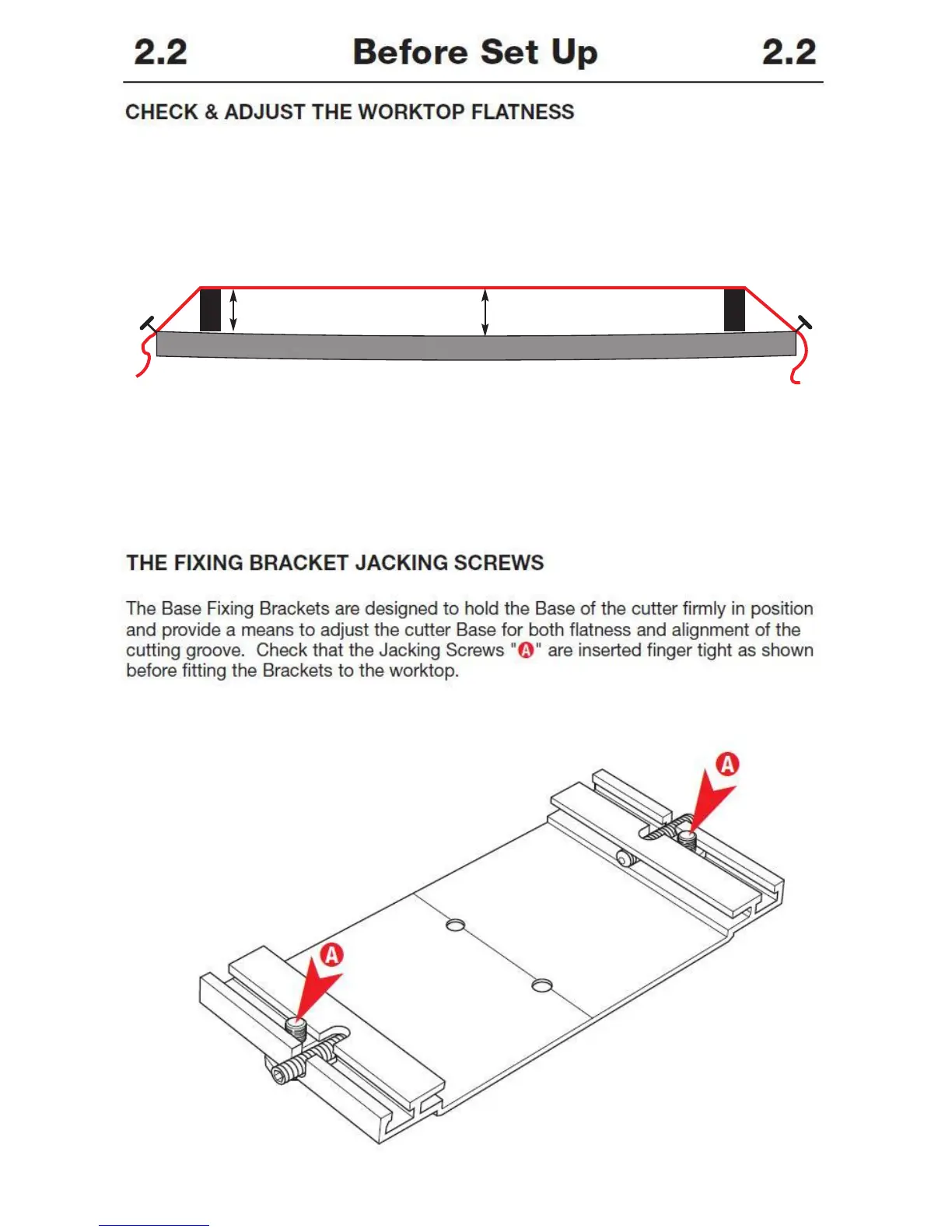

CHECK & ADJUST THE WORKTOP FLATNESS
Check the flatness of the worktop by stretching a thin piece of strong thread between
two blocks (of the same height) approximately over the line. Measure the highest and
lowest part of the worktop under the thread, the difference between the two measure-
ments should be no more than 3mm (1/8"). If it is greater it will be necessary to adjust
the surface flatness with a new top or by using spacing pieces under each bracket.
?mm
?
±
3mm
¸
worktop
§
§
Adjust the surface flatness by adding packing pieces made from 1.5mm - 3mm (1/16" -
1/8") thick rigid material such as PVC Foamboard, under the Base Mounting Brackets as
they are installed (next section).
THE FIXING BRACKET JACKING SCREWS
The Base Fixing Brackets are designed to hold the Base of the cutter firmly in position
and provide a means to adjust the cutter Base for both flatness and alignment of the
cutting groove. Check that the Jacking Screws "
A " are inserted finger tight as shown
before fitting the Brackets to the worktop.
A
A
To Next Page
