3.2 Set Up 3.2

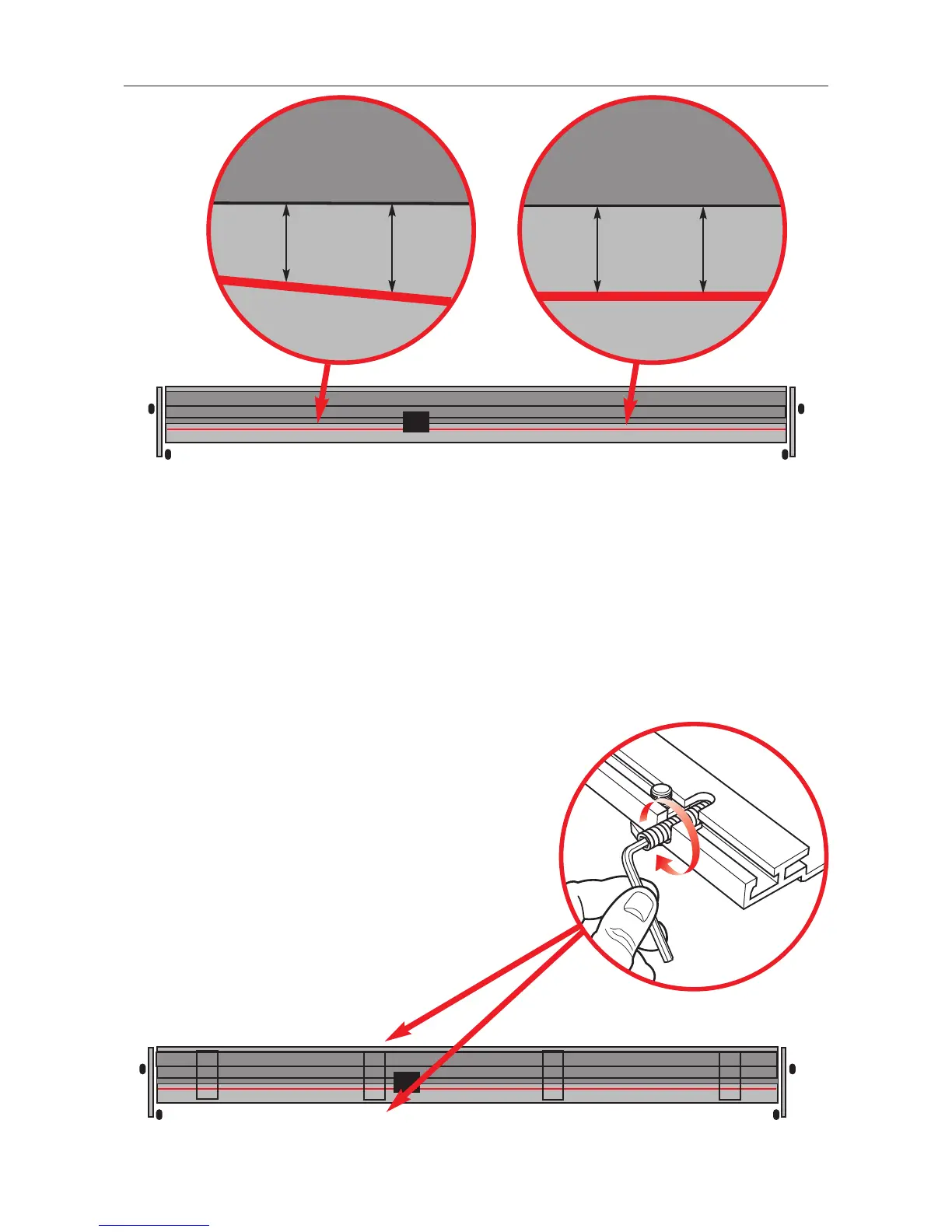

Adjust the straightness of the Base by adjusting the front "A" and rear "B" grub
screws in the Base Fixing Brackets:
To move the cutting groove towards "
Y" loosen the rear grub screw "B" in the nearest
Brackets and tighten the front grub screw "
A" until the groove is aligned with the cutter
bar. Tighten the rear grub screw "
B" until it meets resistance and the Base is held firmly.
Using a Lift handle raise the cutter bar and lower it again to the Base surface and check
the alignment. Adjust the cutting groove finally if required.
To move the cutting groove towards "
X" loosen screw "B" first and
reverse the sequence above.
If there is insufficient Base adjustment using the "
A" and
"
B" screws it is likely that one or more of the Brackets
will need to be removed and realigned on
the bench top.
