KEENCUT Evolution E2 User Manual

3.3 Set Up 3.3

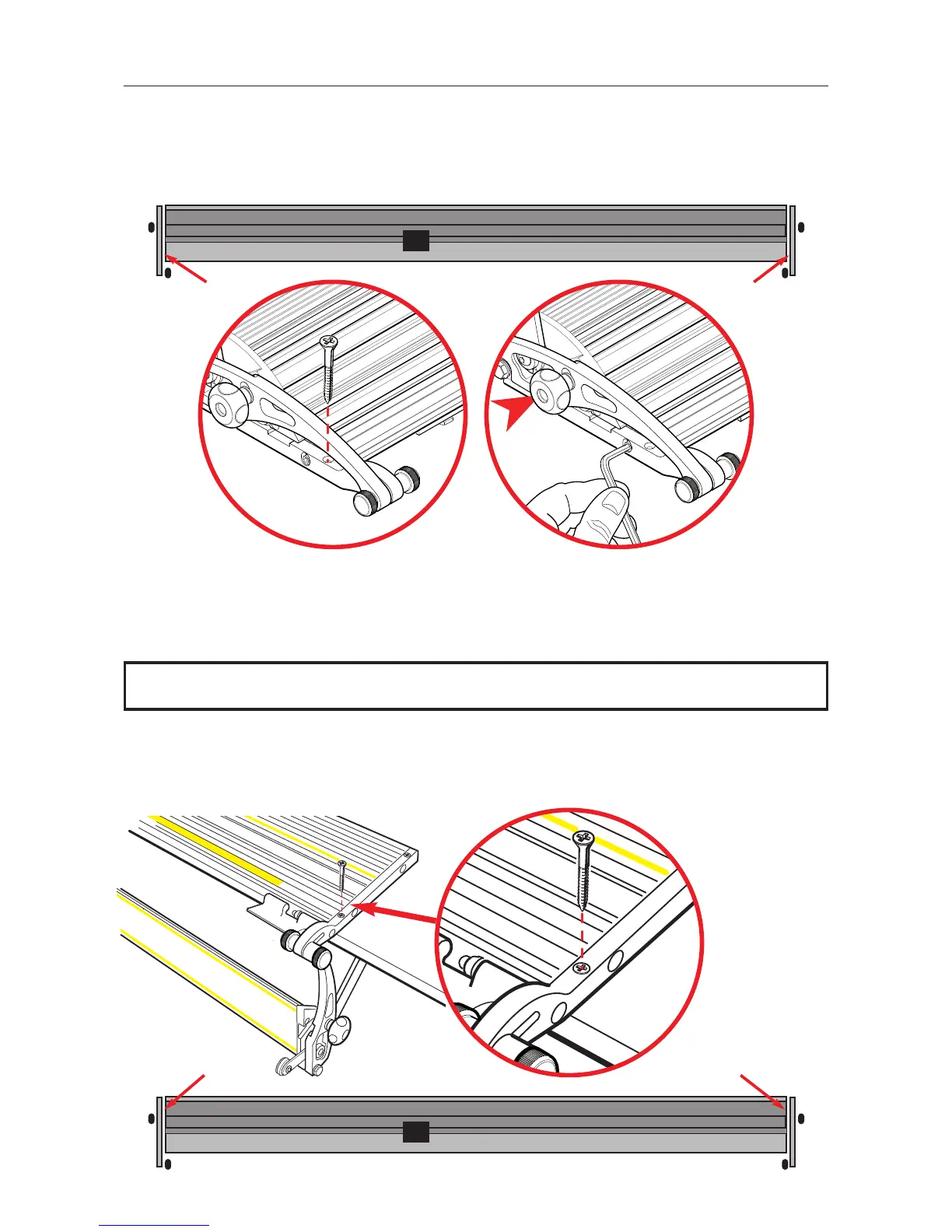

Place two of the long wood screws "A" in the front holes of the Fixed Arms and partially
insert them into the bench surface but do not tighten. Loosen, by one full turn anti-
clockwise, the four hexagon socket screws "
B" joining the Fixed Arms to the Base.
Fully insert the two wood screws "
A".
To enable the table surface to be cleared of the cutter bar when it is required for other
work the whole cutter bar can be lifted and rotated on its hinges towards you so that it
hangs down along the edge of the work bench (this also helps with cleaning).
A
C
A
B
B
B
B
C
A
B
x4
x2
NOTE: Be particularly careful with the longer versions of cutter as they are very heavy.
Carefully swing the cutter bar down and place the remaining two long wood screws "C"
into the back two holes of the Fixed Arms and tighten. Return the cutter bar to its
working position. Tighten all four Allen screws "
B".
C
x2
