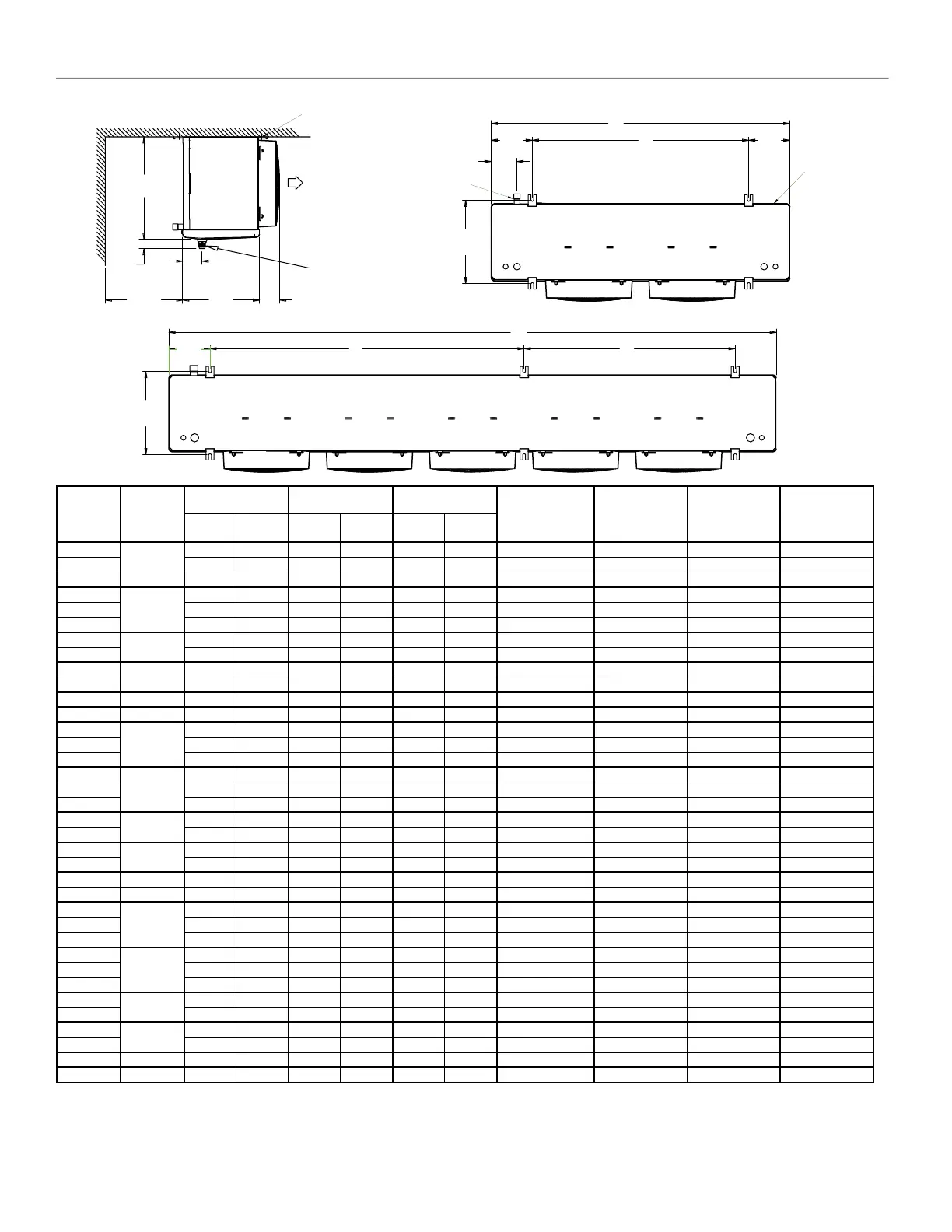

KeepRite KLP Series - Dimensional Data

K30-KLPD-PDI-4
14/10/20
- 22 -
MODEL
KLP
NO. OF
FANS
A B C
SUCTION
CONNECTION (ID)
SWEAT
DISTRIBUTOR
INLET
SIZE
HOT GAS DIS-
TRIBUTOR SIDE
PORT
DRAIN PAN LOOP
IN mm IN mm IN mm
104M^
1
30 1/4 768 17 1/4 438 N/A N/A 5/8 1/2 1/2 N/A
106M^ 30 1/4 768 17 1/4 438 N/A N/A 5/8 1/2 1/2 N/A
107M^ 30 1/4 768 17 1/4 438 N/A N/A 5/8 1/2 1/2 N/A
209M#
2
46 1/4 1175 33 1/4 845 N/A N/A 7/8 1/2 1/2 5/8
211M# 46 1/4 1175 33 1/4 845 N/A N/A 7/8 1/2 1/2 5/8
214M# 46 1/4 1175 33 1/4 845 N/A N/A 7/8 1/2 1/2 5/8
317M#
3
62 1/4 1581 49 1/4 1251 N/A N/A 7/8 1/2 1/2 7/8
320M# 62 1/4 1581 49 1/4 1251 N/A N/A 7/8 1/2 1/2 7/8
422M#
4
78 1/4 1988 32 5/8 829 32 5/8 829 1 1/8 1/2 1/2 7/8
427M# 78 1/4 1988 32 5/8 829 32 5/8 829 1 1/8 1/2 1/2 7/8
534M# 5 94 1/4 2394 32 5/8 829 48 5/8 1235 1 3/8 1/2 1/2 1 1/8
640M# 6 110 1/4 2800 48 5/8 1235 48 5/8 1235 1 3/8 7/8 5/8 1 1/8
104L^
1
30 1/4 768 17 1/4 438 N/A N/A 5/8 1/2 1/2 N/A
105L^ 30 1/4 768 17 1/4 438 N/A N/A 5/8 1/2 1/2 N/A
106L^ 30 1/4 768 17 1/4 438 N/A N/A 5/8 1/2 1/2 N/A
207L#
2
46 1/4 1175 33 1/4 845 N/A N/A 7/8 1/2 1/2 5/8
209L# 46 1/4 1175 33 1/4 845 N/A N/A 7/8 1/2 1/2 5/8
211L# 46 1/4 1175 33 1/4 845 N/A N/A 7/8 1/2 1/2 5/8
314L#
3
62 1/4 1581 49 1/4 1251 N/A N/A 7/8 1/2 1/2 7/8
316L# 62 1/4 1581 49 1/4 1251 N/A N/A 1 1/8 1/2 1/2 7/8
418L#
4
78 1/4 1988 32 5/8 829 32 5/8 829 1 1/8 1/2 1/2 7/8
421L# 78 1/4 1988 32 5/8 829 32 5/8 829 1 1/8 7/8 5/8 7/8
526L# 5 94 1/4 2394 32 5/8 829 48 5/8 1235 1 3/8 7/8 5/8 1 1/8
631L# 6 110 1/4 2800 48 5/8 1235 48 5/8 1235 1 3/8 7/8 5/8 1 1/8
103V^
1
30 1/4 768 17 1/4 438 N/A N/A 5/8 1/2 1/2 N/A
104V^ 30 1/4 768 17 1/4 438 N/A N/A 5/8 1/2 1/2 N/A
106V^ 30 1/4 768 17 1/4 438 N/A N/A 5/8 1/2 1/2 N/A
207V#
2
46 1/4 1175 33 1/4 845 N/A N/A 7/8 1/2 1/2 5/8
208V# 46 1/4 1175 33 1/4 845 N/A N/A 7/8 1/2 1/2 5/8
211V# 46 1/4 1175 33 1/4 845 N/A N/A 7/8 1/2 1/2 5/8
313V#
3
62 1/4 1581 49 1/4 1251 N/A N/A 7/8 1/2 1/2 7/8
316V# 62 1/4 1581 49 1/4 1251 N/A N/A 1 1/8 1/2 1/2 7/8
418V#
4
78 1/4 1988 32 5/8 829 32 5/8 829 1 1/8 1/2 1/2 7/8
421V# 78 1/4 1988 32 5/8 829 32 5/8 829 1 1/8 7/8 5/8 7/8
524V# 5 94 1/4 2394 32 5/8 829 48 5/8 1235 1 3/8 7/8 5/8 1 1/8
627V# 6 110 1/4 2800 48 5/8 1235 48 5/8 1235 1 3/8 7/8 5/8 1 1/8
# = A, E, T, H, G, or R. ^ = A or E. T, H, G or R available in 2 to 6 fan models only Refer to Nomenclature for details
.438 SLOTS IN
MOUNTING BRACKETS
AIR THROW
APPROX 35'
IN OPEN
SPACE
12
MINIMUM
11 7/83 1/8
3
[305][302] [79]
[76]
[403]
15 7/8
[35]
1 3/8
3/4 MPT / 3/4 FLARE
DRAIN CONNECTION
4, 5 AND 6 FAN
MODELS.
6 1/2
C
A
B
[165]
MTG SLOTS
13 7/16
[341]
(TOP VIEW)
REFRIGERATION
CONNECTIONS.
SUCTION & LIQUID.
ELECTRICAL
CONNECTIONS.
A
B
13 7/16
MTG SLOTS
[165]
[165]
6 1/26 1/2
4
TYP
[102]
[341]
1, 2 AND 3 FAN
MODELS.
(TOP VIEW)
DIMENSIONAL DATA / SPECIFICATIONS KLP - LOW PROFILE EVAPORATORS
