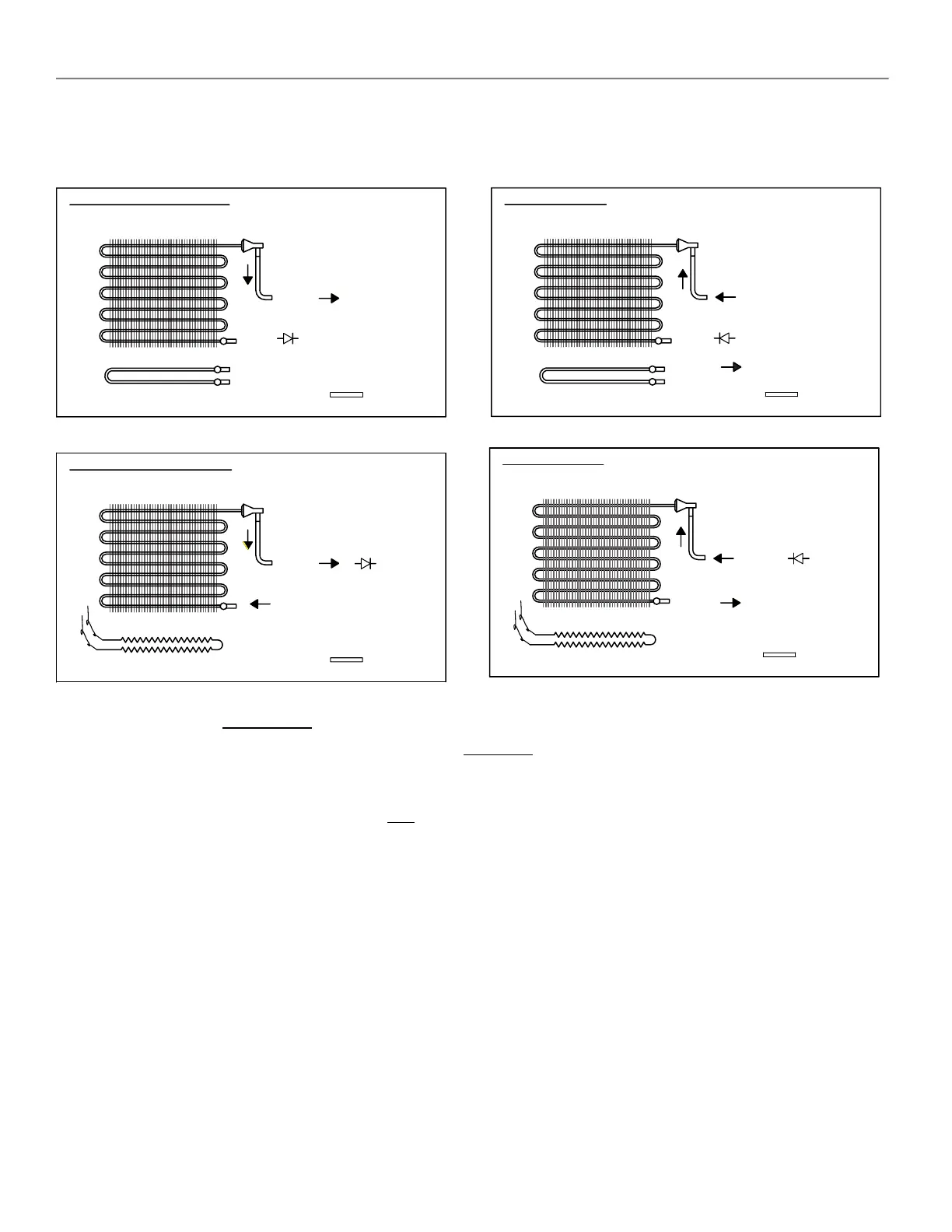

KeepRite KLP Series - HOT GAS PIPING SCHEMATICS; Hot Gas Piping: Standard Configurations

K30-KLPD-PDI-4
14/10/20
- 32 -
WITH HOT GAS DRAIN PAN LOOP
WITH CHECK VALVE LOOSE
HOT GAS
LEAVING
DEFROST LOOP
HOT GAS DRAIN PAN
VALVE
CHECK
REVERSE CYCLE DEFROST
EVAPORATOR COIL
DISTRIBUTOR
STD-R
FACTORY PIPING
HOT GAS
ENTERING
LEAVING
HOT GAS
WITH CHECK VALVE LOOSE
REVERSE CYCLE DEFROST
ELECTRIC DRAIN PAN HEATER
EVAPORATOR COIL
DISTRIBUTOR
STD-G
FACTORY PIPING
CHECK
VALVE
WITH DRAIN PAN HEATER
WITH CHECK VALVE LOOSE
WITH HOT GAS DRAIN PAN LOOP
STD-H
DEFROST LOOP
HOT GAS DRAIN PAN
HOT GAS
LEAVING
VALVE
CHECK
EVAPORATOR COIL
3-PIPE DEFROST
DISTRIBUTOR
FACTORY PIPING
ENTERING
HOT GAS
WITH CHECK VALVE LOOSE
VALVE
CHECK
STD-T
EVAPORATOR COIL
ELECTRIC DRAIN PAN HEATER
3-PIPE DEFROST
ENTERING
HOT GAS
DISTRIBUTOR
LEAVING
HOT GAS
FACTORY PIPING
WITH DRAIN PAN HEATER
Standard Offering: All Models
Check Valve is included with the coil shipped loose as it is a must have component for system operation.
Check Valve & TXV - See next page (OPT 1)
When a TXV is ordered with a HG defrost coil: Its only option will be Factory Installed. The bypass check valve will be
factory installed as well as part of the same option.
• Reverse Cycle Pan Heater (G Models) when ordered with TXV & Check Valve:
o TXV, Check Valve and bypass Tee are factory installed
• Reverse Cycle Pan Loop (R Models) when ordered with TXV & Check Valve:
o TXV, Check Valve and bypass Tee are factory installed
• 3-Pipe Pan Heater (T Models) when ordered with TXV & Check Valve:
o TXV and Check Valve are factory installed
• 3-Pipe Pan Loop (H Models) when ordered with TXV & Check Valve:
o TXV and Check Valve are factory installed
HOT GAS PIPING SCHEMATICS KLP - LOW PROFILE EVAPORATORS
Standard Congurations - Refer to Nomenclature for details
