4 Installation
KR-RM Series(1～3kVA) UPS
User Manual
18
All rights reserved ©Xiamen Kehua Hengsheng Co., Ltd.
4.5.1 KR1000-RM

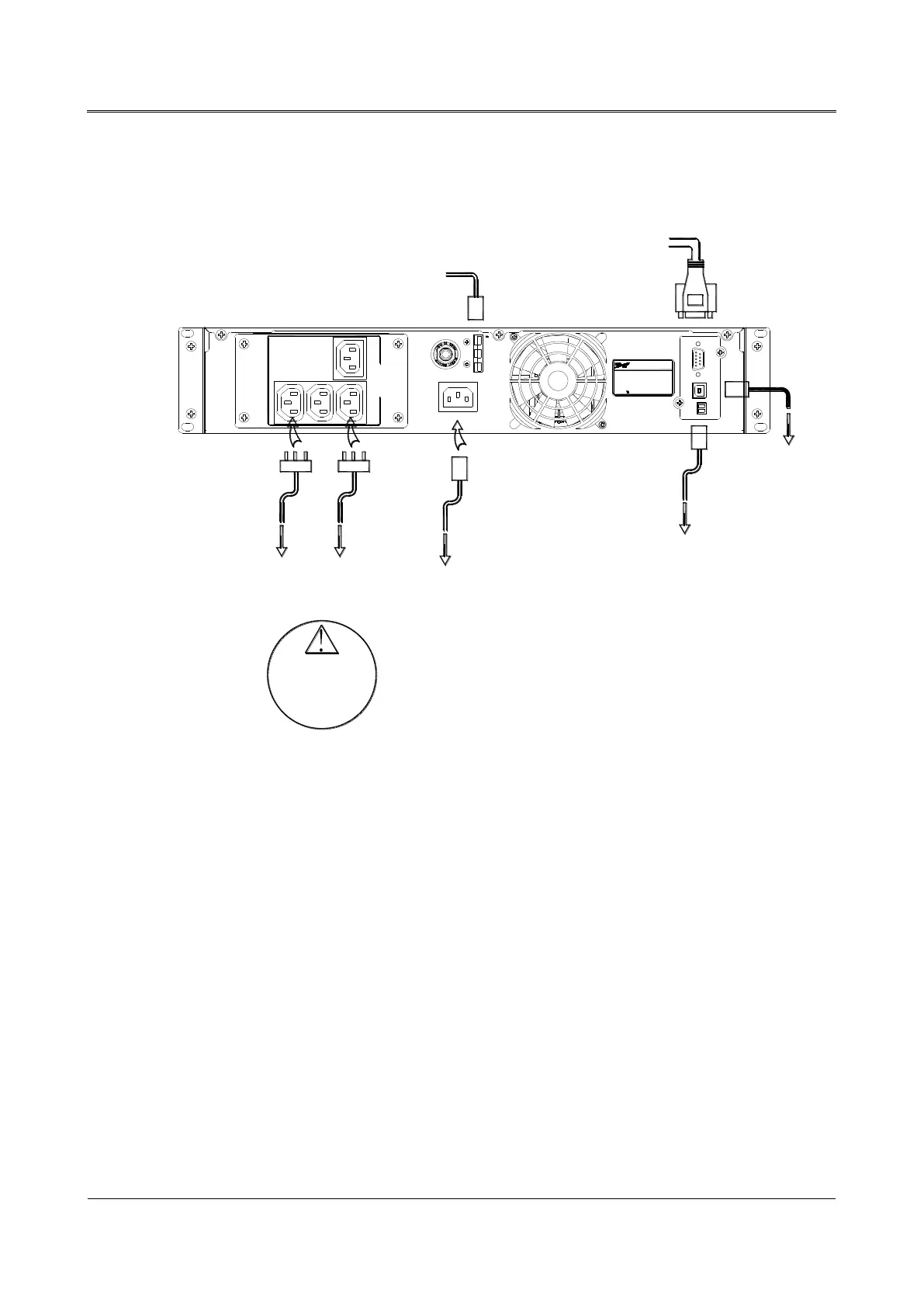

The wiring for the input and output of KR1000-RM is as shown in Figure4-2.
Upper communication
device
USB port
Connect
with EPO
Connect
with mains
Connect output
sockets with loads
Output sockets
share load
RS232 USB EPO
CIRCUIT PROTECTOR
250V,10A
AC INPUT
AC OUTPUT
10A Max.
DC INPUT
+
PRODUCED BY: ZHANGZHOU KEHUA TECHNOLOGY
CO.,LTD. (CHINA)
NAME：UPS
MODEL：
INPUT：
OUTPUT：
DC INPUT：
1W+N+PE,AC220V,50Hz,4.8A
1W+N+PE,AC220V,50Hz,4.5A
1000VA/900W
KR1000-RM
36V,29.1A
Extended battery
cabinet
Figure4-2 Wiring diagram of KR1000-RM
4.5.2 KR2000-RM
The wiring for the input and output of KR2000-RM is as shown in Figure4-3.
