KEHUA TECH KR2000-RM - 4.5.3 KR3000-RM

KR-RM Series(1～3kVA) UPS
User Manual
4 Installation
All rights reserved ©Xiamen Kehua Hengsheng Co., Ltd.
19
Connect output
sockets with loads
!
Output sockets
share load
Connect
with mains
Upper communication device
USB port
Connect
with EPO
AC INPUT
CIRCUIT PROTECTOR
250V,16A
DC INPUT
RS232 USB EPO
AC OUTPUT
220V 9.1A TOTAL
PRODUCED BY: ZHANGZHOU KEHUA TECHNOLOGY
CO.,LTD. (CHINA)
NAME：UPS
MODEL：
INPUT：
OUTPUT：
DC INPUT：
1W+N+PE,AC220V,50Hz,9.2A
1W+N+PE,AC220V,50Hz,9.1A
2000VA/1800W
KR2000-RM
48V,42.6A
+
Extended battery
cabinet

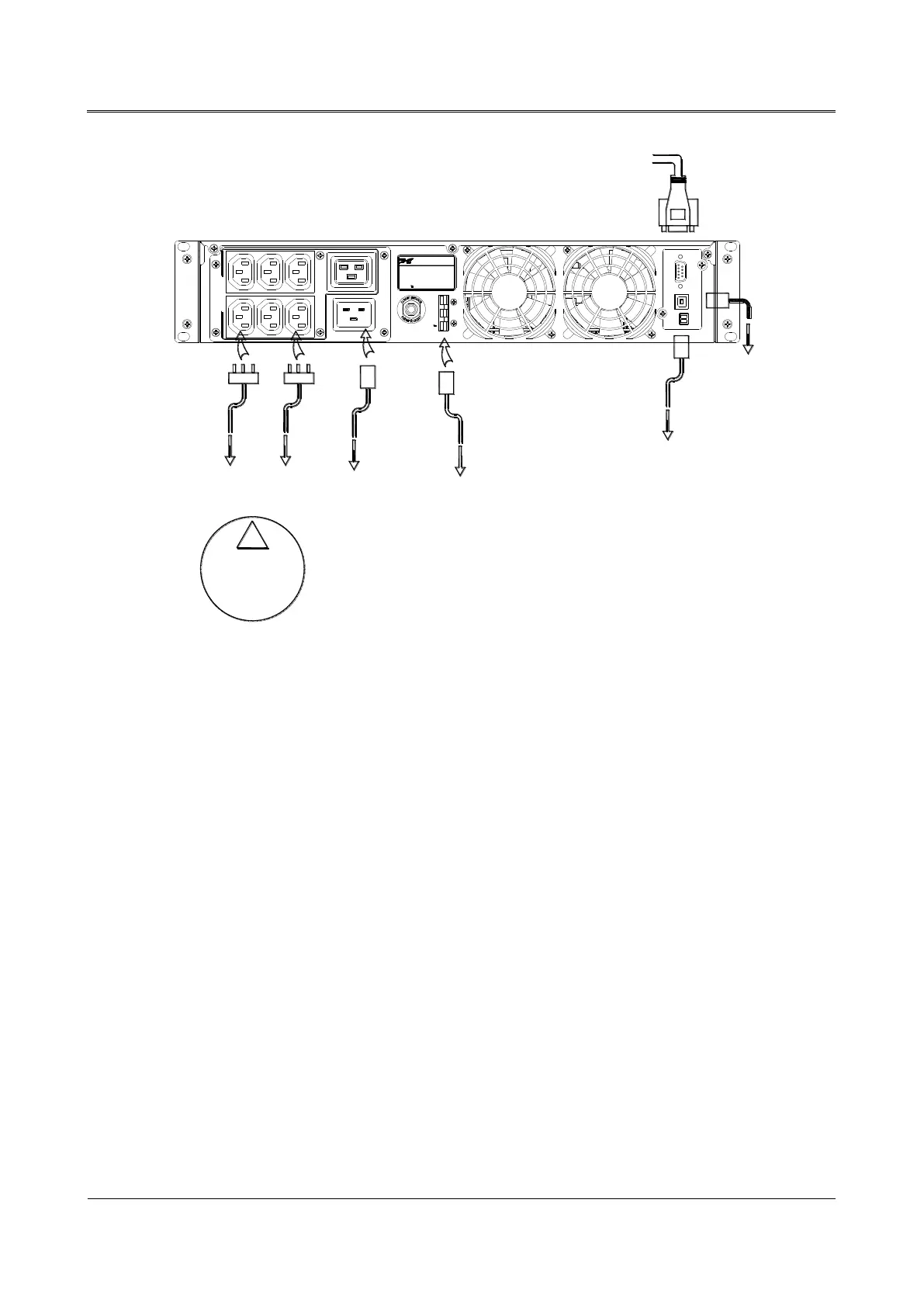

Figure4-3 Wiring diagram of KR2000-RM
4.5.3 KR3000-RM
The wiring for the input and output of KR3000-RM is as shown in Figure4-4.
