M5i | M5 STRIDER ELLIPTICAL
06

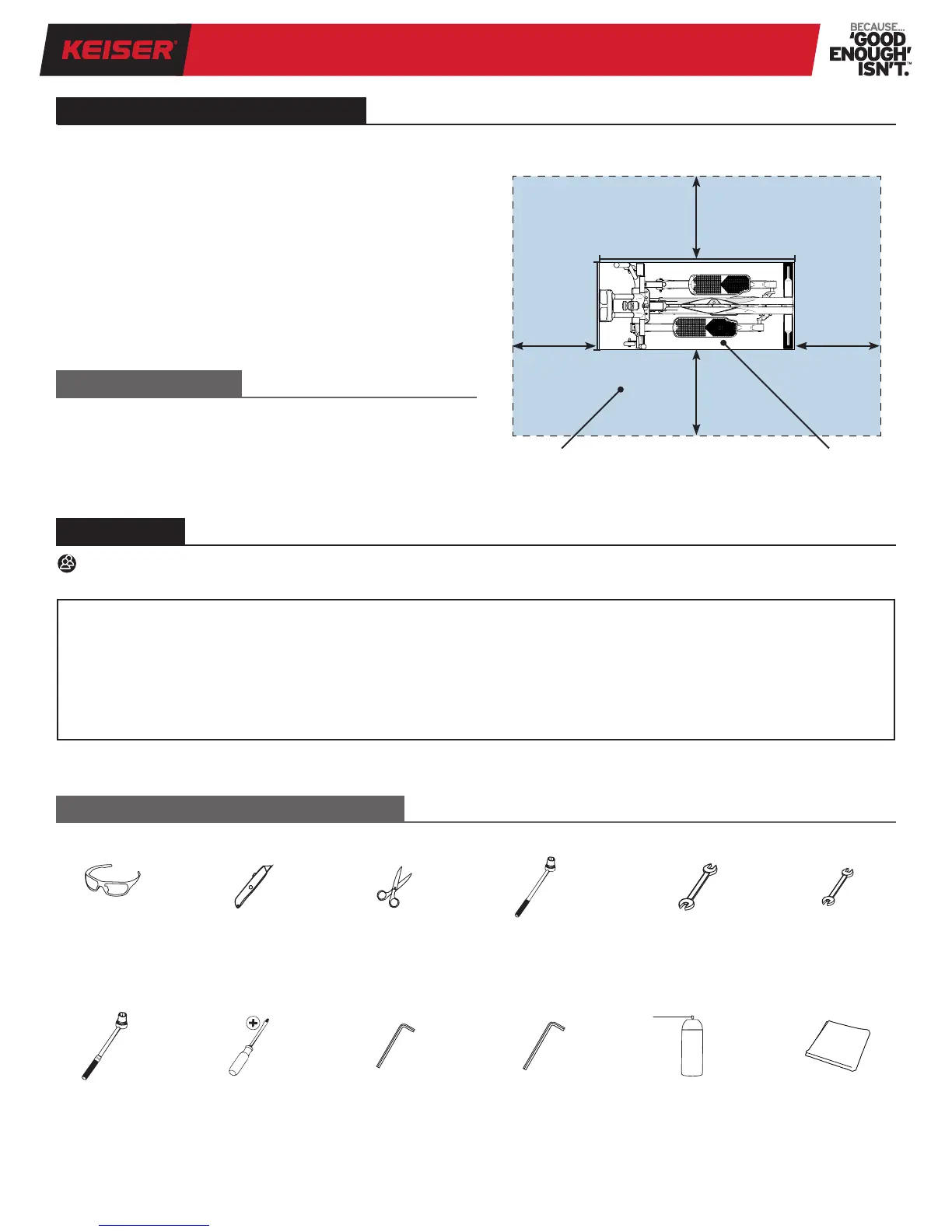

Figure 1. Training Space Illustration
(M5i shown, M5 similar)
The minimum amount of free area space around the Strider
Elliptical is 24 inches (610 mm) on all sides (refer to Figure 1).
When Strider Elliptical equipment are positioned adjacent to
each other, the free area may be shared.
Height: 64 in (1,626 mm)
Length: 51 in (1,295 mm)
Length without Media Tray: 49 in (1,245 mm)
Width: 23 in (584 mm)
Weight: 127 lbs (58 kg)
Weight without Media Tray: 126 lbs (57 kg)
Stride length: 13.5 inches (343 mm)
User weight limit: 350 lbs (159 kg)
User height range: 58–82 in (1473–2083 mm)
EQUIPMENT SPECIFICATIONS
ASSEMBLY
TRAINING SPACE
TOOLS AND MATERIALS REQUIRED
51 in
(1,295 mm)
24 in
(610 mm)
24 in
(610 mm)
24 in
(610 mm)
24 in
(610 mm)
23 in
(584 mm)
FREE AREA TRAINING AREA
Safety Glasses
#2 Phillips
Screwdriver
6 mm
Allen Wrench
5 mm
Allen Wrench
Clean ClothLPS 3
®
Rust Inhibitor or
WD-40
®
Long-Term
Corrosion Inhibitor
Safety Box Cutter Scissors 13 mm Socket
and Ratchet
13 mm
Wrench
11 mm
Wrench
Torque Wrench
(13 Nm/10 ft-lb –
23 Nm/ 17 ft-lb)
NOTE: Keiser Corporation is not responsible for damage or injury caused by incorrect installation, assembly or use.
• Remove the packing materials in the order listed in the
“Unpacking” section (page 8).
• Place all parts in a cleared area and check for any damage
or missing parts.
• Left-hand side parts are marked “L” or “Left” and right-
hand side parts are marked “R” or “Right.”
• To avoid damaging parts, do not use power tools.
• Substitution or modication of any part or component,
other than what is provided by Keiser, will void your
warranty.
• Keep the packing materials until you nish all assembly
steps.
TWO-PERSON PROCEDURE: Due to the size and weight of the equipment, assembly requires two persons to safely
and successfully complete installation.
To Next Page
