Keiser M3I - MOUNTING THE CYCLE TO THE BASE; INSTALLING THE FLYWHEEL AND HUBCAP

p07.
M3i INDOOR GROUP CYCLE
NOTE: Due to the weight of the cycle, it is recommended that two
people perform this part of the assembly.
1. Align the holes of the cycle with the studs of the base,
refer to Figure 1. The front of the cycle should face the
wheels of the base.
2. Place the cycle onto the base.
3. Insert a washer (supplied) on each of the four studs.
4. Install an acorn nut (supplied) on each stud and then
hand tighten the acorn nuts.
5. Torque the acorn nuts to 45 Nm (35 ft-lbs) using a 16 mm
or 5/8” crowfoot attached to a torque wrench.
1. Place the shifter lever in the downward position, refer
to Figure 2.
2. Slide the ywheel between the two magnets and over
the hub, refer to Figure 3.
MOUNTING THE CYCLE TO THE BASE
INSTALLING THE FLYWHEEL AND HUBCAP
WARNING: Failure to follow these instructions may cause damage to the ywheel.

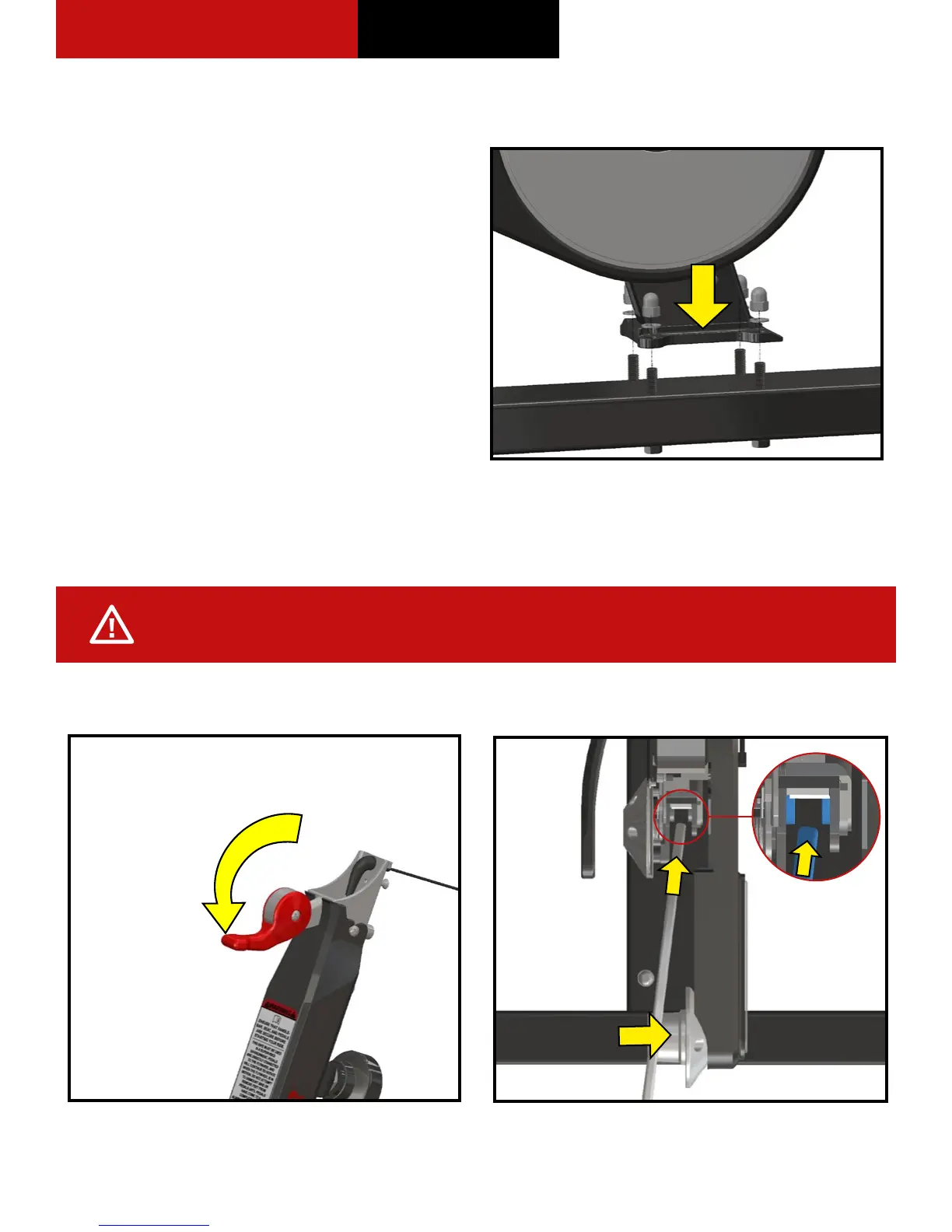

Figure 1. Cycle and Base Alignment
Figure 3. Location of MagnetsFigure 2. Shifter Lever Position
