Explore
Home screen overview
The Home screen is the rst screen that opens on power up.
You can always return to the Home screen by pressing the
HOME key.

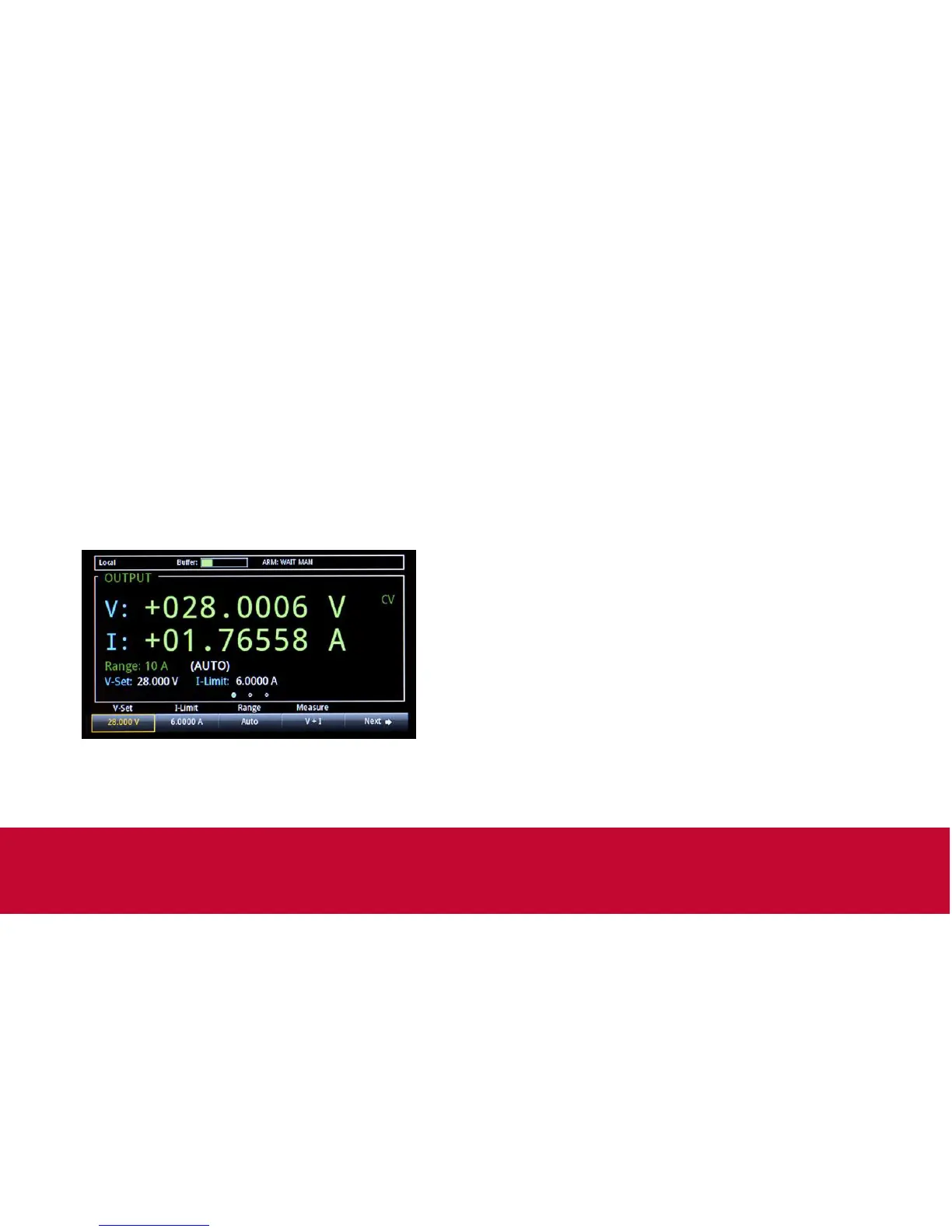

Home screen for the power supply function
The above gure shows the home screen for the power
supply function. You can enter this screen by choosing the
power supply function on the startup screen.
The top row on the Home screen displays the status and
event indicators. You can select these options to open dialog
boxes that provide additional information about the status or
event.
The OUTPUT view area of the Home screen displays the
value of the present outputs and status indicators. The
outputs show dashed lines until the output is turned on.
The settings area of the Home screen is in the lower left
corner of the OUTPUT view area. It shows the presently set
measure range, voltage, and current limit.
The soft-key area is on the bottom of the Home screen. It
shows the present setting values. You can change these
values by pressing the buttons below the screen. Select
Next to view additional soft-key area options.
