Battery simulation test
The following example demonstrates simulating a battery
with Model 2281S-20-6.
This example shows how to use a 2281S to replace a real
battery so you can power your device and test the device in
dierent battery states more eciently.
Equipment required:
• One 2281S battery simulator
• A cell phone supplied by a battery
• Wires

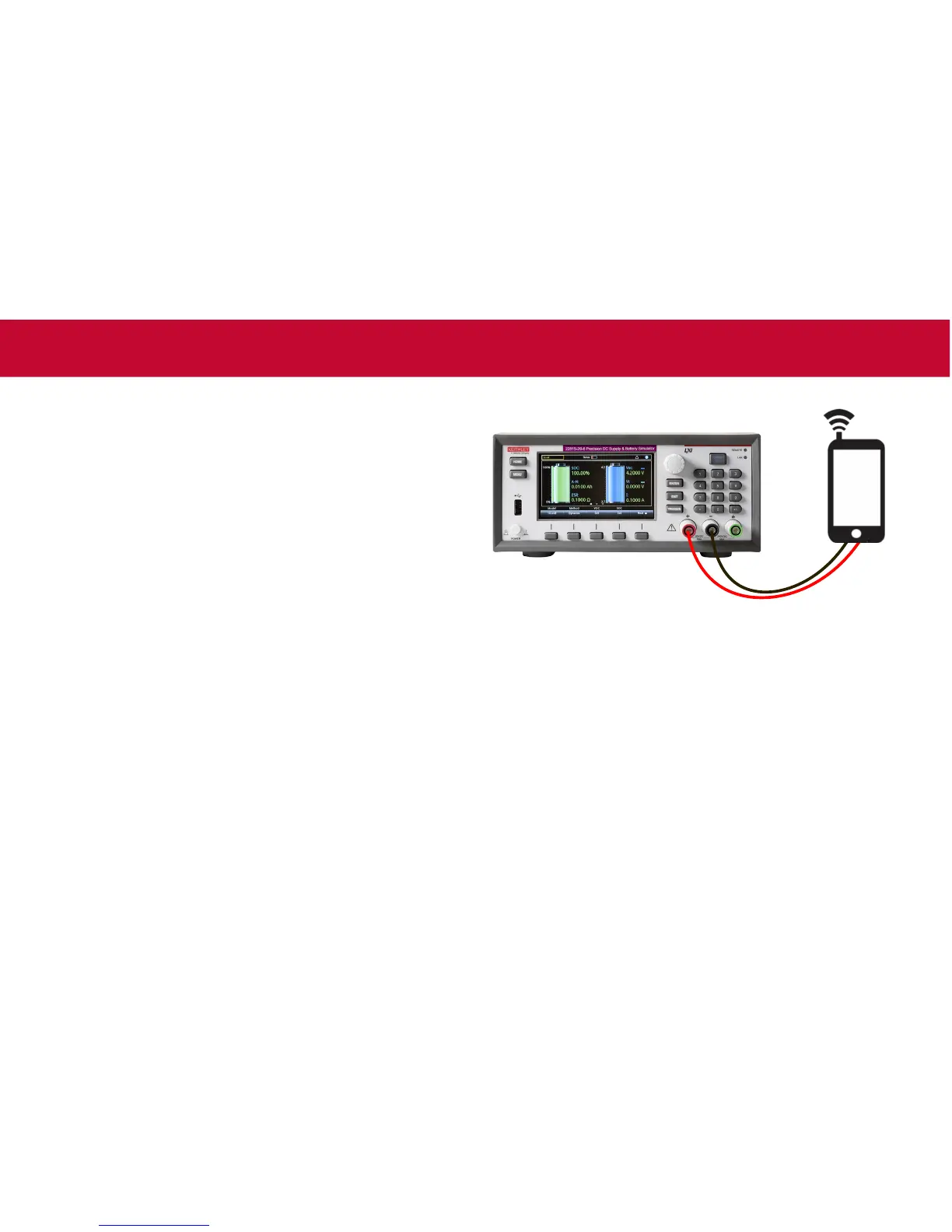

The device under test and the 2281S-20-6 can be connected
using a two-wire sense connection, as shown in the
following gure. However, the four-wire sense connection is
recommended because it will cancel out the wire resistance.
