Step 3: Set measurement function and range
1. Press the MEAS key as many times as needed to select

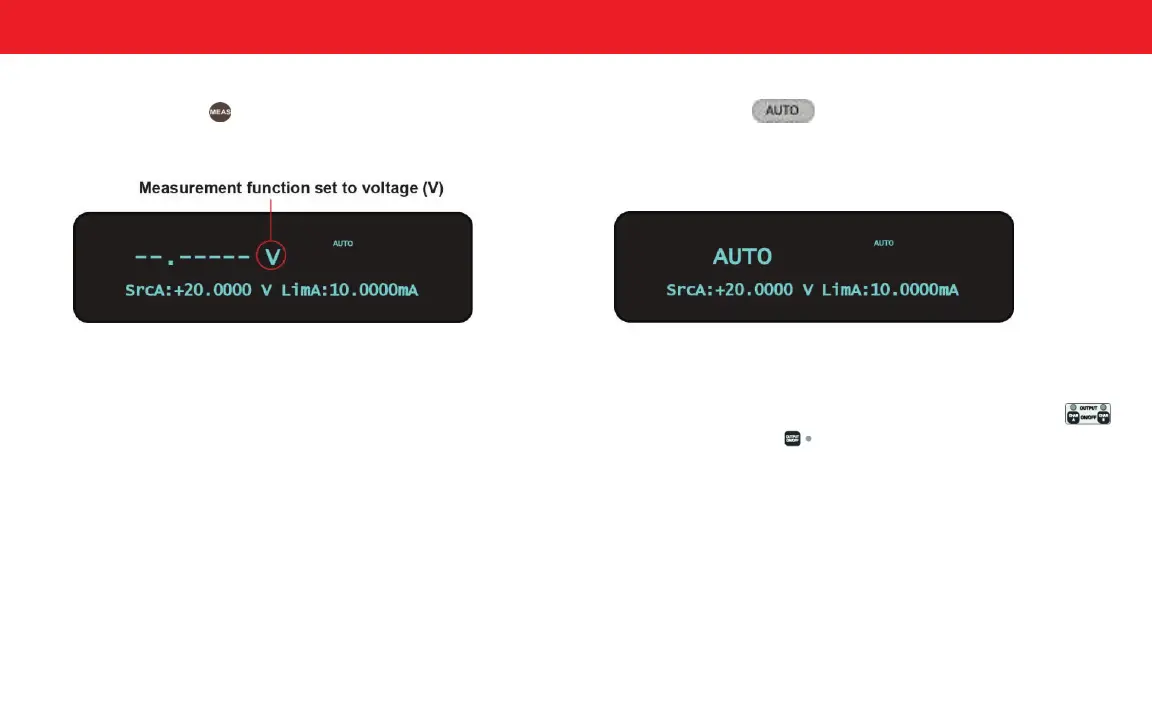

the V (voltage) measurement function. In the following gure,
the measurement function has been set to “V.”
2. Press the AUTO key as many times as needed to
select the AUTO range function. When AUTO is selected,
the Series 2600B automatically selects the best range for the
measured value. You will briey see the display, shown below,
and then the main display screen reappears.
Step 4: Turn the output on
Turn the output on by pressing the OUTPUT ON/OFF control
(for 2612B and 2614B) or (2611B). The ON/OFF indicator LED
lights and measurements begin.
Step 5: Observe measurements
Observe the measured voltage on the main area of front panel
display. The readings should be very close to the 20 V source
value.
