Input characteristics:
• All rising edges are input triggers.
• When all external drives release the physical line, the rising edge is detected as an input trigger.
• A rising edge is not detected until all external drives release the line and the line floats high.

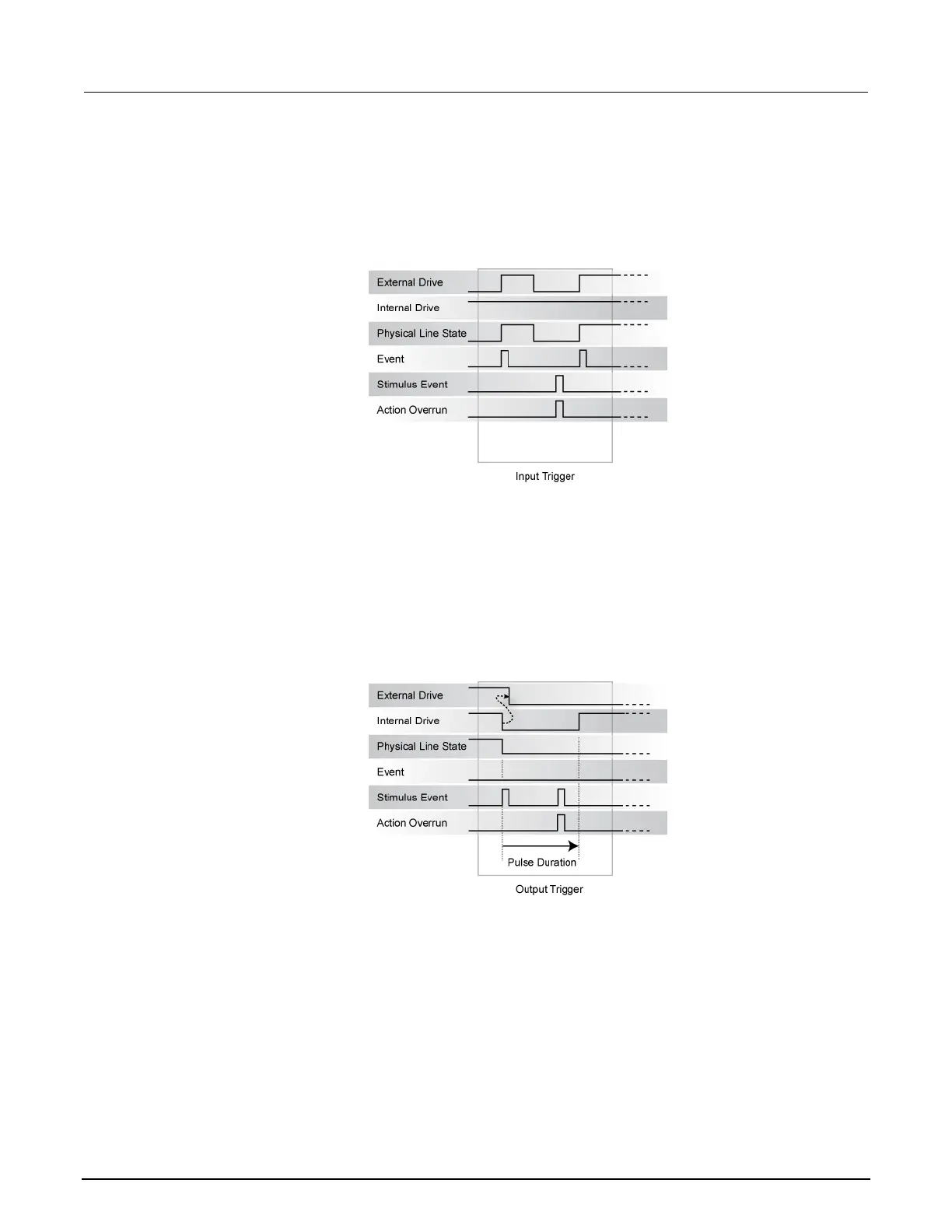

Figure 92: Synchronous master input trigger
Output characteristics:
• In addition to trigger events from other trigger objects, the digio.trigger[N].assert() and
tsplink.trigger[N].assert() functions generate a low pulse that is similar to the falling
edge trigger mode.
• An action overrun occurs if the physical line state is low while a stimulus event occurs.
• When the trigger is asserted, it generates a low pulse that is similar to the Falling Edge trigger
mode
Figure 93: Synchronous master output trigger

Keithley 3700A Series Specifications

General

Model	3700A Series
Category	Multimeter
Measurement Functions	DC Voltage, AC Voltage, DC Current, AC Current, Temperature, Capacitance
DC Voltage Accuracy	±0.0035% of reading
Temperature Measurement	Thermocouple, RTD, Thermistor
Temperature Range	Varies with sensor type
Frequency Range	3 Hz to 500 kHz
Capacitance Range	10 pF to 100 µF
Interface	LAN, USB, GPIB
Power Supply	100 V to 240 V, 50 Hz to 60 Hz
