Series 3700 Screw Terminal Installation Instructions
8 PA-955 Rev. E / April 2010
Screw terminal assembly installation and removal instructions
The following figures show how to connect a Series 3700 screw terminal assembly to the Series 3700 System
Switch / Multimeter and installed Series 3700 cards.
WARNING Before using a screw terminal assembly with an installed Series 3700 card,
verify that the card is properly installed in the Series 3700 mainframe, and the
mounting screws are tightly fastened. If the mounting screws are not properly
connected, an electrical shock hazard may be present.
NOTE For Series 3700 card installation instructions, refer to the Series 3700 Quick
Start Guide (part number 3700S-903-01), located on the Product Information
CD-ROM that came with your Series 3700 product.
To install a Series 3700 screw terminal assembly:
1. Remove the top cover of the screw terminal assembly (see Figure 9):
a.
Loosen the slotted captive screws on the top cover.
b. Slide the top cover away from the retaining tab.

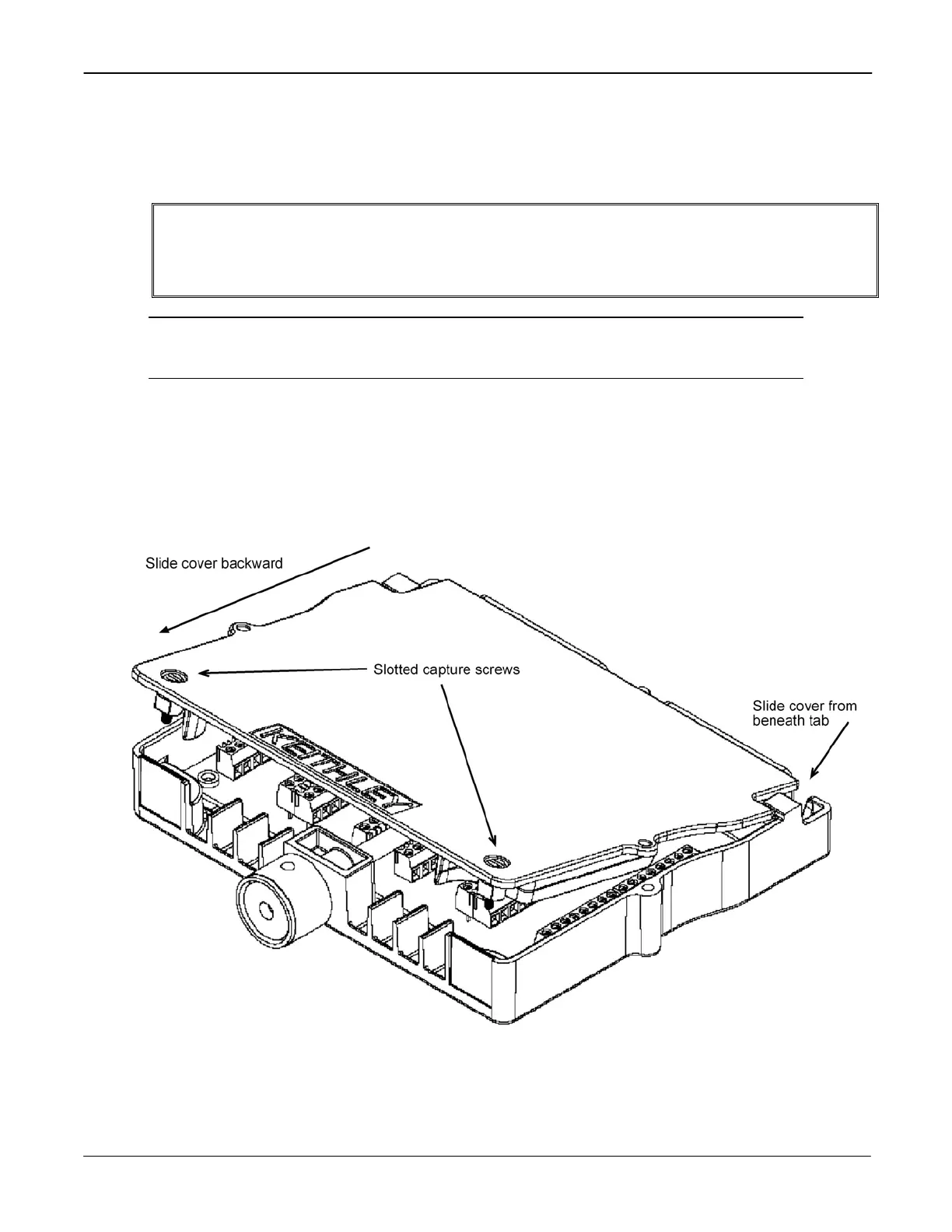

Figure 9: Removing the screw terminal assembly top cover
