16-10 Calibration Series 2600 System SourceMeters Reference Manual
2600S-901-01 Rev. A / May 2006 Return to Section 16 topics
Step 2. Voltage Calibration
1. Connect the Series 2600 to the digital multimeter using the 4-wire
connections shown in
Figure 16-1, and select the multimeter DC volts
function.
2. Send the following commands in order to initialize voltage calibration:
smua.cal.unlock("KI002602")
smua.reset()
smua.source.func = smua.OUTPUT_DCVOLTS
(Substitute the actual calibration password in the smua.cal.unlock
command. The default Model 2601 password is "KI002601"; the default
Model 2602 password is "KI002602". The default Model 2611 password is
"KI002611"; the default Model 2612 password is "KI002612".)

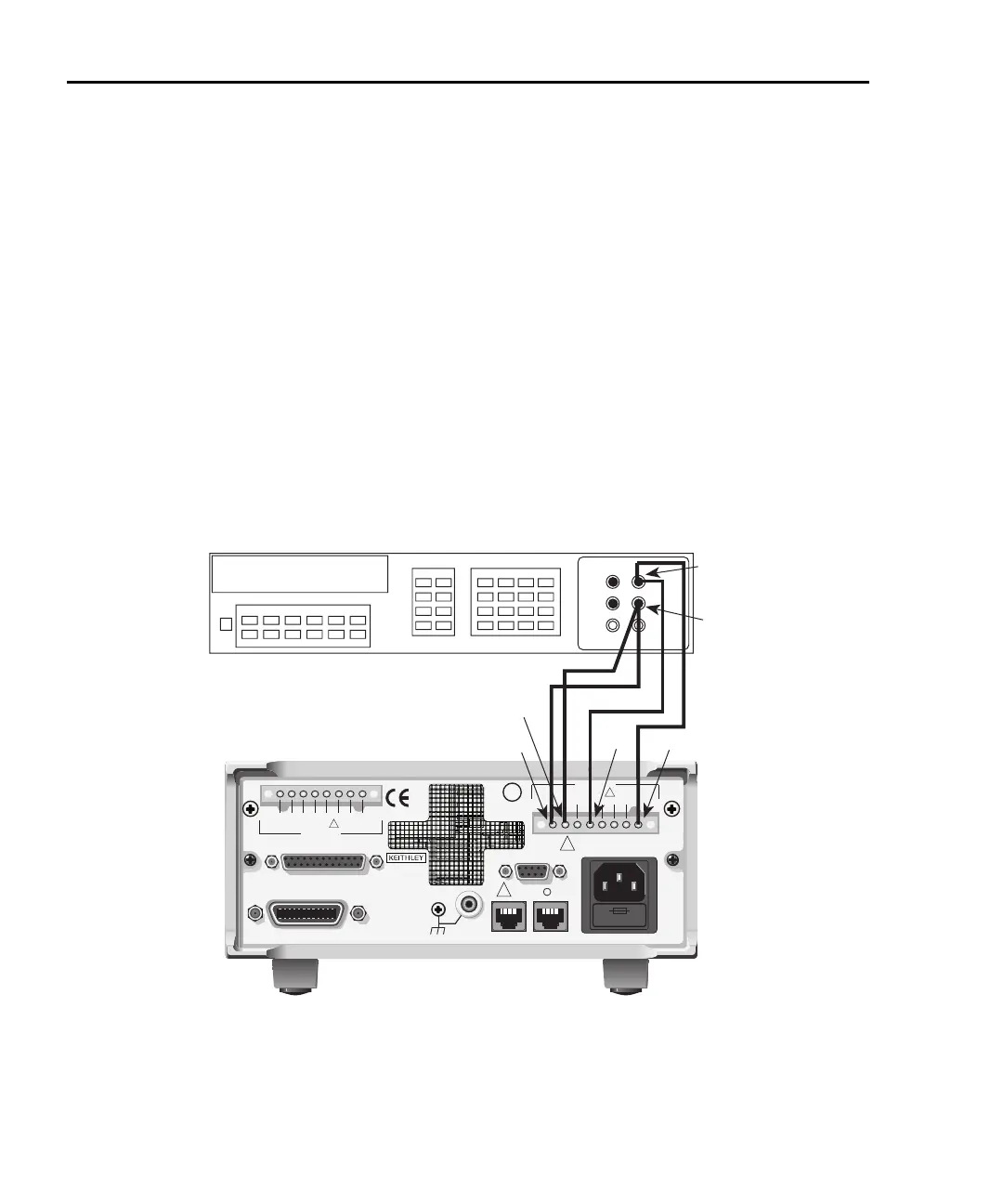

Figure 16-1
Connections for voltage calibration
WARNING: NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING: NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN
U.S.A.
IEEE-488
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
LINE RATING
100-240VAC
50, 60Hz
240VA MAX.
DIGITAL I/O
RS-232
TSP-Link
LINE FUSE
SLOWBLOW
3.15A, 250V
CAT I
SS
LO LO HIHI GGGG
CHANNEL A
!
!
!
U
L
C
US
LISTED
SourceMeter
4ZA4
CAT I
S
S
LO
LO
HI
HI
G
G
G
G
CHANNEL B
!
R
Input HI
Input LO
Model 2602/2612 Channel A
Connections Shown
LO
HI
Digital Multimeter
S LO
S HI
