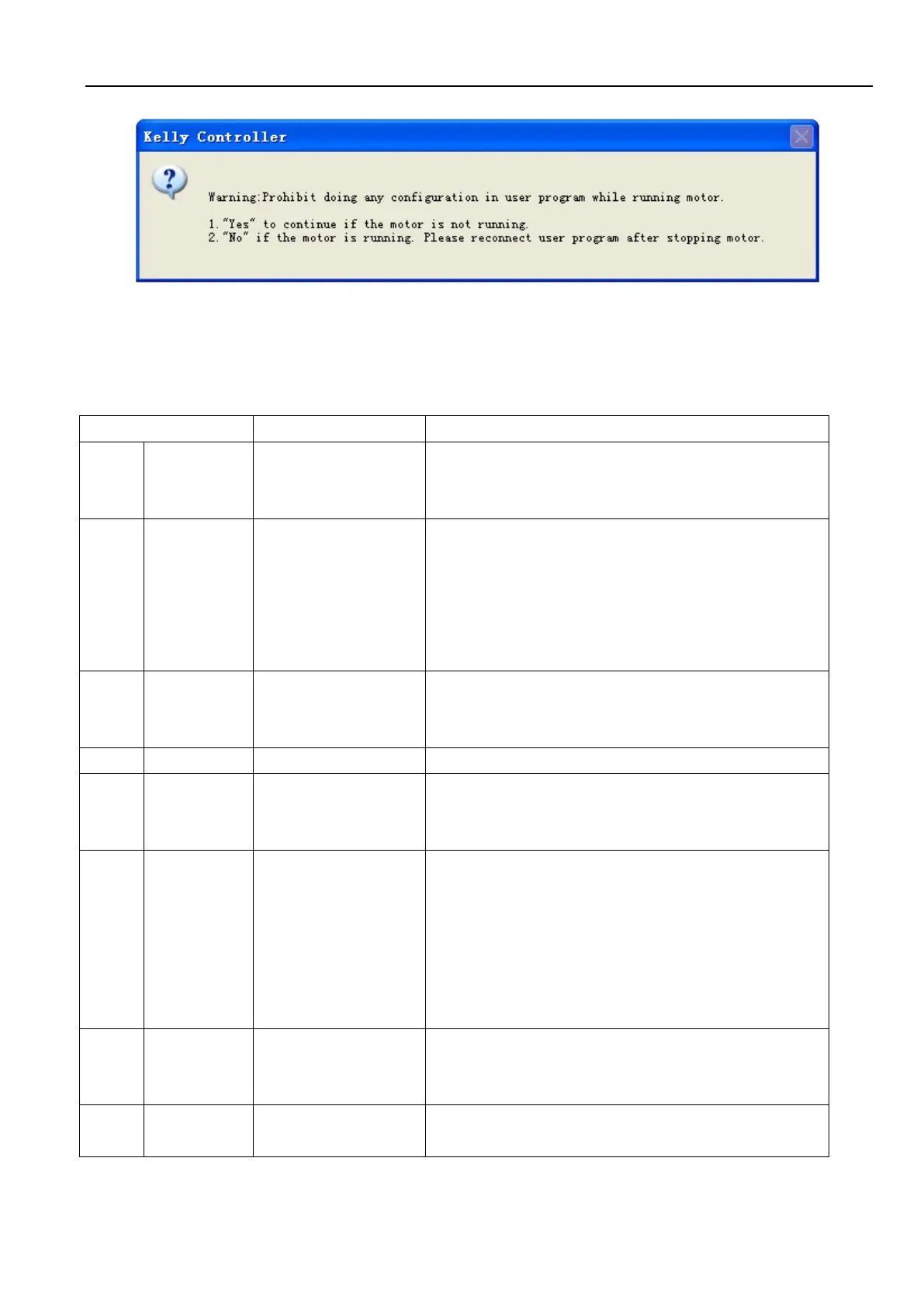

Table 1: ERROR CODES
LED Error Codes
ode
Explanation
Solution
1,1
¤ ¤
Automatic error
identification
1.
Wrong wiring of motor phase line or hall.
Please suspend the motor when enable
Auto-Identify function.
1,2
¤ ¤¤
Over voltage error
2.
Battery voltage is too high for the controller.
Check battery volts and configuration.
3.
Regeneration over-voltage. Controller will have
cut back or stopped regen.
4.
This only accurate to ± 2% upon Overvoltage
setting.
1,3
¤ ¤¤¤
Low voltage error
1.
The controller will clear after 5 seconds if battery
volts returns to normal.
2. Check battery volts & recharge if required.
1,4
¤ ¤¤¤¤
Reserved
2,1
¤¤ ¤
Motor did not start
Motor did not reach 25 electrical RPM within 2
seconds of start
-up. Hall sensor or phase wiring
problem.
2,2
¤¤ ¤¤
Internal volts fault
1. Measure that B+ & PWR are correct when
measured to B- or RTN.
2.
There may be excessive load on the +5V supply
caused by too low a value of Regen or throttle
potentiometers or incorrect wiring.
3.
Controller is damaged. Contact Kelly about a
warranty repair.
2,3
¤¤ ¤¤¤
Over temperature
The controller temperature has exceeded 100
℃
. The
controller will be stopped but will restart when
temperature falls below 80
℃
.
2,4
¤¤ ¤¤¤¤
Throttle error at
power-up
Throttle signal is higher than the preset ‘dead zone’ at
Power On. Fault clears when throttle is released.
