Kelly KLS-M/N Brushless Motor Controller User’s Manual V 2.5
The 12V input signal of the pin supplies the second braking function of the controller.

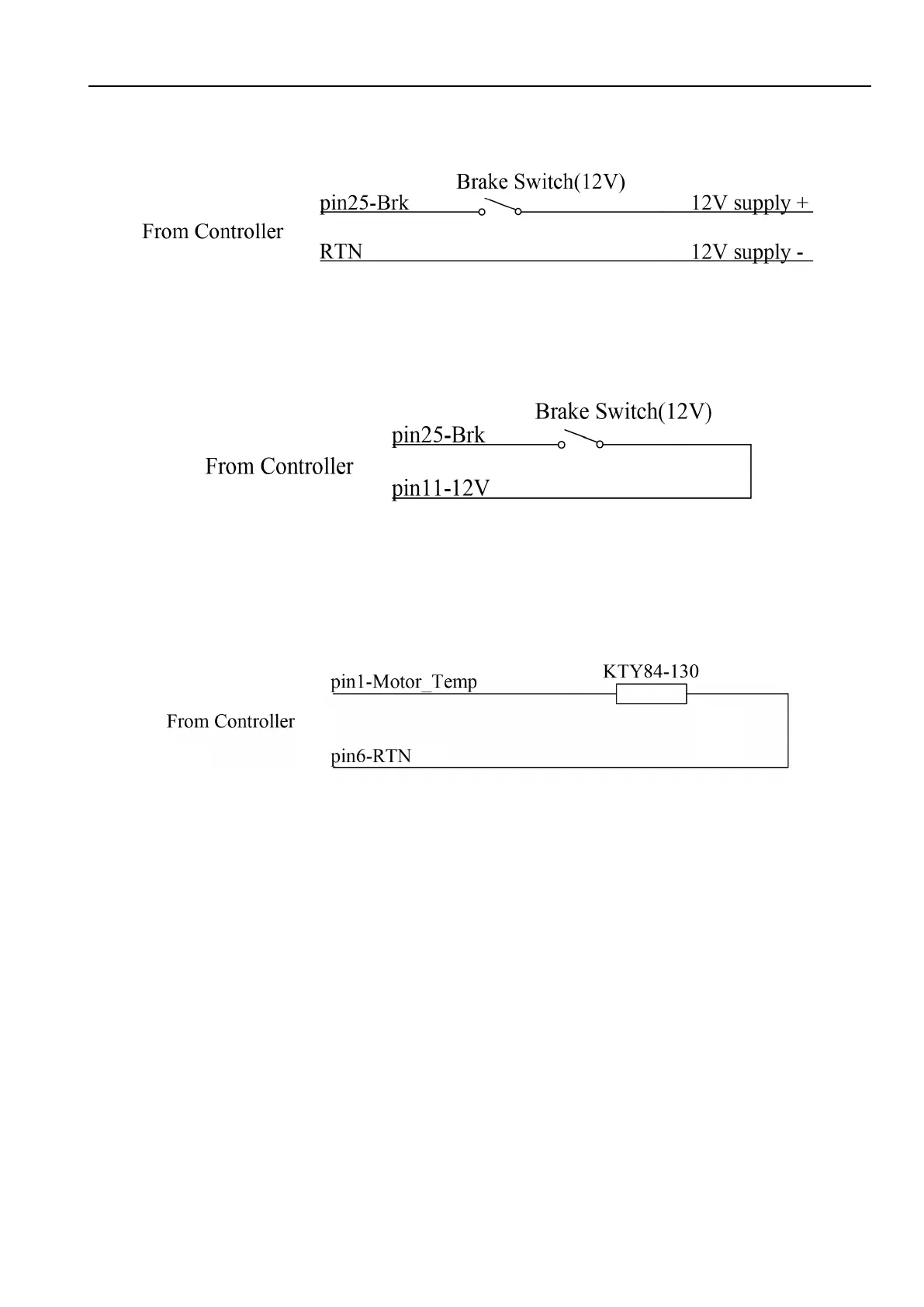

Figure 7: Wiring of brake switch(12V): 12V is provided by external source.
Figure 8: Wiring of brake switch(12V): 12V is provided by KLS-N controller on pin11
Figure 9: Wiring diagram for motor temperature sensor
NOTE:KLS controller can support KTY84-130/150 and KTY83-122 thermistors.
3.2.4 Communication Port
A 4pin connector to RS232 port is provided to communicate with host computer for calibration and
configuration.
