14 Installation instructions Kelvinator Air Conditioning
d. Insert the drain hose into the drain hole at the rear right of the
indoor unit.
drain hose

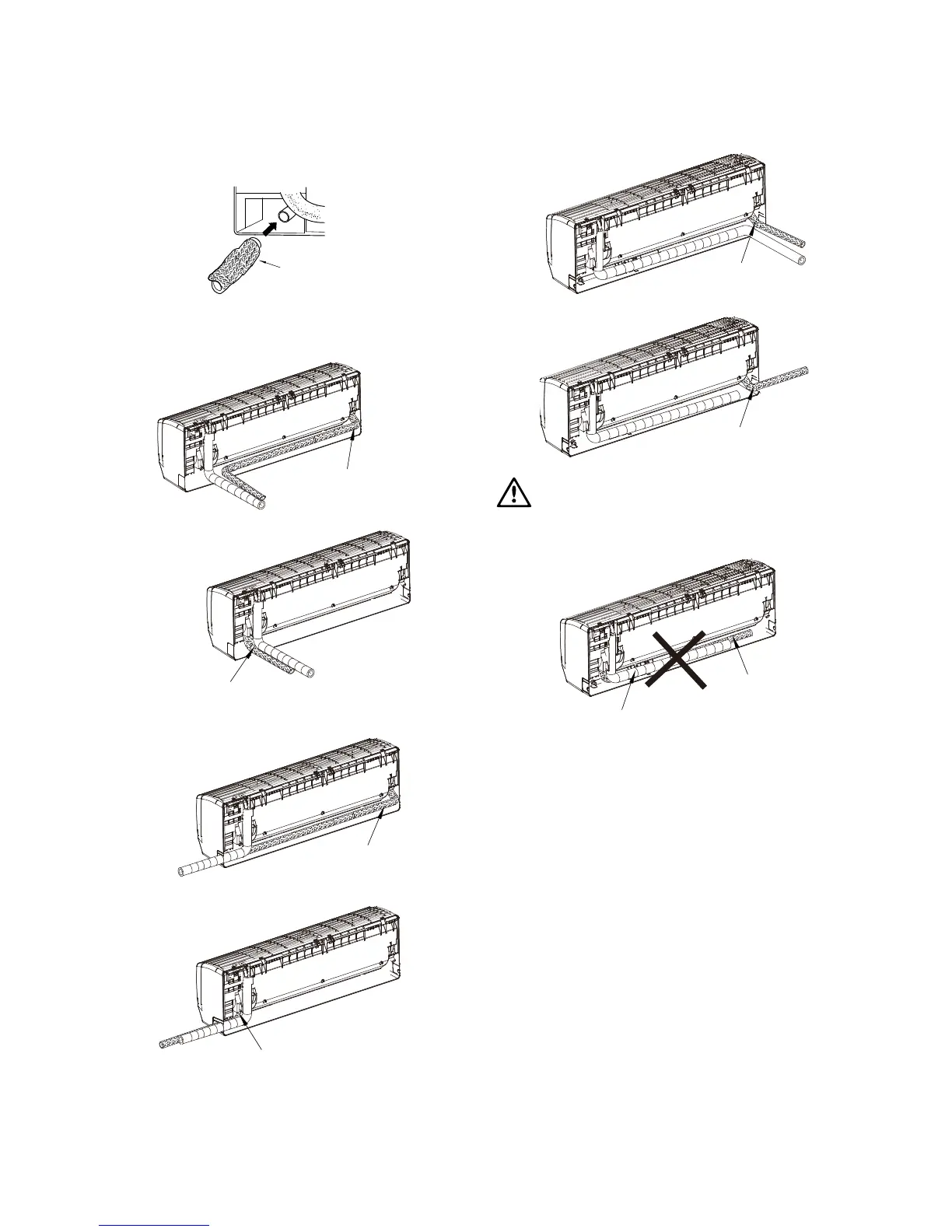

3. Arrange the pipe in the most convenient direction
and position.
piping on the rear
right side
drain hose from
the left side
piping on the rear
right side
drain hose from
the right side
piping on the
right side
drain hose from
the left side
piping on the
right side
drain hose from
the right side
piping on the left
rear side
drain hose from
the left side
piping on the
left side
drain hose from
the left side
caution
When refrigerant pipes and the drain pipe are fitted to the same
side, ensure that the bulk does not push the unit away from the wall
when in its final position.
drain hose from
the right side
Piping and cable
from the right side
Indoor unit installation
