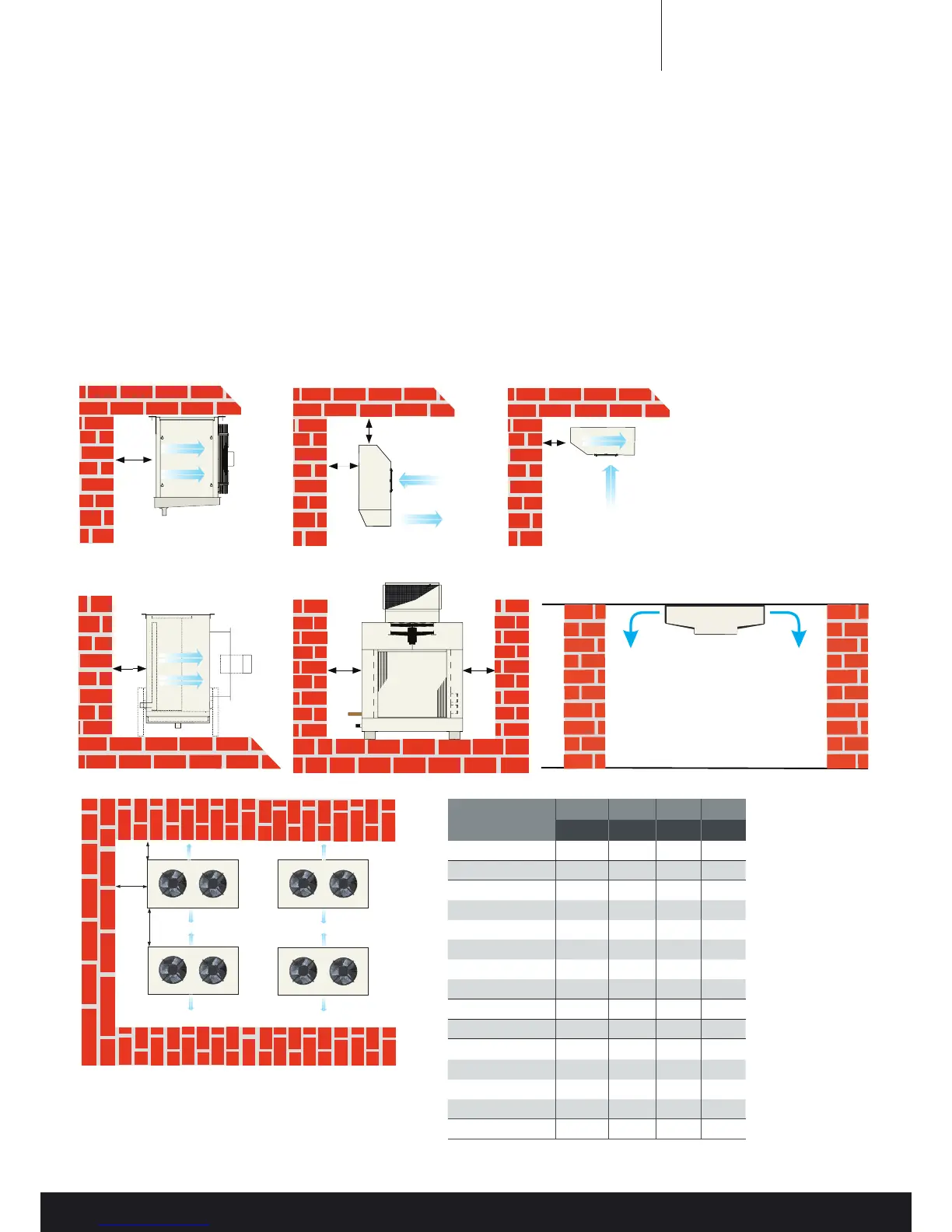

The location of the unit should be carefully selected to ensure that:
1. Air distribution from the cooler is not adversely aected by obstructions and is appropriate for the size and shape of
the room, optimum air distribution should be targeted. Product loading must be in accordance with good refrigeration
practice.
2. Air entering the cooler is not obstructed
3. The unit must be installed level in both directions
4. Maintenance access should be considered when locating the product, including adequate space for heater withdraw-
al when appropriate
5. The unit is not subjected to physical loads
Models
A B C D
mm mm mm mm
TEC all models 120 120 - -
KEC all models 275 - - -
KME 50 , 60 350 - - -
KME 80 400 - - -
KME 95 450 - - -
KME 115, 140, 175 500 - - -
KME 232, 282 650 - - -
KME 352, 353 850 - - -
DSR all models 300 - 600 1200
LSR all models 1200 - 800 1200
SM 16 800 - - -
SM 20 1000 - - -
SM 24 1200 - - -
SM 30 1500 - - -
FM all models 2000 - - -
A
A
B
C
A
A
A
A
C
D
Min services access both ends
• DSR - 300mm
• LSR - 400mm or 1200 for heat removal
Air Flow
A
Location guidance and
installation
