Kelvion TEC1 - KEC Drawings and Dimensions; KEC Dimensions and Brackets

39

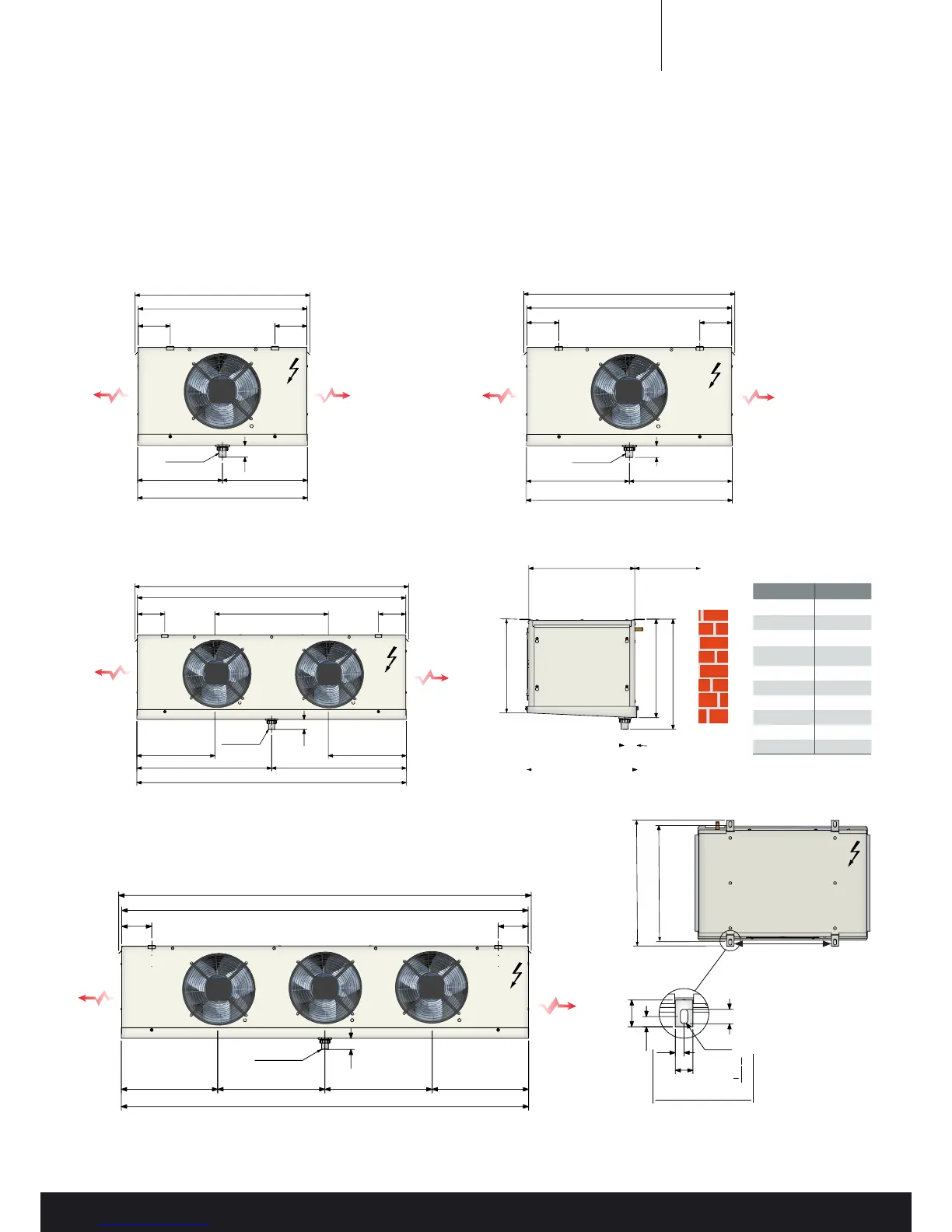

Product dimensions
Note: Maintenance access require at both ends of unit All dimensions in mm, F’ = Min heat Withdrawal
442 Casework
275 min
393
412
461 O/A Height
460 Drain pan
50
KEC 10 - 15
Heater removal
500mm (either end)
726 O/A length
700 Casework
133
133
1“D/Conn
352
352
48
705 Drain pan
F
KEC 20 - 30
Heater removal
600mm (either
end)
876 O/A length
850 Casework
133 133
1“D/Conn
427.5
427.5
48
855 Drain pan
F
KEC35 - 45
Heater removal
600mm (either
end)
1326 O/A length
1300 Casework
133 133
1“D/Conn
377.5
377.5
48
1305 Drain pan
653
653
550
F
Heater
removal
600mm
(either end)
KEC55 - 70
1826 O/A length
1800 Casework
133 133
1“D/Conn
48
1805 Drain pan
427.5 427.5475 475
F
Hanging bracket for KEC Models
Coil conns end
489 MTG CTRS
R6.5
25
30
15
17.5
46
524 O/A WIDTH
KEC drawings and dimensions
Options - Part numbers of options supplied separately
Model Dim A
KEC10 435
KEC15 435
KEC20 585
KEC25 585
KEC30 585
KEC35 1035
KEC40 1035
KEC45 1035
KEC55 1535
KEC70 1535
A MTG CTRS
