5. LOADING AND HANDLING
Appropriate equipment should be used to load, un-load and locate the unit in its operational location. Considera-
tion of the products size and weight should be taken ensuring th at any equipment (such as fork lifts) m eets releva nt
national standards.

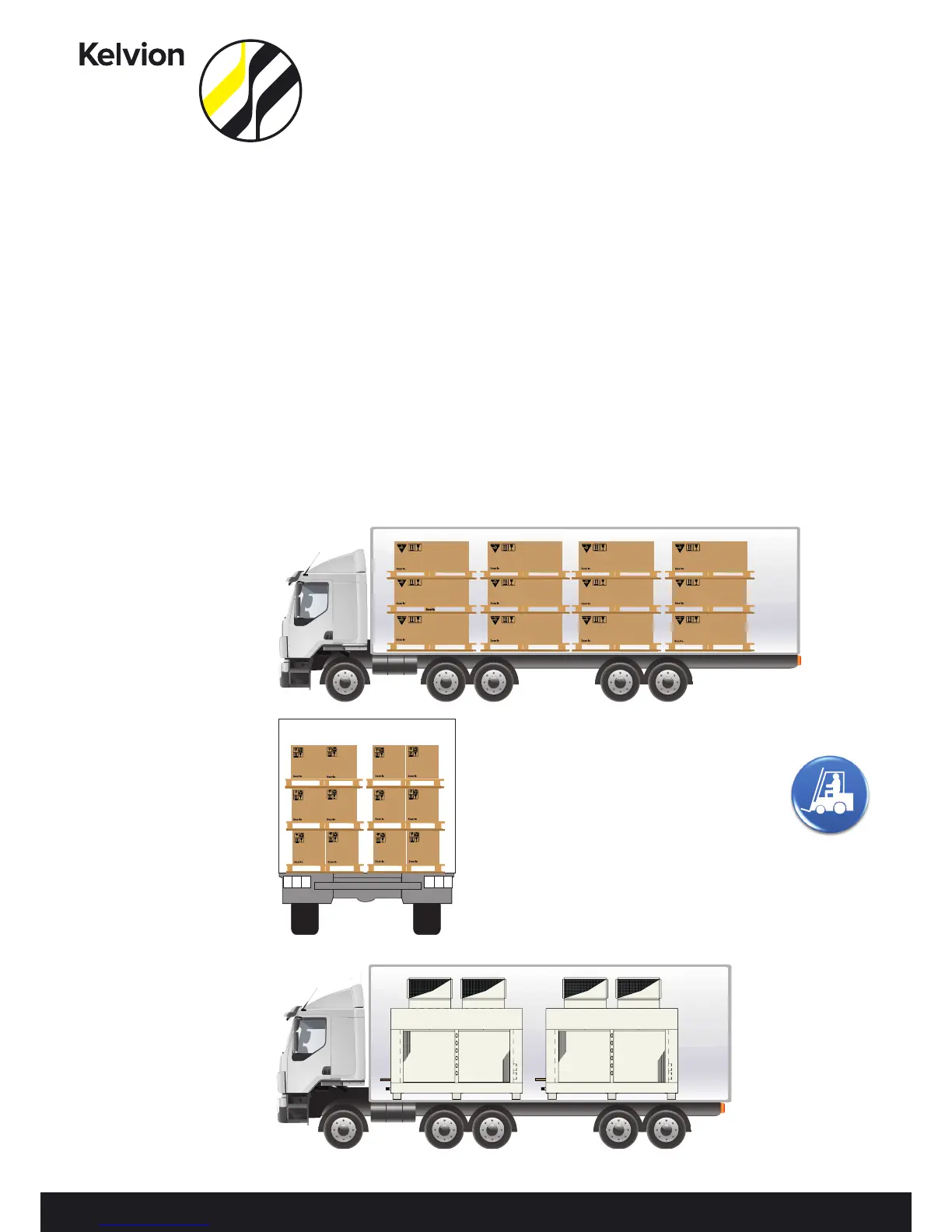

1. For transportation of unit coolers is inverted and bolted to the base of the packing case, Care must be taken while
removing the packaging and installing to prevent damage, particularly of the finned coil.
2. The dr ainpan is fitted to the unit (in its transit/lifting position) for transportation. Remove the draintray by
removing the four fixings and then fit the hexagonal drain connection and gasket into the hexagonal well inside
the draintray. Hand tighten this assembly using the knurled nut on the outside.
3.
Refit the draintray in its transit position (fixings loose) making use of the slots in the tray so that it moves into
contact with the underside of the cooler bottom plate so that the weight is transferred directly to the chassis of the
unit when lifting into position.
Note: for industrial coolers the points detailed above do not apply.
Forklift
