Wiring diagrams
14. WIRING DIAGRAMS
Wiring diagrams for KEC, KECX, KECP

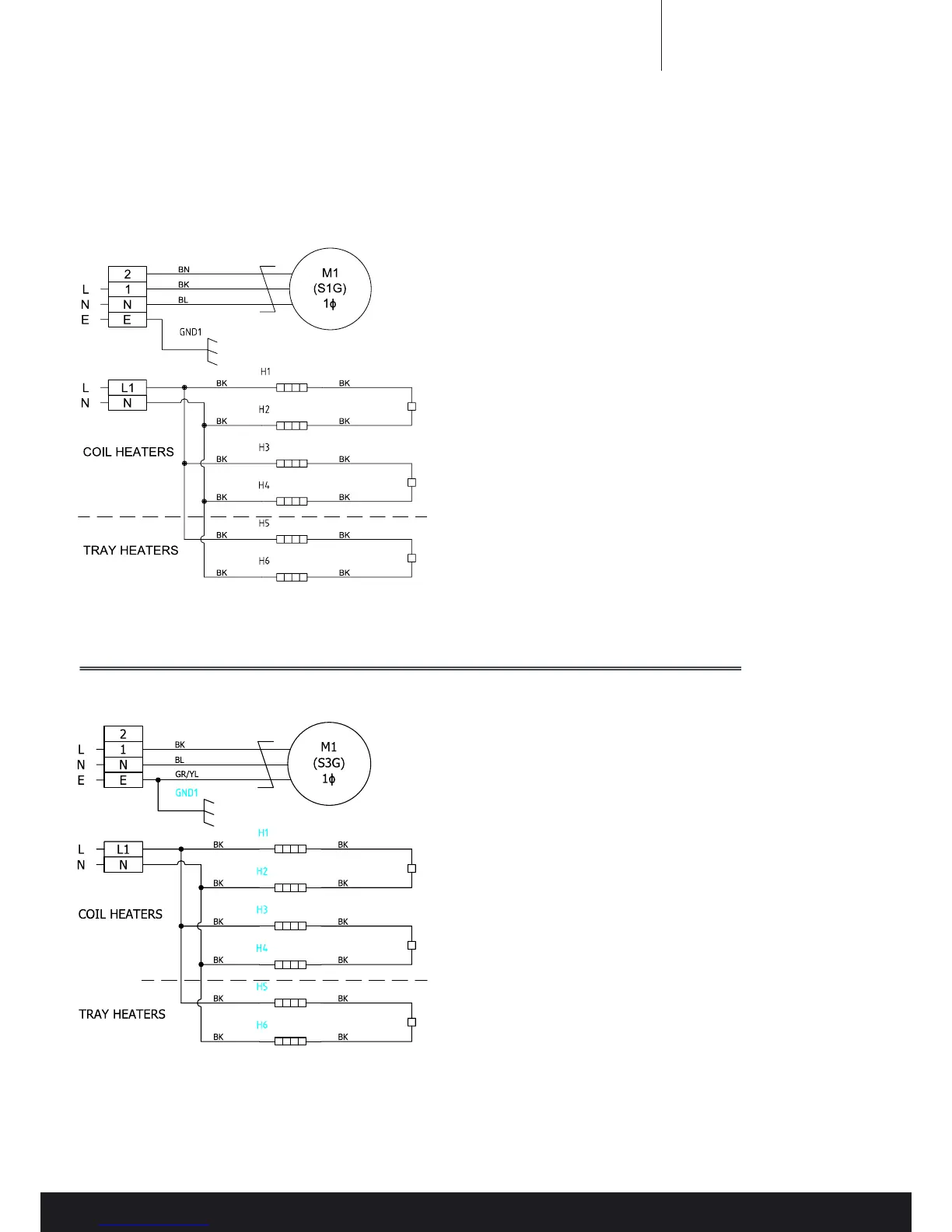

KEC 10, 15 & 20 (Fan & Defrost)
Note:
1. Supply 230V - 1PH - 50Hz.
2. Applies To KEC Range Only:
• KEC 10 - Standard
• KEC 15 - Standard
• KEC 20 - Standard
3. High Speed: Connect Supply To
Terminal Block Terminals 1 and N.
4. Low speed: Link terminal block terminals 1 & 2
5. Defrost heaters (If required). Terminal Box: 218-901-013.
271-111-145
KEC 10, 15, 20, 25 & 30 (FAN & DEFROST)
Note:
1. Supply 230V - 1Ph - 50Hz.
2. Applies To KEC Range
3. (Single Fan Only):
• KEC 10 - Special
• KEC 15 - Special
• KEC 20 - Special
• KEC 25 - Special
• KEC 30 - Standard
• KEC 10 - Standard
4. Defrost Heaters (If Required).
5. Terminal Box: 218-901-013.
271-111-146
