TECHNICAL SERVICE MANUAL FOR KEMPOWELD
TABLE 1. CONNECTORS AND CONTROL LINES
KEMPOWELD CONNECTORS X006 AND K200/400 XW101
XW101 / X006
K200/400
A001
KEPOWELD
A001
VALUE
B
X3/1
X8/3
30 VAC
C
X3/8
X2/1
30 VAC
D
X3/7
X2/11
START

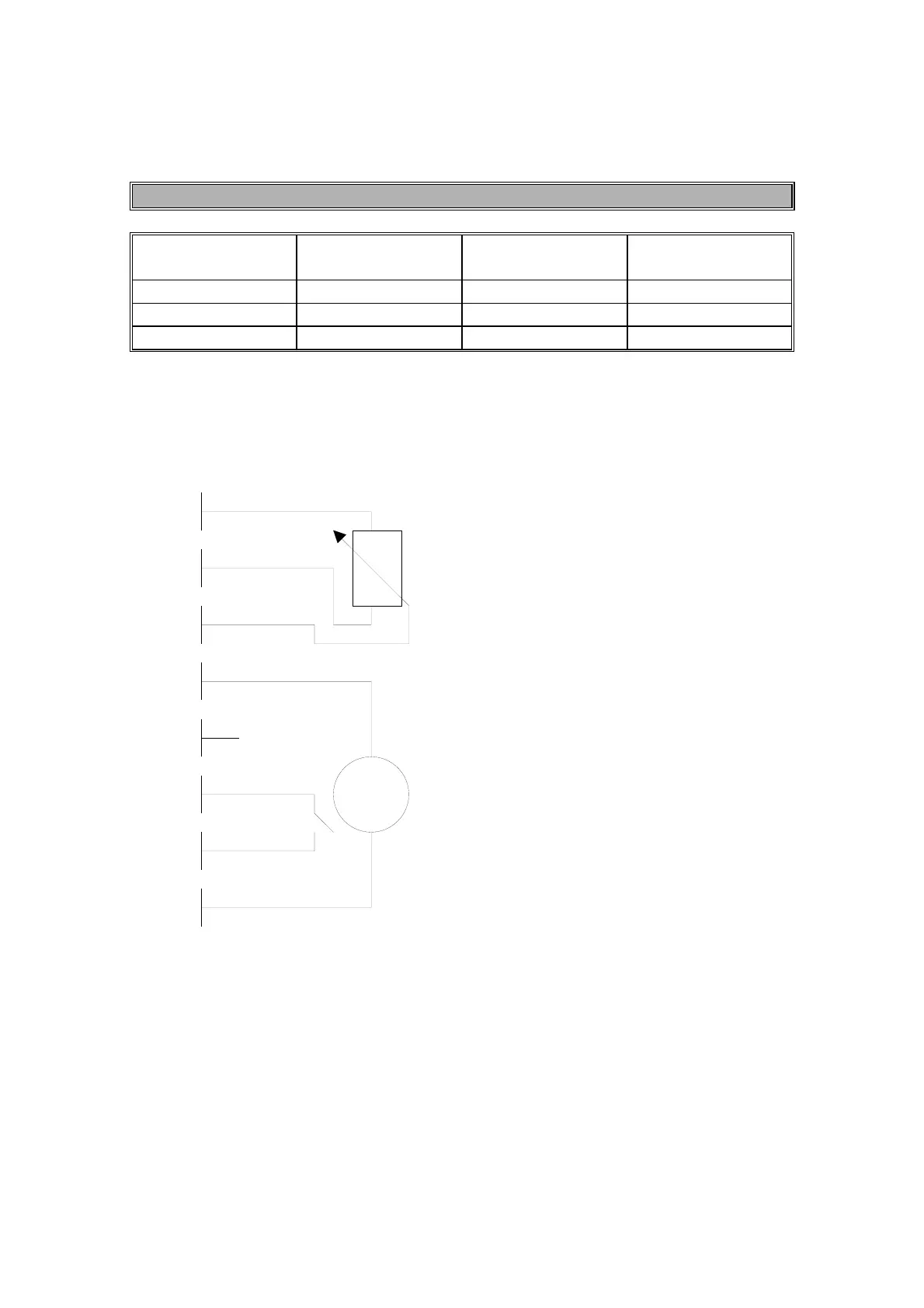

PICTURE 1. KMW-SYNC CONNECTION
A
B
C
D
E
F
G
H
M
HC-start
4
6
Table of Contents
General Maintenance of Kempoweld
2
Troubleshooting Chart
2
Kempoweld Connectors X006 and K200/400 XW101
5
KMW-Sync Connection
5
A004 MP-Sync Control Card
6
PCB of K400 Timer Unit
6
A001 PCB of K400
7
Troubleshooting for Pcbs
8
A001 Power Source
8
A001 Wire Feeder
8
A002 Water Cooling Unit
9
Kempoweld2501 Spare Parts
28
Kempoweld3200 Spare Parts
30
Kempoweld3200 W Spare Parts
32
Kempoweld4000/4000W Spare Parts
34
Kempoweld5500W Spare Parts
36
Wire 200 Spare Parts
38
Wire 400 Spare Parts
40
Wire 550 Spare Parts
42
