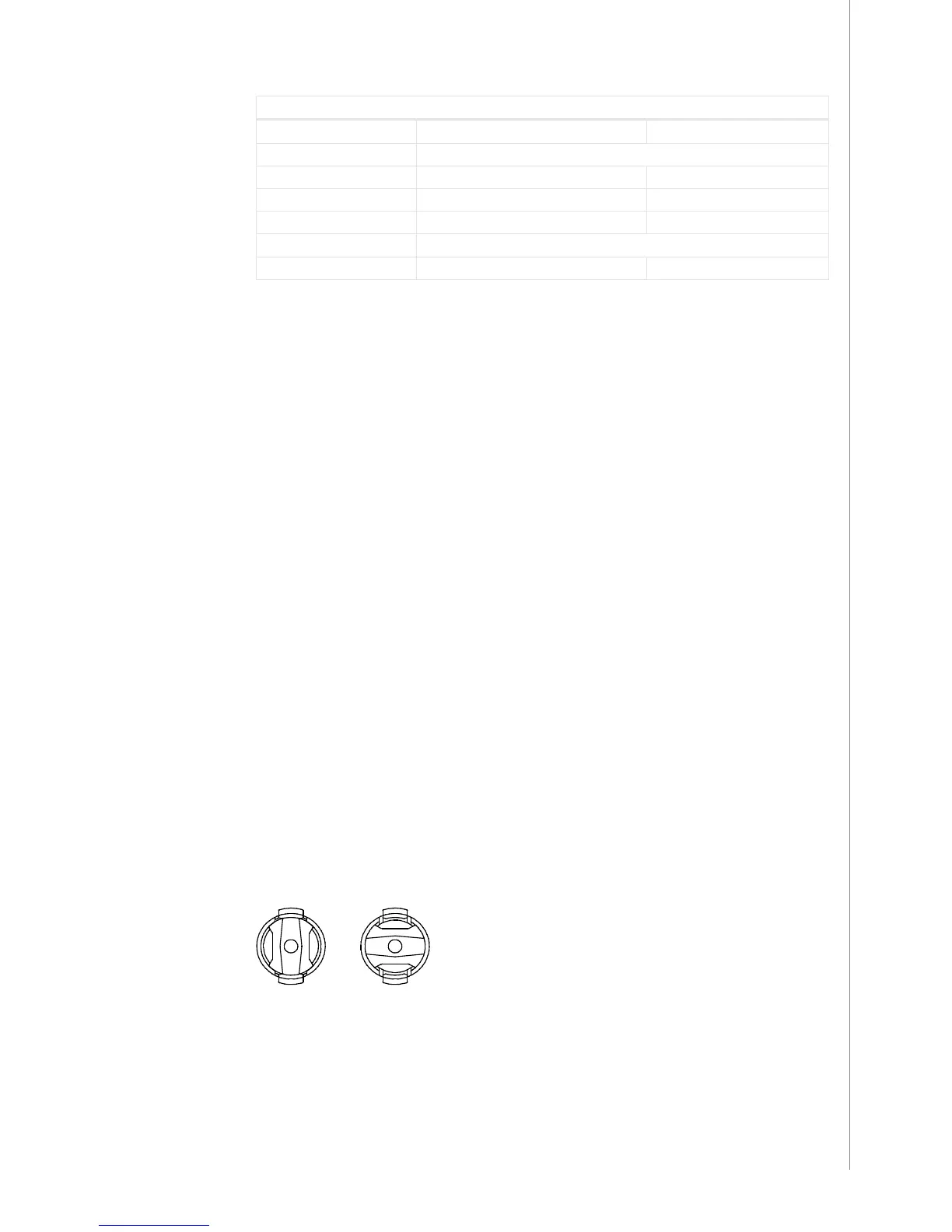

Kempomat 3200, 4200

Colour Filler wire ø, mm inch

Feed rolls

white 0.6 and 0.8 0.030

red 0.9/1.0 and 1.2 0.035, 0.045 and 0.052

yellow 1.4, 1.6 and 2.0 1/16 and 5/64

Guide tubes

orange 0.6-1.6 0.024-1/16

Feed roll with plain groove:

Universal feed roll for welding of all kinds of wires

Feed rolls with knurled groove:

Special feed roll for cored wires and steel wires

Feed rolls with trapezoidal groove:

Special feed roll for aluminium wires

Wire feed rolls have two grooves for dierent ller wire diameters. Correct wire groove is

selected by moving selecting washer from one side to another in feed roll.

Feed rolls and wire guide tubes have colour codes in order to make identication easier.

By delivery Kempomat is equipped with red feed rolls with plain groove and with orange wire

guide tubes for welding ller wires 0.9 - 1.2 mm (0.035”, 0.045” and 0.052”).

3.4 MOUNTING OF MIG WELDING GUN

In order to ensure trouble-free welding check in operation instructions of gun used by you

that wire guide tube and contact tip of gun are according to manufacturer´s recommendation

suitable to be used for wire feed diameter and type in question. Too tight a wire guide tube

might cause for wire feeder unit a bigger stress than normally as well as disturbances in wire

feed.

Screw snap connector of gun tight that there won´t come any voltage losses on connecting

surface.

A loose connection will heat gun and wire feeder unit.

NOTE! Make sure that the welding gun in your use is designed for max. welding current needed by

you! Never use a damaged welding gun!

3.5 MOUNTING AND LOCKING OF WIRE REEL

• Release locking nails of wire reel hub by turning locking knob to the position OPEN.

• Mount the reel at its place. Note rotating direction of reel!

• Turn the locking knob to the position LOCKED.

NOTE! Check in ller wire reel that there are no parts sticking out, which could e.g. chafe against

chassis or door of wire feeder unit. Dragging parts might expose chassis of wire feeder unit under

voltage.

LOCKED OPEN
