Page #12 background imageLoading...
Page #12 background image

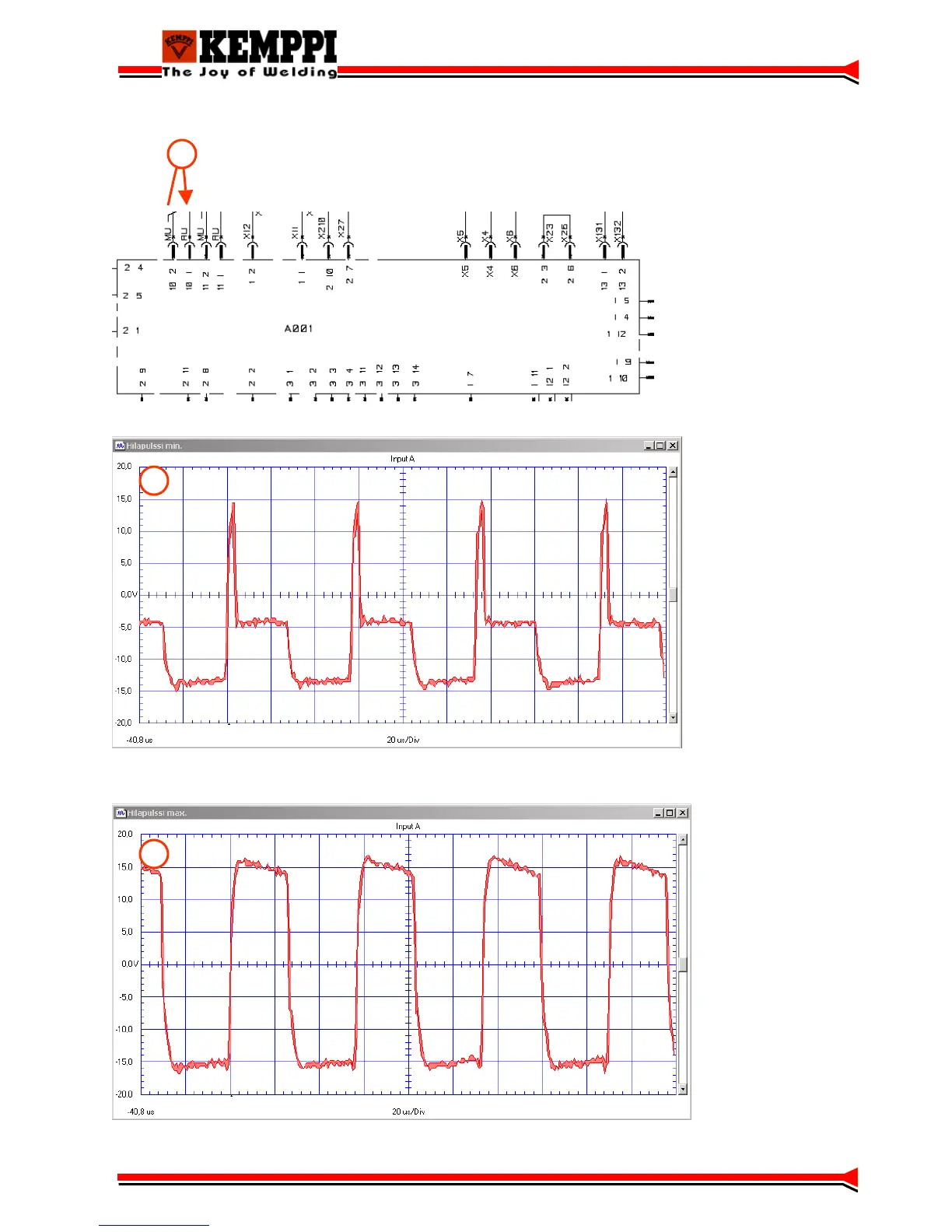

IGBT gate pulse with minimum power (2800/3500). Inverter operating frequency approx. 19 kHz (measuring point A).
IGBT gate pulse with maximum power (2800/3500). Inverter operating frequency approx. 19 kHz (measuring point A).
A
IGBT gate pulse (Master / Mastertig 2800/3500)
A
A
12
