C

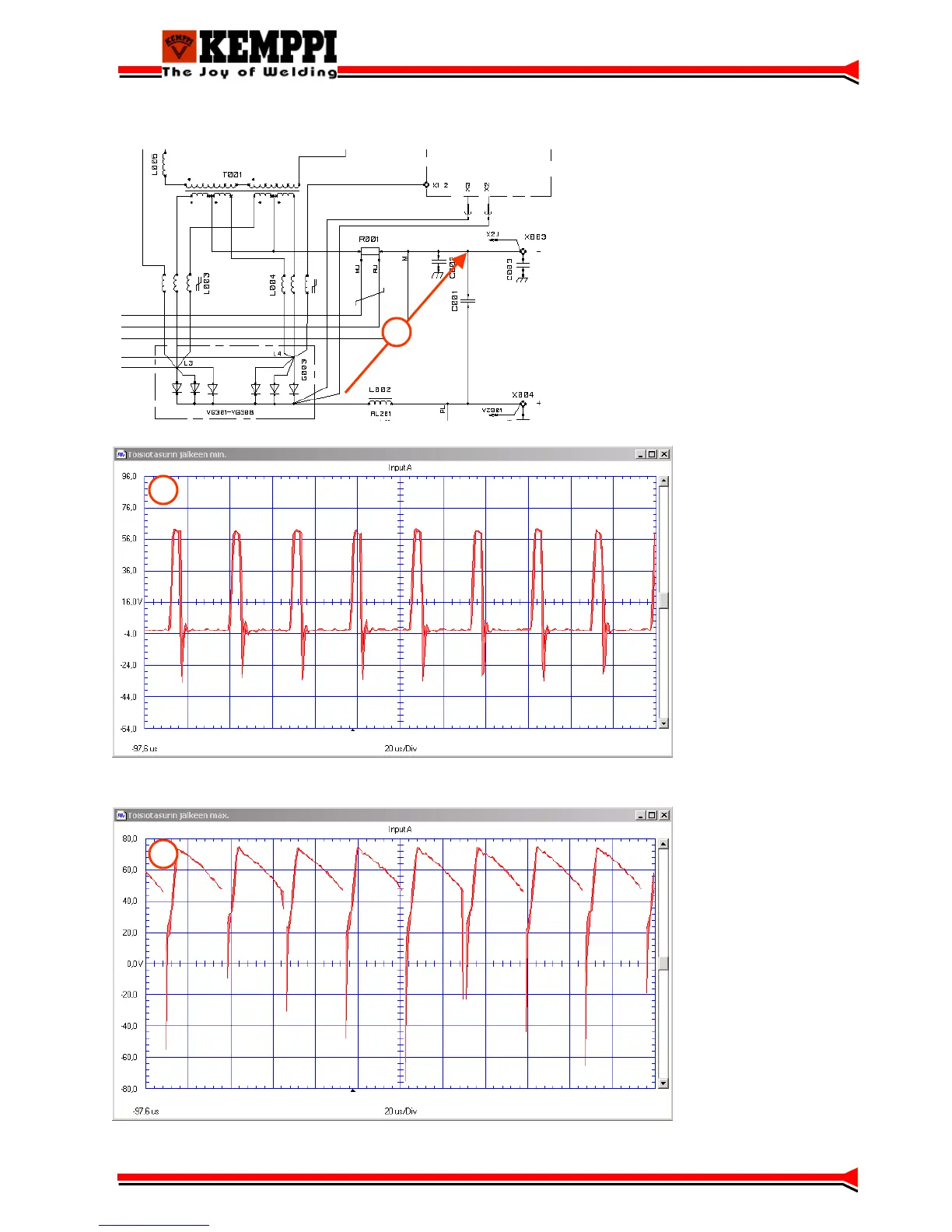

Voltage over the secondary diodes with minimum power(2800/3500). Frequency is approx. 38 kHz (measuring point C).
Voltage over the secondary diodes with maximum power (2800/3500). Frequency approx. 38 kHz (measuring point C).
Voltage after the secondary diodes (Master / Mastertig 2800/3500)
C
C
14
