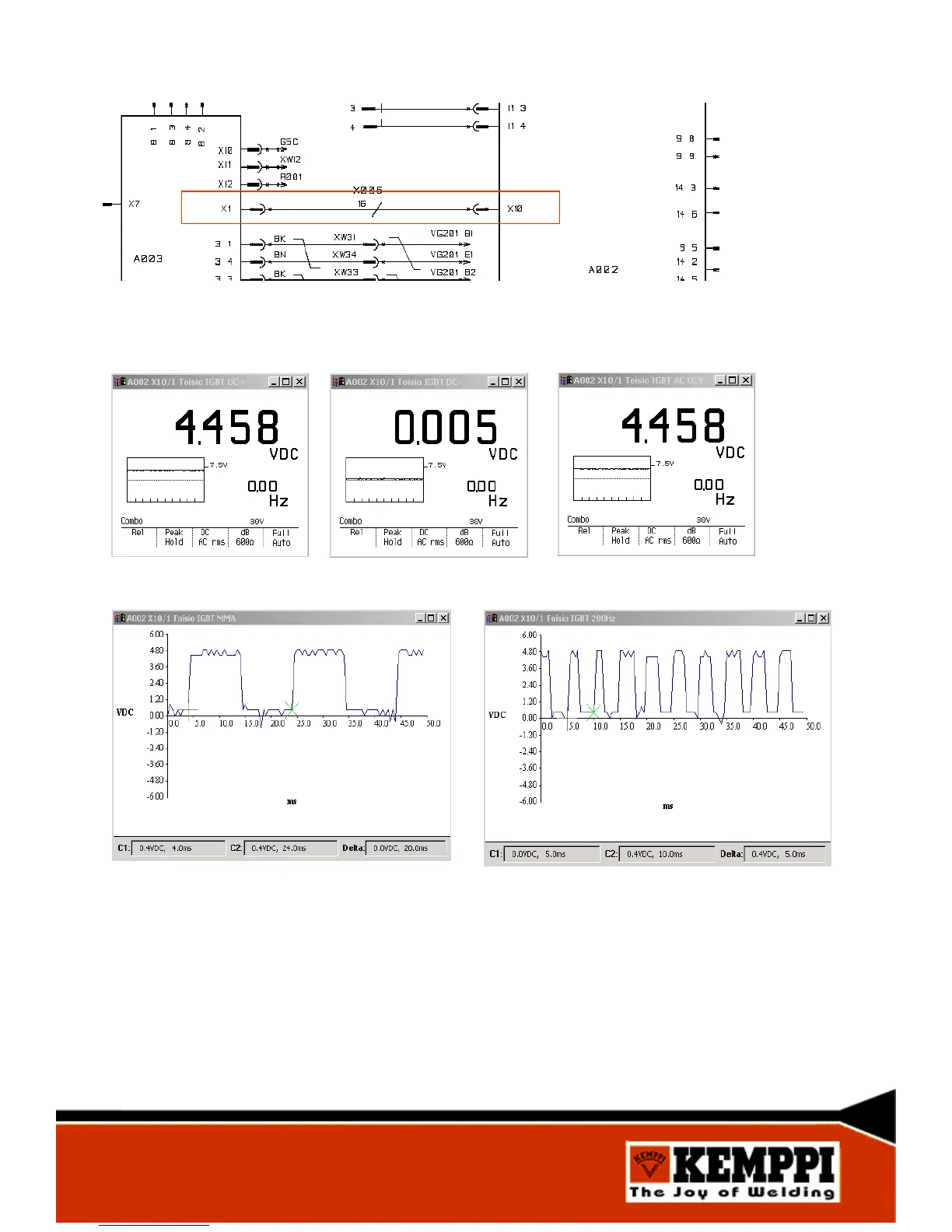

Measurings from control card A002 connector X10
DC+ DC- AC, MMA / Idling
Secondary IGBT control, voltage on connector X10/1
AC 50 Hz, MMA
AC 200 Hz, TIG
50
