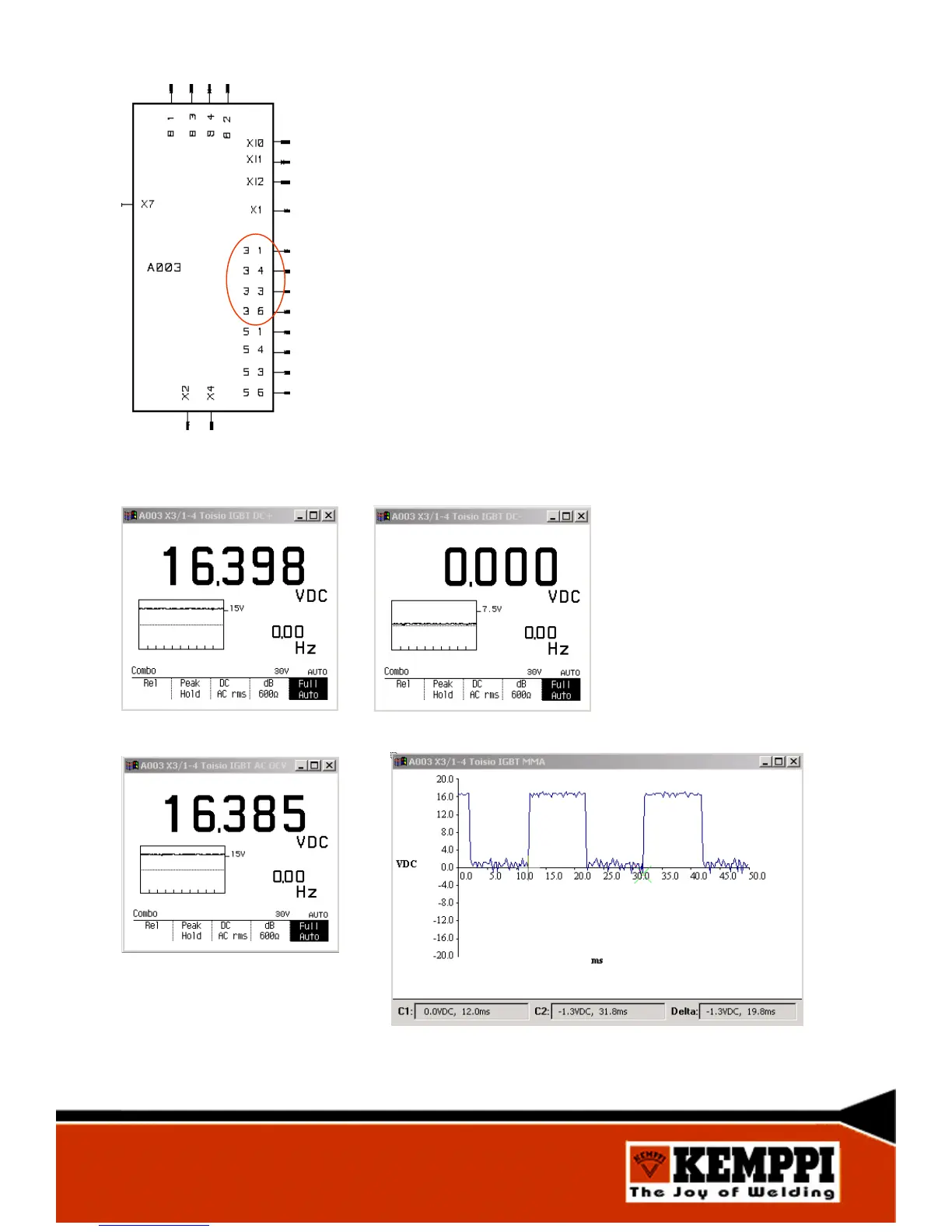

Measurings from control card A003 connector X3
DC+ DC-
Secondary IGBT control, voltage on connector X3/1-4
AC, MMA / idling
AC 50 Hz, MMA
54
