Mastertig 2500 AC/DC inverter controls

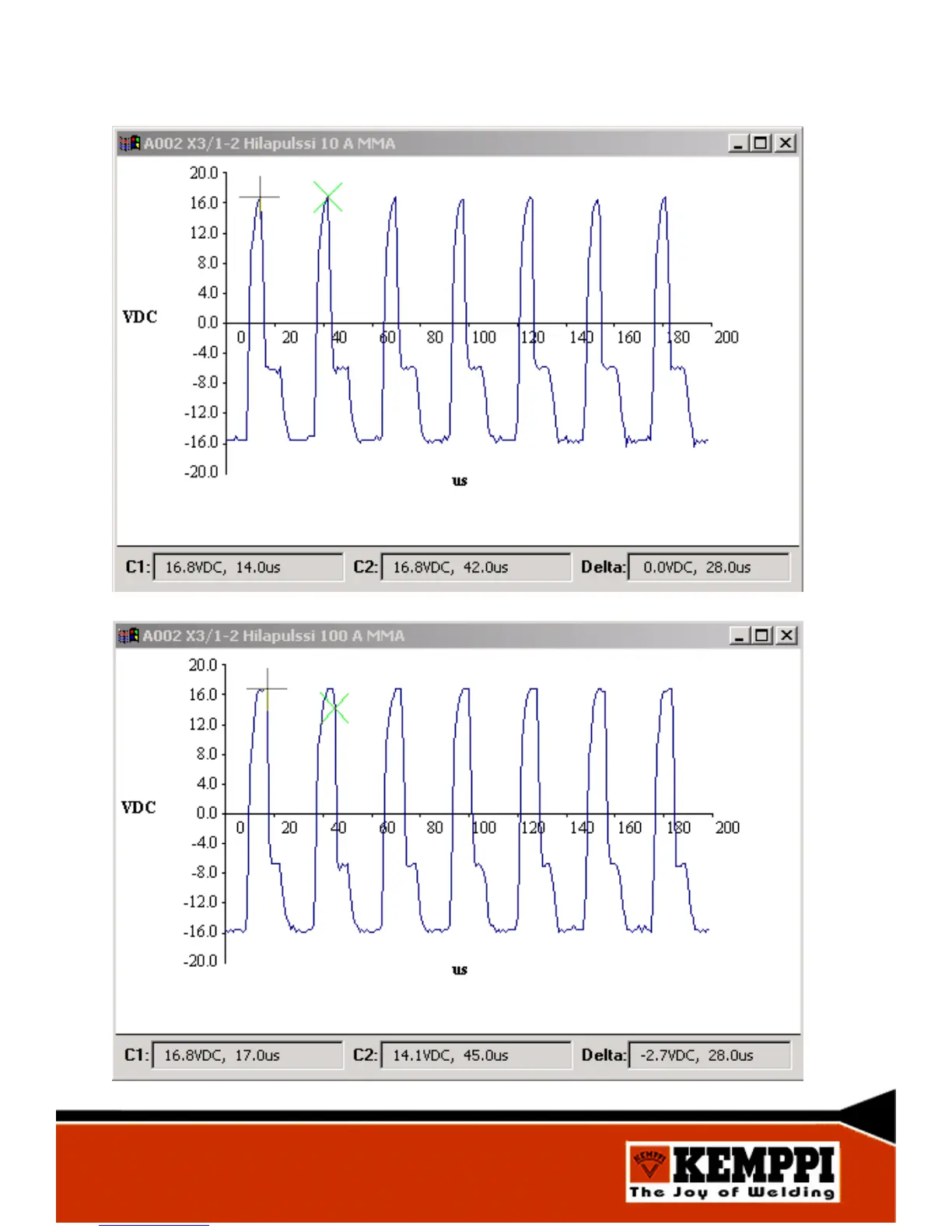

IGBT gate pulses, voltage on connector X3/1-2 (A002)
IGBT gate control 10 A
IGBT gate control 100 A
Mastertig 2500 AC/DC
Mastertig 2500 AC/DC
70
