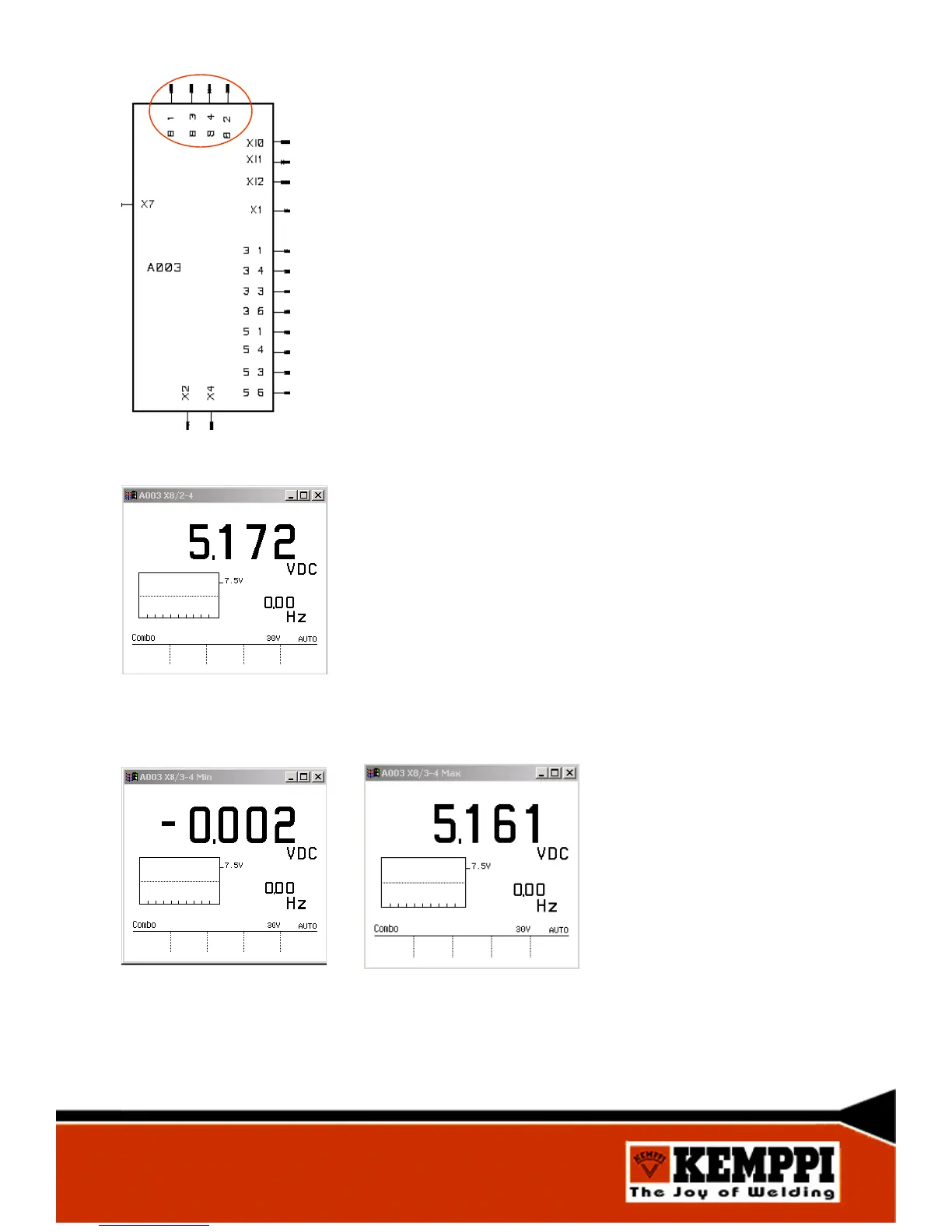

Measurings from control card A003 connector X8
Remote controller voltage reference, voltage on connector X8/2-4
Min
Max
Set value from remote controller, voltage on connector X8/3-4
56
