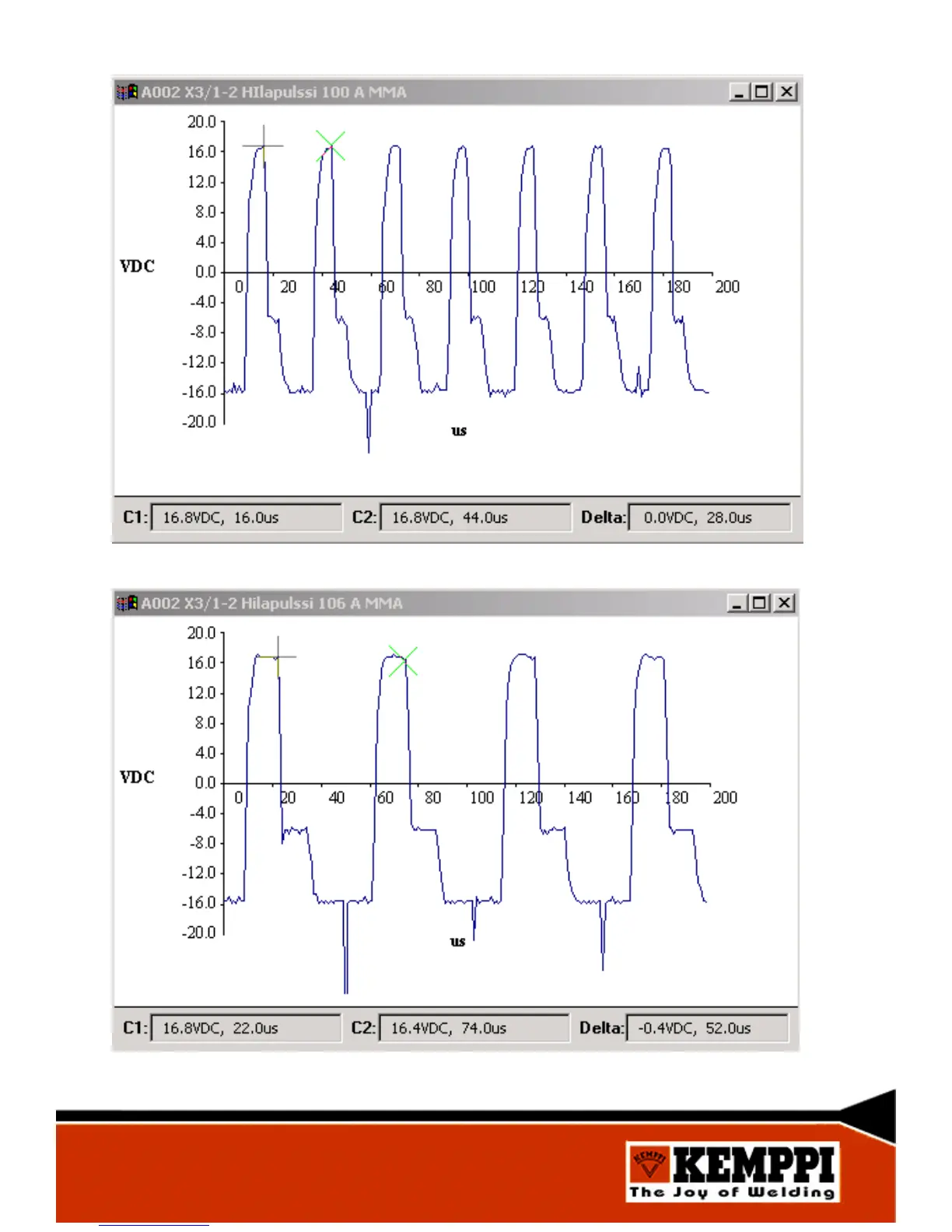

IGBT gate pulses, voltage on connector X3/1-2 (A002)
IGBT gate control 100 A
IGBT gate control 106 A
Mastertig 3500 AC/DC
Mastertig 3500 AC/DC
78
