Kemppi Minarc 120AU Service Manual

Operational tests / measurings
A
B
C

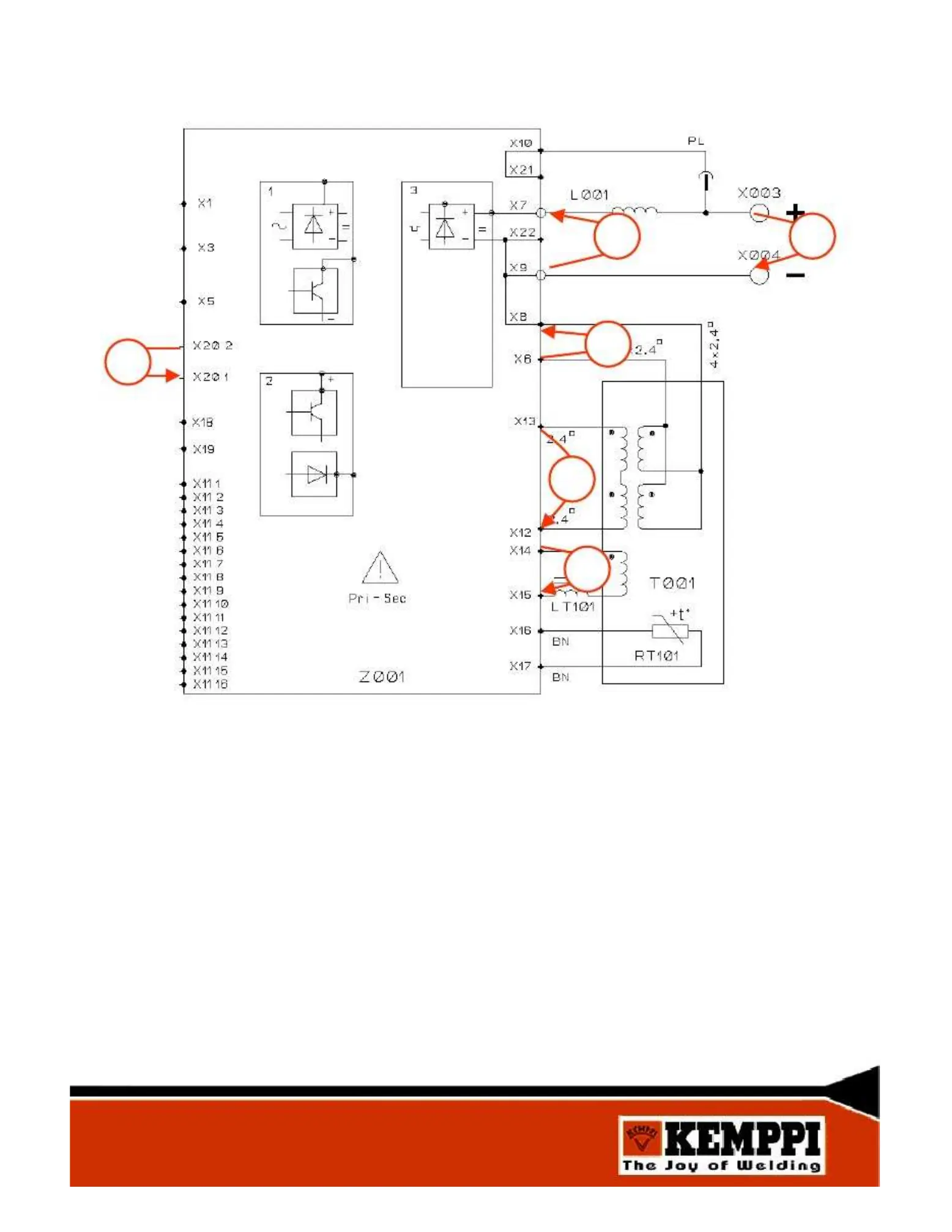

Measuring point A. Main transformer T001 primary voltage
Measuring point B. Main transformer T001 secondary voltage
Measuring point C. Voltage after seconday rectifier
Measuring point D. Aux. coil voltage
Measuring point E. Fan M001 voltage
Measuring point F. Pole voltage
