R26
Max. current
adjustment
R35
adjustment

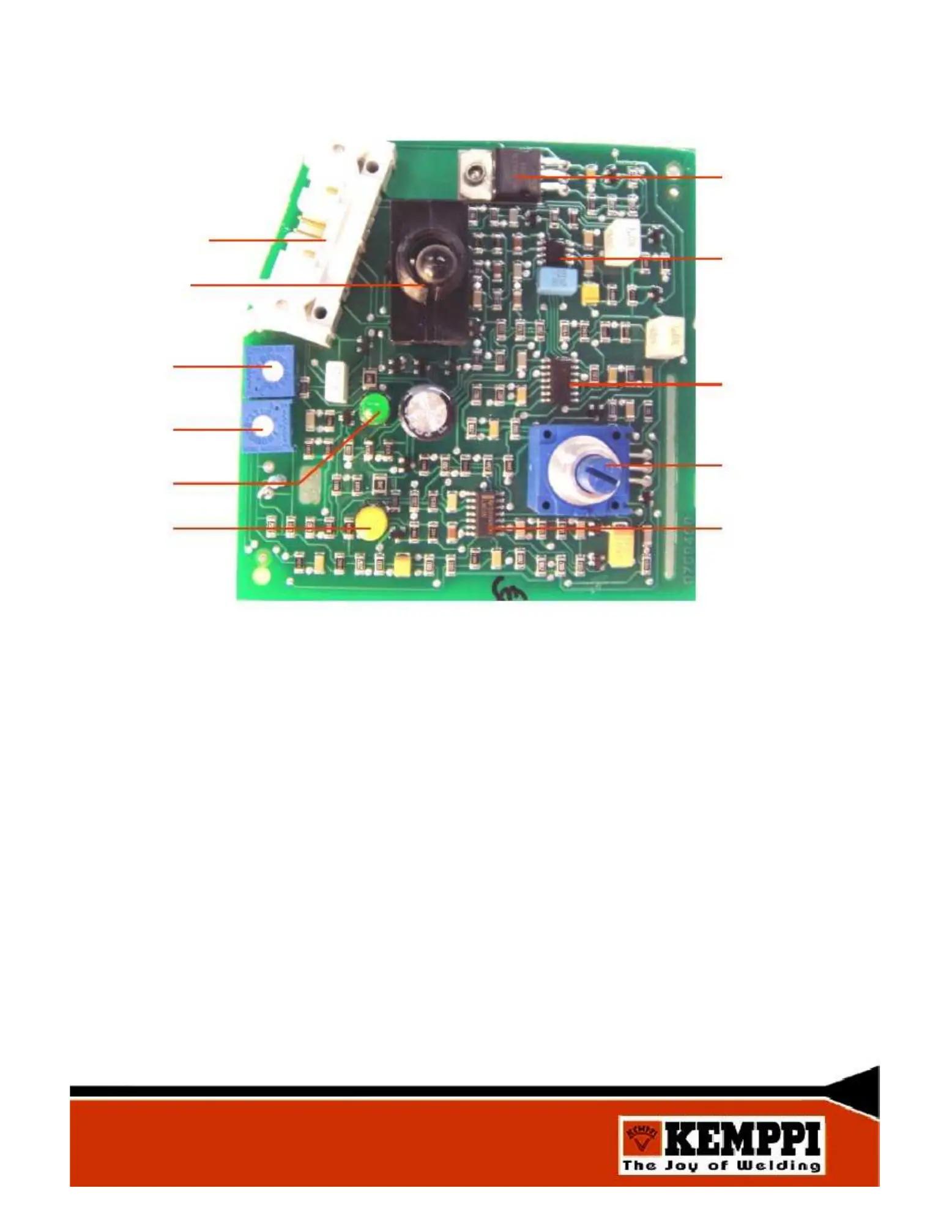

Control card A001 layout
R49
Current adjustment
X1
S1
MMA/TIG
H2
ON / VRD ON
H1
Overheat
protection
N1
Voltage regulator
(+ 20 V)
N2
PWM-circuit
N3
Comparator
N4
Comparator
23
