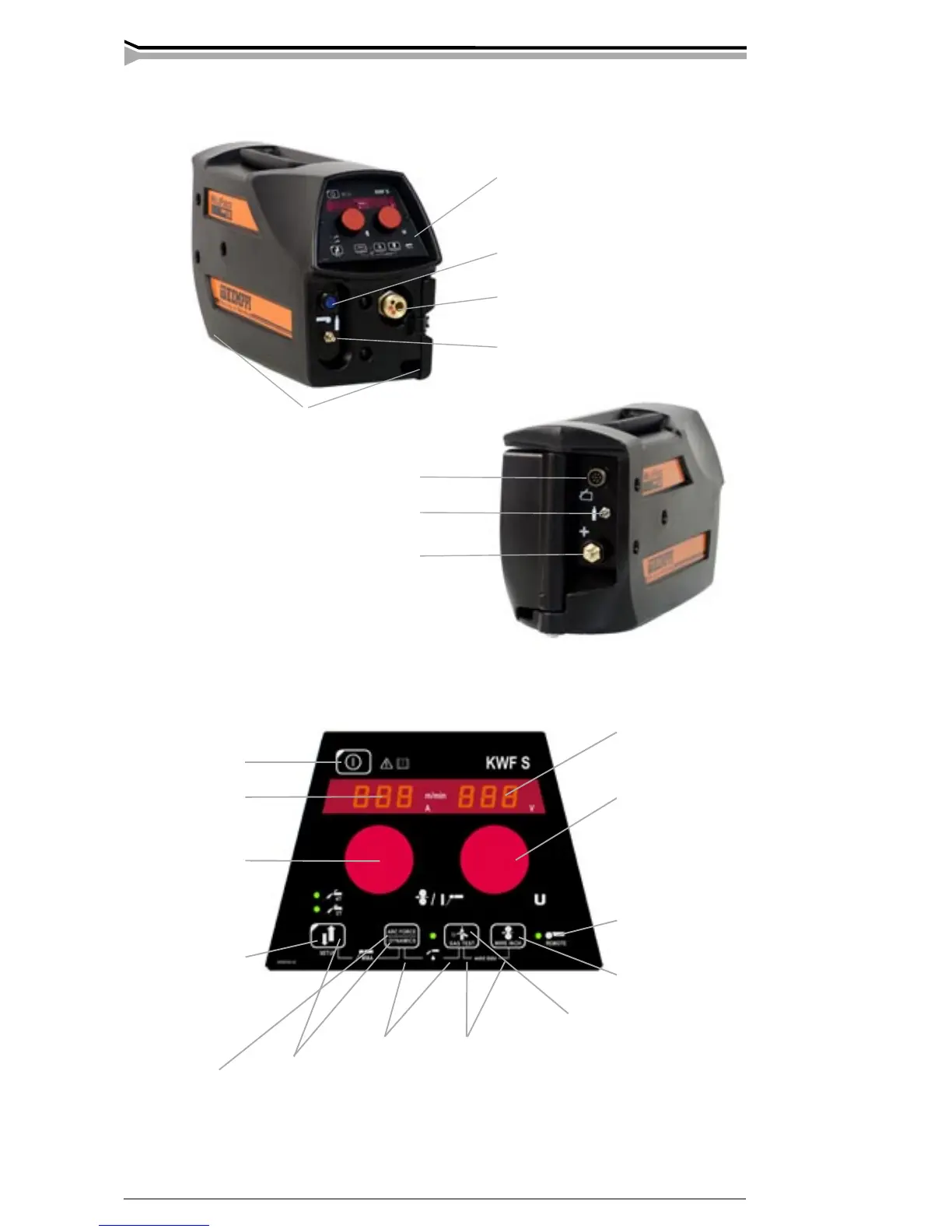

1.2.1. Operation control and connectors
KWF200S
Functions of KWF200S function panel
Operation panel
Connection of remote control unit
Connection of welding gun
EURO
Shield gas flow control
Lead-in and clamping of
cooling liquid hoses
Connection for control cable
Shielding gas connection
Welding current cable connector
Main switch
Display of wire
feed speed / welding
current
a) Adjustment of wire
feed speed
b) Selection of
SETUP parameter
a) Selection of MIG
process: 2T / 4 T
b) Changing of basic
parameters of the unit,
SETUP (long pressing)
Selection of MIG
dynamics for
adjustments
MMA
Selection of gas /
water cooled
MIG gun
Weld data: Last used
welding parameters
shown in displays
Display of set value
of welding voltage /
voltage during welding
a) Adjustment of welding
voltage
b) Adjustment of MIG
dynamics
c) Adjustment of SETUP
parameter
Indication lamp of connected
remote control device
Wire inch
Gas purge
