2.2 Mounting
The control panel should be mounted on a dry, flat surface, at eye height to the displays and in a level position such
that the enclosure is not distorted.

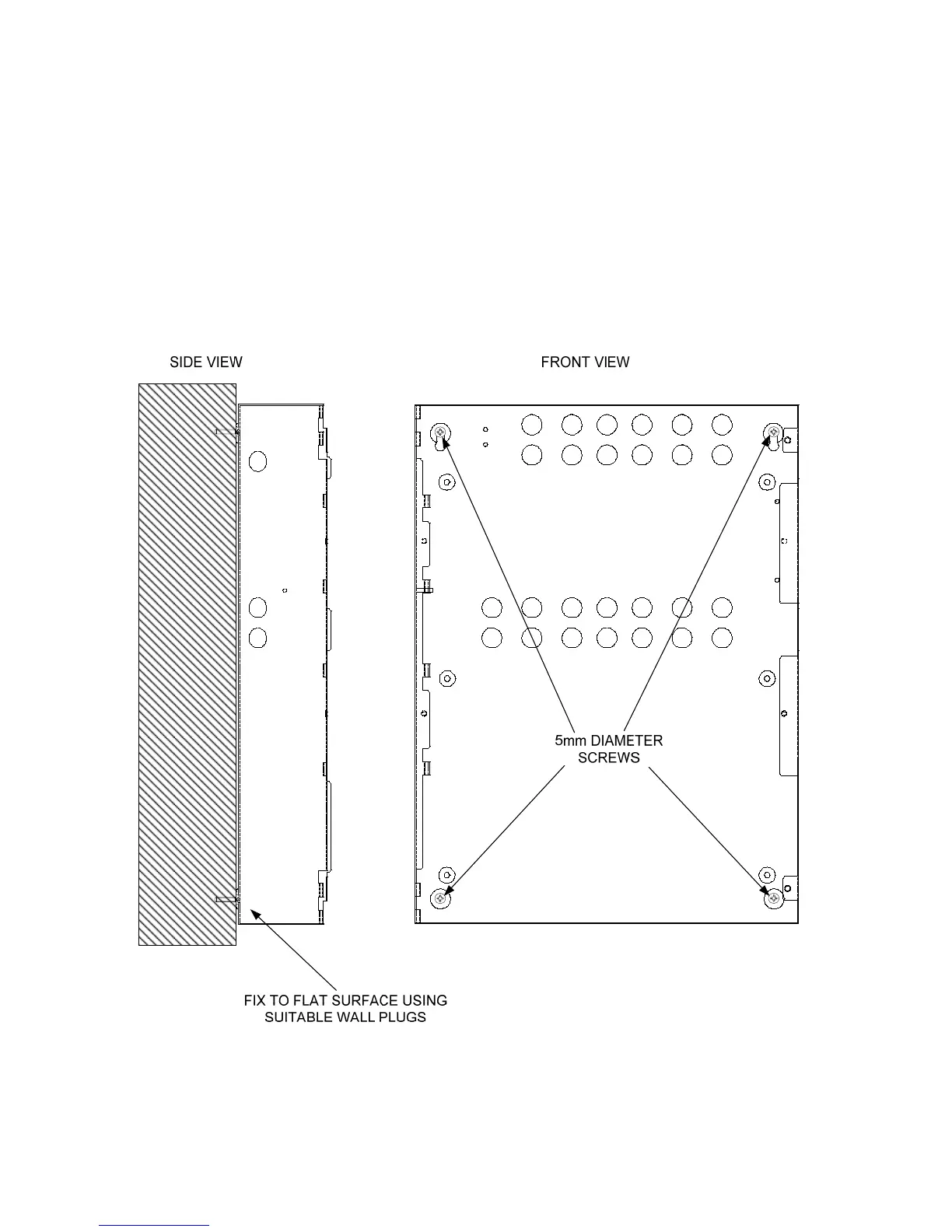

Screws or bolts of a minimum of 5mm diameter must be used to mount the enclosure in all four mounting positions.
It should be positioned in an accessible place as agreed with the end user.
Suitable fixings should be used at all fixing points such that the control panel is securely mounted and is not liable to
move once fixed.
The control panel should not be mounted in another enclosure or near sources of excessive heat.
Cables should be connected using suitable cable glands fitted to the knockouts provided. If additional cable entry
points are required, all swarf and debris caused by drilling of additional cable entries must be cleared before power is
applied to the panel.
Cables should not be installed in the bottom of the enclosure. This space must be kept free for batteries.
