Connection/Installation
34

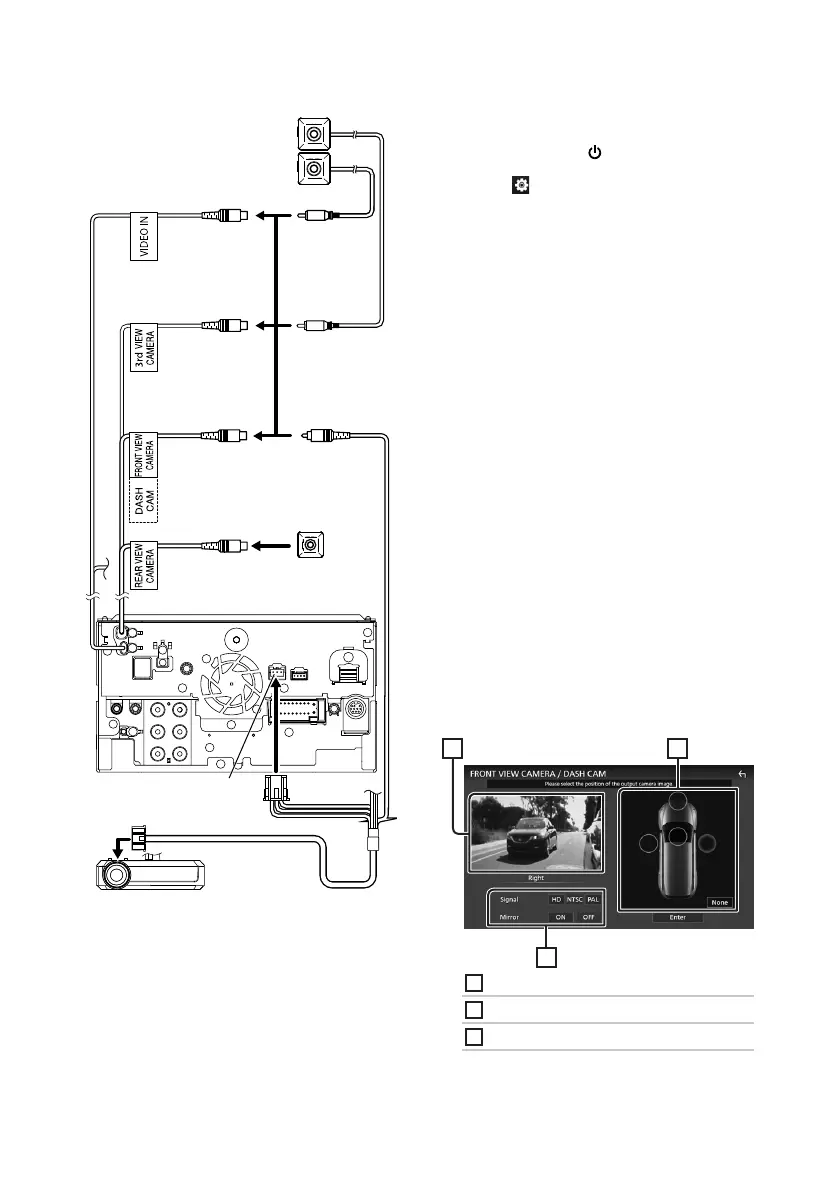

Ñ Connecting the camera
DRV-N520
[1]
3rd view camera
input (Yellow)
Front view camera/
Dashboard camera
input (Yellow)
Front view camera
[4] [6]
Left side view camera and
Right side view camera
[2]
Video input
(Yellow)
Rear view camera
input (Yellow)
Dashboard camera interface
Rear view camera
[4] [5]
[3]
[1]
Optional accessory
[2]
Sold separately
[3]
Up to 3 cameras of Dashboard camera, Front
view camera, Left side view camera and Right
side view camera can be connected. (P.34).
[4]
CMOS-3xx series (optional accessory) or
commercially available camera.
[5]
For HD video, an HD camera is also used as
Rear view camera.
[6]
For HD video, an HD camera is also used as
Front view camera.
Ñ To set up the camera
assignment settings
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [SETUP].
SETUP Menu screen appears.
4
Touch [Camera].
Camera setting menu appears.
5
Touch [Camera Assignment Settings].
6
Select the item to set up.
■ [REAR VIEW CAMERA]
Set the camera assignment from view
camera connected to Rear view camera
input terminal.
■ [FRONT VIEW CAMERA / DASH CAM]
Set the camera assignment from view
camera connected to Front view camera/
Dashboard camera input terminal.
■ [3rd VIEW CAMERA]
Set the camera assignment from view
camera connected to 3rd view camera input
terminal.
■ [VIDEO IN]
Set the camera assignment from view
camera connected to Video input terminal.
7
Select the view camera to set up.
1 2
3
1
[Picture from view camera]
2
[Camera position]
3
[Picture quality settings]
8
Touch [Enter].
