Controlling Audio
69English

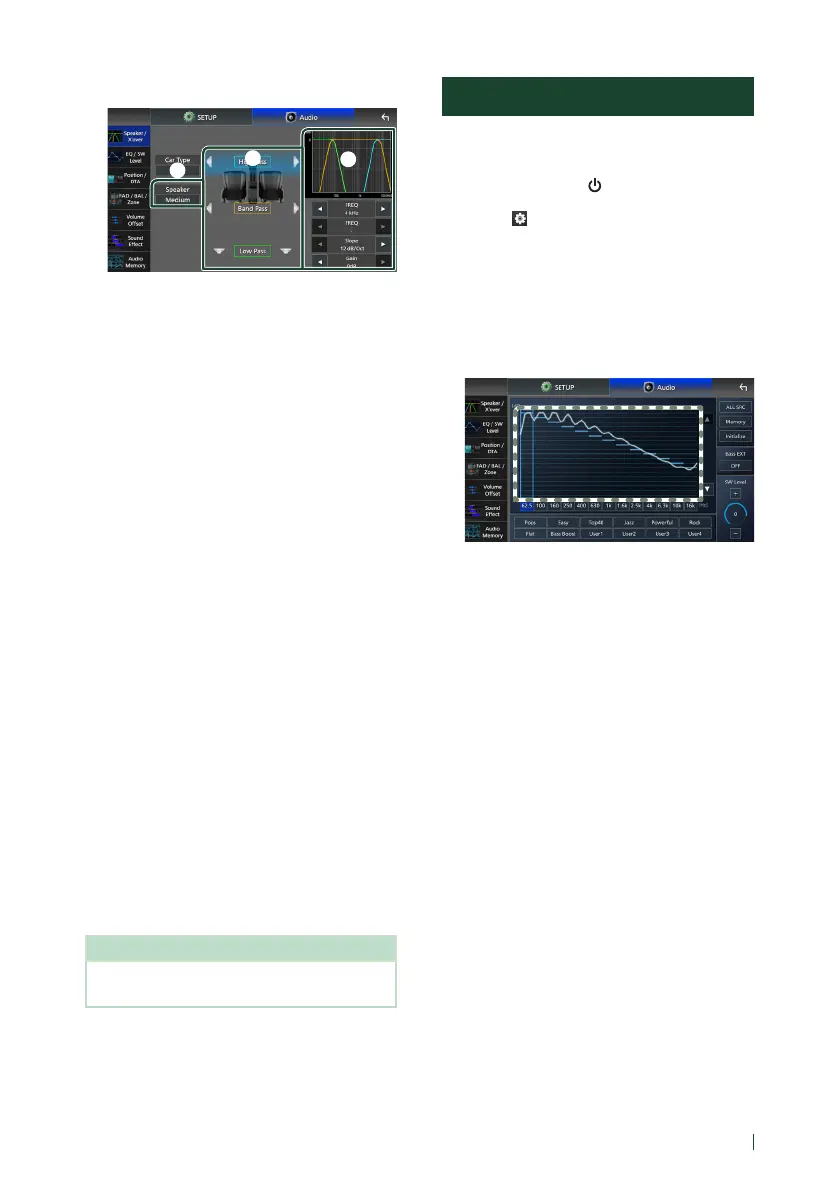

When Speaker network is set to 3-way:
2
2
1
■ [Speaker]
You can select a speaker type and its size to
get the best sound effects. If you have no
speakers, select “None”.
When the speaker type and size are selected,
the speaker crossover network is set
automatically.
■ [FREQ] (High Pass)
High Pass Filter adjustment. (Only for High
Pass)
■ [FREQ] (Low Pass)
Low Pass Filter adjustment. (Only for Low
Pass)
■ [HPF FREQ], [LPF FREQ] (Only for Band
Pass)
Band Pass Filter adjustment.
■ [Slope]*
1
*
2
Set a crossover slope.
■ [Gain]
Set the gain of each speaker.
■ [Phase Inversion]
Set the phase of tweeter, mid range, and
woofer output.
Check [Phase Inversion] to shift the phase
180 degrees.
*
1
Only when “LPF FREQ”/“HPF FREQ” (Band
Pass) is set to a mode other than “Through”.
*
2
Only when “FREQ” (Low Pass) is set to a
mode other than “Through”.
NOTE
• For how to switch to the 3-way speaker system,
see 3-way speaker system setup (P.67).
Equalizer Control
You can adjust equalizer by selecting the
optimized setting for each category.
1
Press the [HOME]/[ ] button.
2
Touch [ ].
3
Touch [Audio].
Audio screen appears.
4
Touch [EQ / SW Level].
5
Touch the screen and set the Graphic
Equalizer as desired.
■ Gain level (area in dotted frame)
Adjust the gain level by touching each
frequency bar.
You can select a frequency bar and adjust its
level by [R], [S].
■ [ALL SRC]
Apply the adjusted equalizer curve to all
sources. Touch [ALL SRC] and then touch
[OK] on the confirmation screen.
■ [Memory]
Saves the adjusted equalizer curve as “User1”
to “User4”. (P.70)
■ [Initialize]
Initialize (flatten) the current EQ curve.
■ [Bass EXT] (Bass Extend Settings)
When turned on, the frequencies lower than
62.5 Hz is set to the same gain level (62.5 Hz).
■ [SW Level]
Adjust the subwoofer volume. This setting
is not available when Subwoofer is set to
“None”. See Speaker / X’over setup (P.68).
■ [Pops]/[Easy]/[Top40]/[Jazz]/[Powerful]/
[Rock]/[Flat]/[Bass Boost]/[User1]/
[User2]/[User3]/[User4]
Recall the preset EQ curve.
To Next Page
