Kenwood DMX8021DABS Quick Start Guide

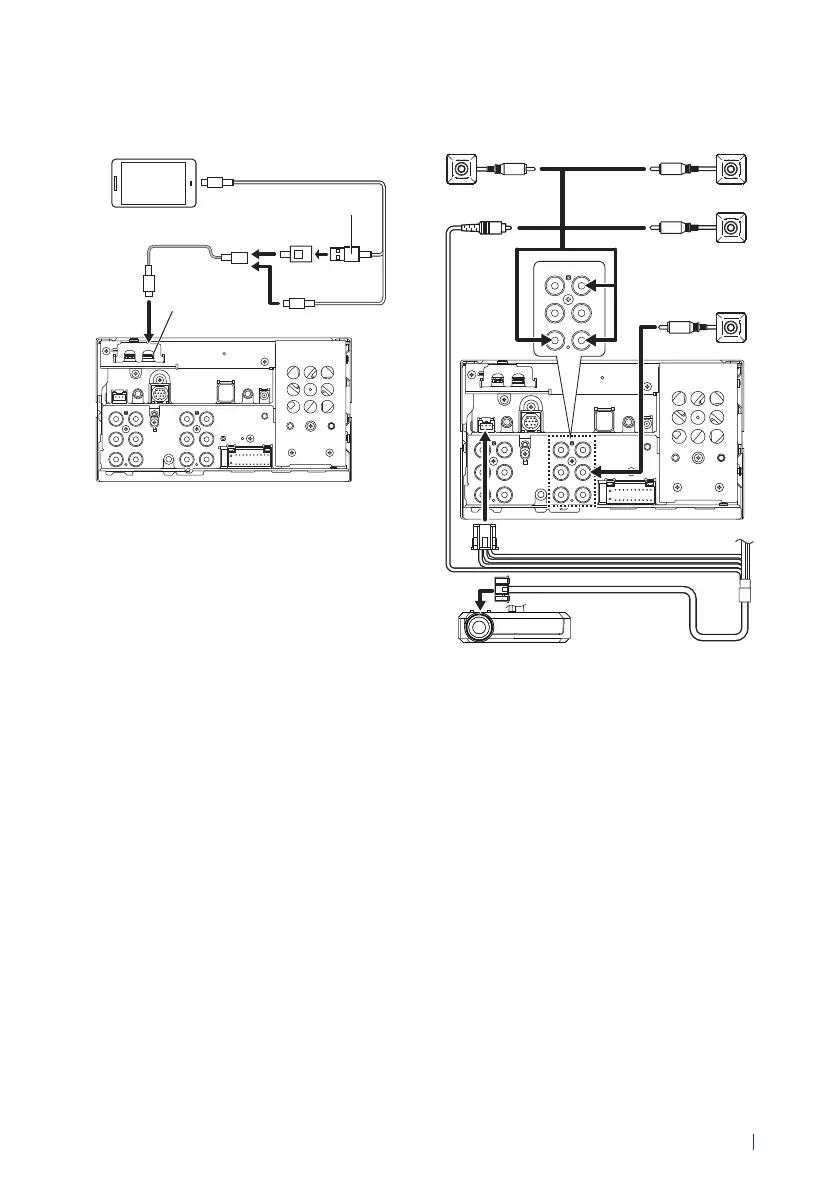

Connection/Installation
19English
Ñ Connecting an Android™
smartphone
USB Type-A Cable
[2]
Android™ smartphone
[2]
USB Type-C Cable
[2]
USB terminal
[1]
Accessory 3
Accessory 2 (1.0m)
[1]
USB maximum power supply current :
DC 5 V = 3.0 A
[2]
Sold separately
Ñ Connecting the camera
3-CAM
R-CAM
F-CAMV-IN
V-OUT
NC
DRV-N520
[1]
[3]
Front view camera
[2] [4]
Left side view
camera
[2]
Right side view
camera
[2]
Rear view
camera
[2] [4]
Dashboard camera interface
[1]
Optional accessory
[2]
Sold separately
[3]
Up to 3 cameras of Dashboard camera, Front
view camera, Left side view camera and Right
side view camera can be connected. For
details, see To set up the camera assignment
settings (P.53) in the Instruction Manual.
[4]
CMOS-3xx series (optional accessory) or
commercially available camera.
