Kenwood DMX8021DABS Quick Start Guide

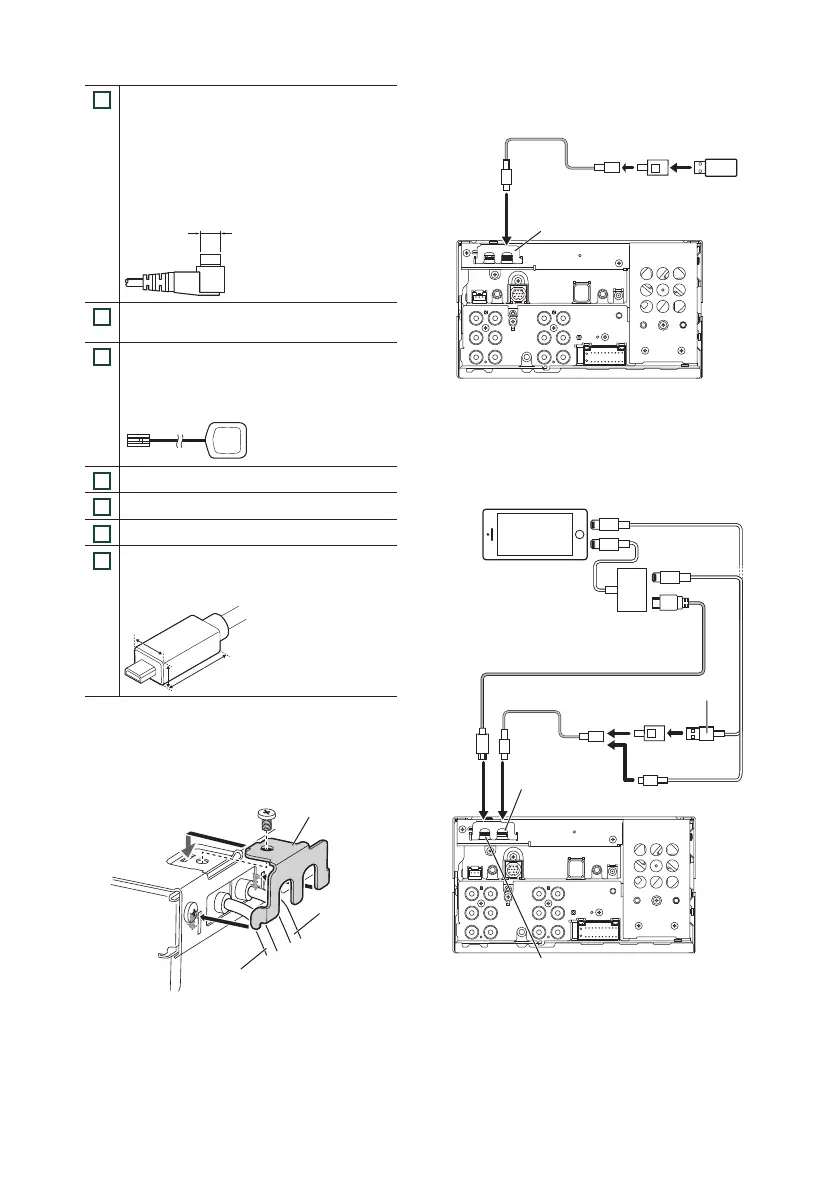

Connection/Installation
18
10
Digital Radio antenna CX-DAB1 (Optional
accessory)
!
Use of a CX-DAB1(optional accessory) as a
Digital Radio antenna is recommended.
When using a commercially available Digital
Radio antenna, the diameter of the SMB
connector must be Φ6.5 mm or less.
Φ 6.5 mm (maximum)
11
Connect to vehicle’s steering remote harness.
Contact your KENWOOD dealer for details.
12
Accessory 7: GPS Antenna
Use the supplied GPS antenna. Using the GPS
antenna other than the supplied one may
cause a drop in positioning accuracy.
13
Visual Output (Yellow)
14
External I/F
15
USB terminal (USB Type-C®)
16
HDMI input (Type-D)
Connect a KCA-HD200 (optional accessory) to
HDMI input terminal.
W: 11.1 mm or less
H: 7.7 mm or less
D: 21.5 mm or less
W
H
D
Installation/removal of fixing bracket
When you connect the cable to HDMI terminal
and USB terminal, remove the fixture. After
connecting the cable, put the fixture again.
Fixture
USB cable
HDMI cable
Ñ Connecting a USB device
Accessory 2 (1.0m)
Accessory 3
USB terminal
[1]
USB Type-A device
[2]
[1]
USB maximum power supply current :
DC 5 V = 3.0 A
[2]
Sold separately
Ñ Connecting an iPod/iPhone
KCA-HD200 (1.8 m)
[3]
iPod/iPhone
[2]
USB-C to Lightning Cable
[2]
USB terminal
[1]
HDMI terminal
Lightning Digital AV
Adapter
[2]
KCA-iP103 (0.8m)
[3]
Accessory 3
Accessory 2 (1.0m)
[1]
USB maximum power supply current :
DC 5 V = 3.0 A
[2]
Sold separately
[3]
Optional accessory
