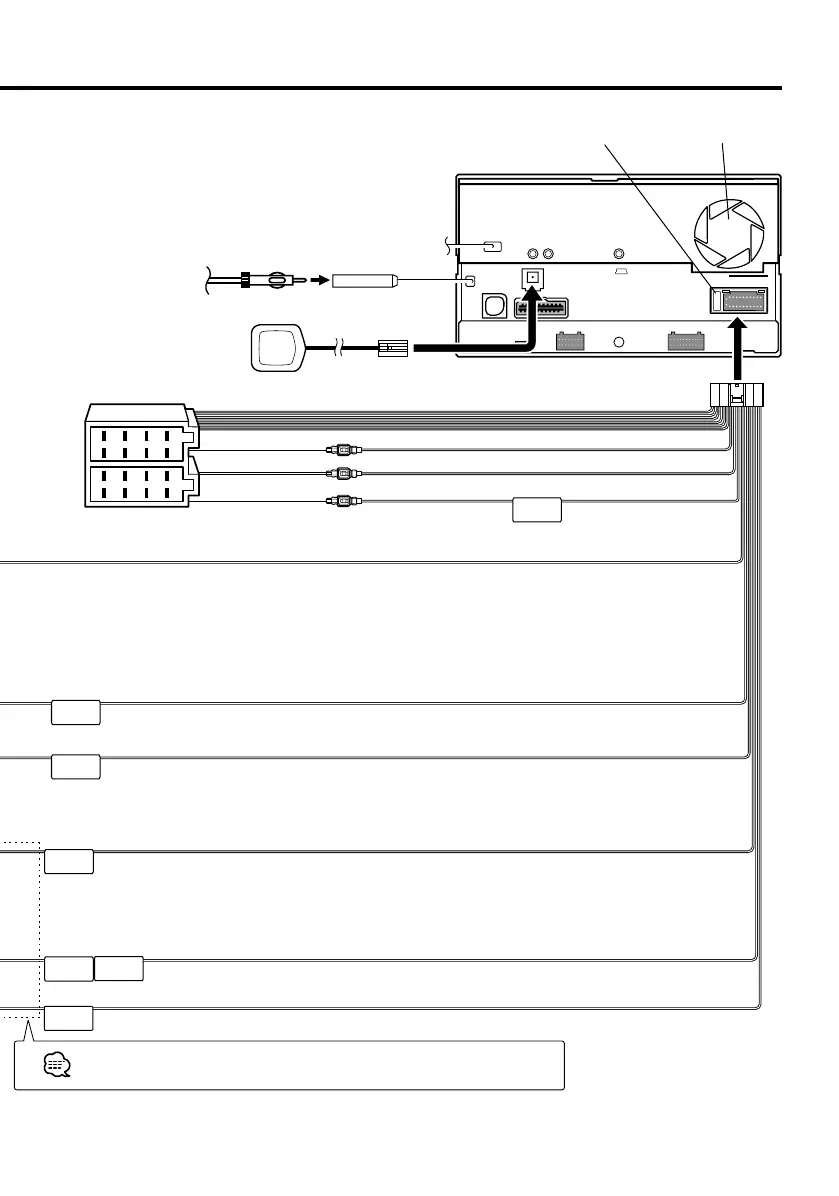

Kenwood DNX - Rear View Connections

English
|
5
ILLUMI
ANT. CONT
P CONT
EXT.CONT
REVERSE
MUTE
REMO.CONT
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Accessory 1
Cooling fan
Rear view
FUSE (15A)
Accessory 8 (GPS Antenna )
(see page 8)
Antenna Cord
FM/AM
antenna input
Parking sensor wire (Light Green)
Battery wire (Yellow)
Ignition wire (Red)
Steering remote control input (Light Blue/Yellow)
If no connections are made, do not let the cable come out from the tab.
Mute wire (Brown)
External amplifier control wire (Pink/Black)
Dimmer control wire (Orange/White)
Reveres sensor wire (Purple/White)
A–7 Pin (Red)
A–4 Pin (Yellow)
Power control/ Motor antenna control wire (Blue/White)
Connector A
Connector B
