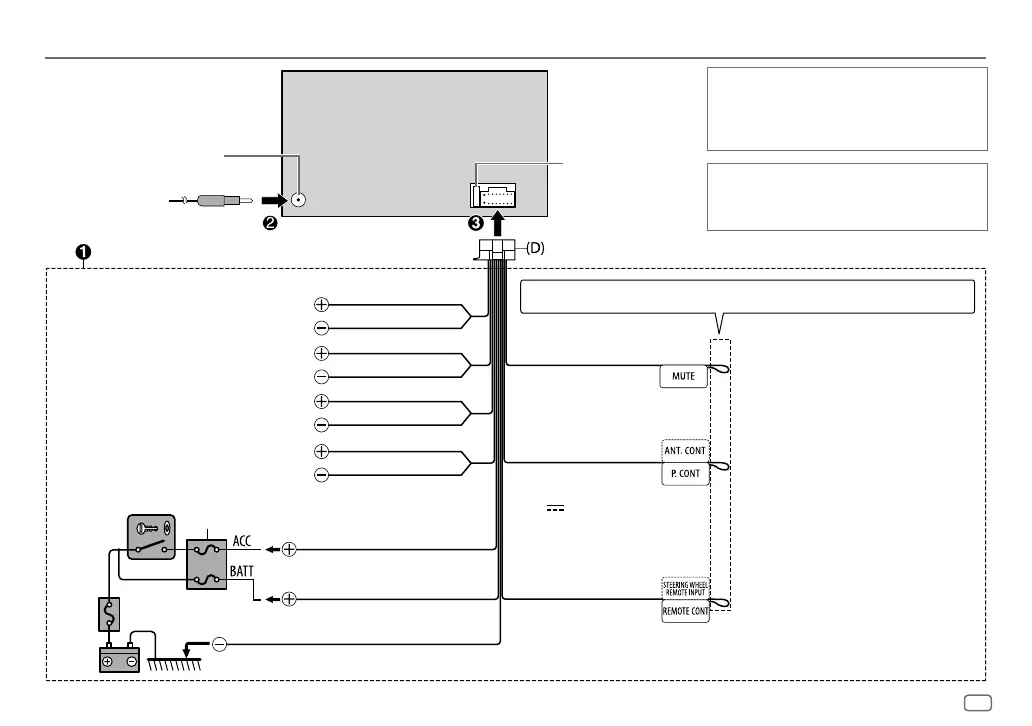

Wiring connection
Fuse (10A)
Antenna terminal
Car fuse box
Car fuse
box
Battery
Ignition
switch
Blue/White
(Power control wire/
Antenna control wire)
(12 V
350 mA)
Light blue/yellow
(Steering remote control
wire)
Red (Ignition wire)
Yellow (Battery wire)
Black (Ground wire)
To the metallic body or chassis of the car
To the power control terminal when using
the optional power amplifier or to the
antenna control terminal in the vehicle
Brown
(Mute control wire)
White
Gray
Green
Purple
White/Black
Gray/Black
Green/Black
Purple/Black
To connect the Kenwood navigation system,
refer your navigation manual
To front speaker (left)/
For 3-way crossover: Mid range speaker (left)
To rear speaker (left)/
For 3-way crossover: Tweeter (left)
To front speaker (right)/
For 3-way crossover: Mid range speaker (right)
To rear speaker (right)/
For 3-way crossover: Tweeter (right)
If no connections are made, do not let the wire come out from the tab.
When connecting to an external amplifier, connect
its ground wire to the car’s chassis to avoid damaging
the unit.
IMPORTANT :
We recommend installing the unit
with a commercially available custom wiring harness
specific for your car and leave this job to professionals
for your safety. Consult your car audio dealer.
INSTALLATION/CONNECTION
To the steering wheel remote control
adapter
