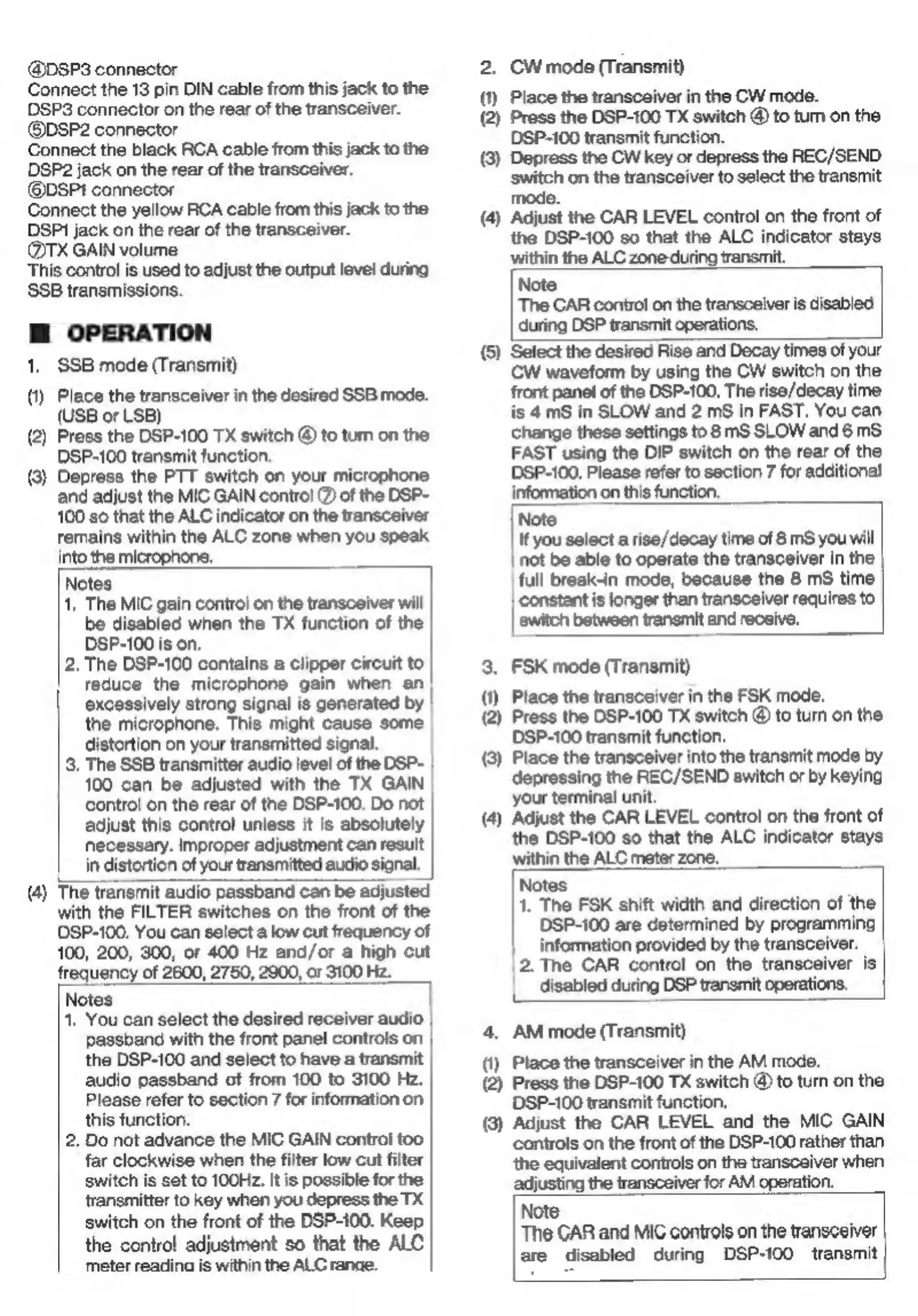

@DSP3 connector
Connect the 13 pin DIN cable from this jack to the
DSP3 connector on the rear of the transceiver.
®©DsP2 connector
Connect the black RCA cable from this jack to the
DSP2 jack on the rear of the transceiver.
©DSPt
connector
Connect
the
yellow
RCA
cable
from
this
jack
to
the
DSP1
jack
on the rear
of the transceiver.
@TX GAIN volume
This control is used to adjust the output level during
SSB transmissions.
E
OPERATION
1,
SSB
mode
(Transmit)
(1)
Place
the
transceiver
in
the
desired
SSB
mode.
(USB
or
LSB)
(2)
Press
the
DSP-100
TX
switch
@
to
turn
on
the
DSP-100
transmit
function.
(3) Depress the PTT switch on your microphone
and
adjust
the
MIC
GAIN
control
©
of
the
DSP-
100 so that the ALC indicator on the transceiver
remains within the ALC zone when you speak
into the microphone.
Notes
,
The
MIC
gain
control
on
the
transceiver
will
be
disabled
when
the
TX
function
of
the
DSP-100
is on.
2. The DSP-100 contains a clipper circuit to
reduce
the
microphone
gain
when
an
excessively strong signal is generated by |
the microphone. This might cause some
distortion
on
your
transmitted
signal.
The
SSB
transmitter
audio
level
of
the
DSP-
|
100
can
be
adjusted
with
the
TX
GAIN
control
on
the
rear
of
the
DSP-100.
Do
not
|
adjust
this
control
unless
ìt
is
absolutely
|
necessary.
Improper
adjustment
can
result
in
distortion
of
your
transmitted
audio
signal.
(4) The transmit audio passband can be adjusted
with the FILTER switches on the front of the
DSP-100. You can select a low cut frequency of
100, 200, 300, or 400 Hz and/or a high cut
frequency of 2600, 2750, 2900, or S100 Hz._
Notes |
. You can select the desired receiver audio
passband
with
the
front
panel
controls
on
the DSP-100 and select to have a transmit
audio passband of from 100 to 3100 Hz.
Please refer to section 7 for information on
this function.
Do not advance the MIC GAIN control too
far clockwise when the filter low cut filter
switch is set to 100Hz. It is possible for the
transmitter
to
key
when
you
depress
the
TX
switch on the front of the DSP-100. Keep
the contro! adjustment so that the ALC
meter readina is within the ALC ranae.
2
N
2. CW mode (Transmit)
(1)
Place
the
transceiver
in
the
CW
mode.
(2)
Press
the
DSP-100
TX
switch
@
to
tum
on
the
DSP-100
transmit
function.
(3)
Depress
the
CW
key
or
depress
the
REC/SEND
switch
on the transceiver
to select
the transmit
mode.
(4) Adjust the CAR LEVEL control on the front of
the DSP-100 so that the ALC indicator stays
within the ALC zone during transmit.
Note
The CAR control on the transceiver is disabled
during DSP transmit operations.
(6)
Select
the
desired
Rise
and
Decay
times
of
your
CW waveform by using the CW switch on the
front panel of the DSP-100. The rise/decay time
is 4 mS in SLOW and 2 mS in FAST. You can
change these settings to 8 mS SLOW and 6 mS
FAST using the DIP switch on the rear of the
DSP-100. Please refer to section 7 for additional
information on this function.
[Note
| you select a rise/decay time of 8m you will
| not be able to operate the transceiver in the
full break-in mode, because the 8 mS time
| constant is longer than transceiver requires to
| switch between transmit and receive,
3. FSK mode (Transmit)
(1)
Place
the
transceiver
in
the
FSK
mode.
(2)
Press
the
DSP-100
TX
switch
@
to
turn
on
the
DSP-100
transmit
function.
(3)
Place
the
transceiver
into
the
transmit
mode
by
depressing
the REC/SEND
switch
or by keying
your
terminal
unit.
(4)
Adjust
the
CAR
LEVEL
control
on
the
front
of
the
DSP-100
so
that
the
ALC
indicator
stays
within
the
ALC
meter
zone.
Notes
1. The FSK shift width and direction of the
DSP-100
are
determined
by
programming
|
_
information
provided
by
the
transceiver.
2. The CAR control on the transceiver is
disabled during DSP transmit operations.
4. AM mode (Transmit)
(1)
Place
the
transceiver
in
the
AM
mode.
(2)
Press
the
DSP-100
TX
switch
@
to
turn
on
the
DSP-100
transmit
function.
(3)
Adjust
the
CAR
LEVEL
and
the
MIC
GAIN
controls
on
the
front
of
the
DSP-100
rather
than
the
equivalent
controls
on
the
transceiver
when
adjusting
the
transceiver
for
AM
operation.
Note
|
The
ÇAR
and
MIC
controls
on
the
transceiver
are
disabled
during
DSP-100
transmit
|
