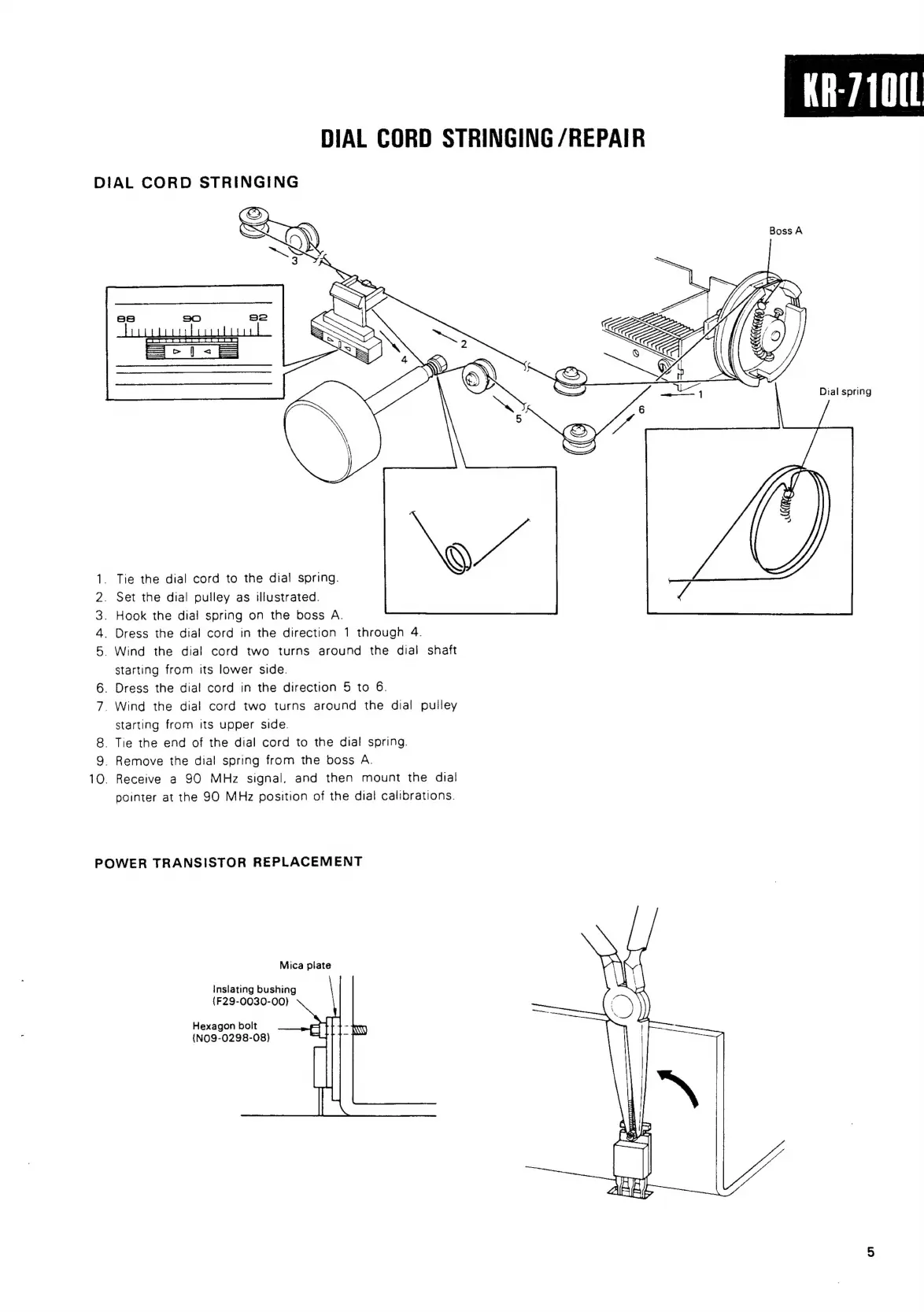

DIAL CORD STRINGING /REPAIR
DIAL CORD STRINGING
Tie the dial cord to the dial spring.
Set the dial pulley as illustrated.
Hook the dial spring on the boss A.
oh ee
starting from its lower side.
2)
starting from its upper side.
8. Tie the end of the dial cord to the dial spring.
9. Remove the dial spring from the boss A.
_ Receive a 90 MHz signal, and then mount the dial
pointer at the 90 MHz position of the dial calibrations.
POWER TRANSISTOR REPLACEMENT
Mica plate
Inslating bushing
{F29-0030-00)
Hexagon bolt
(NO9-0298-08)
Dress the dial cord in the direction 1 through 4.
Wind the dial cord two turns around the dial shaft
_ Dress the dial cord in the direction 5 to 6.
7. Wind the dial cord two turns around the dial pulley
Boss A
Dial spring
