Kenwood MDX-F1 Service Manual

MDX-F1
12
CIRCUIT DESCRIPTION

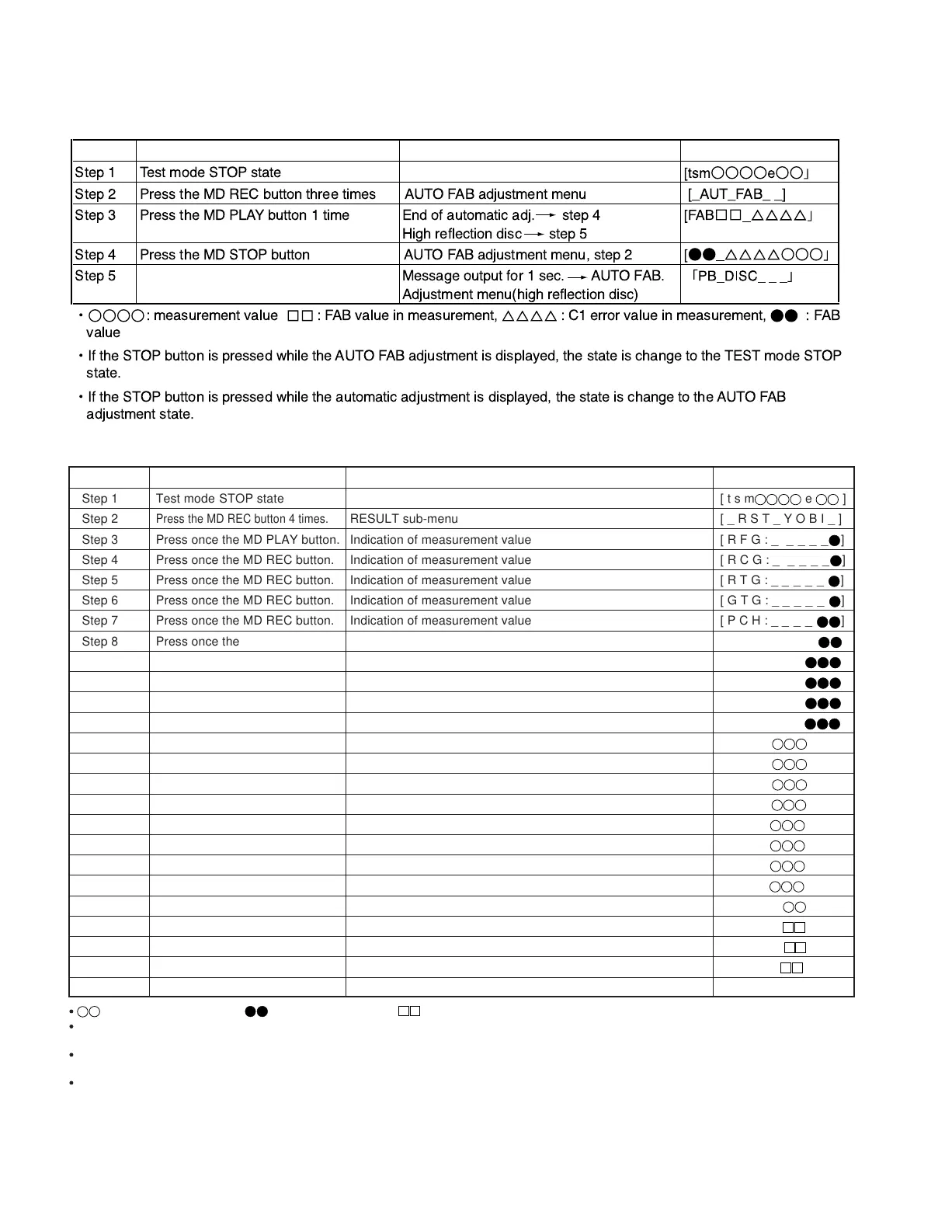

3. AUTO FAB adjusting mode
Step No. Setting Method Remarks Display
Step 1 Test mode STOP state
Step 2 Press the MD REC button three times AUTO FAB adjustment menu [_AUT_FAB_ _]
Step 3 Press the MD PLAY button 1 time
End of automatic adj. step 4
High reflection disc step 5
Step 4 Press the MD STOP button AUTO FAB adjustment menu, step 2
Step 5
Message output for 1 sec. AUTO FAB.
Adjustment menu(high reflection disc)
¥ : measurement value : FAB value in measurement, : C1 error value in measurement, : FAB
value
¥ If the STOP button is pressed while the AUTO FAB adjustment is displayed, the state is change to the TEST mode STOP
state.
¥ If the STOP button is pressed while the automatic adjustment is displayed, the state is change to the AUTO FAB
adjustment state.
Step 1 Test mode STOP state [ t s m e ]
Step 2 Press the MD REC button 4 times. RESULT sub-menu [ _ R S T _ Y O B I _ ]
Step 3 Press once the MD PLAY button. Indication of measurement value [ R F G : _ _ __ _ ]
Step 4 Press once the MD REC button. Indication of measurement value [ R C G : _ _ __ _ ]
Step 5 Press once the MD REC button. Indication of measurement value [ R T G : _ _ _ _ _ ]
Step 6 Press once the MD REC button. Indication of measurement value [ G T G : _ _ _ _ _ ]
Step 7 Press once the MD REC button. Indication of measurement value [ P C H : _ _ _ _ ]
Step 8 Press once the MD REC button. Indication of measurement value [ G C H : _ _ _ _ ]
Step 9 Press once the MD REC button. Indication of measurement value [ S A G : _ _ _ ]
Step 10 Press once the MD REC button. Indication of measurement value [ S B G : _ _ _ ]
Step 11 Press once the MD REC button. Indication of measurement value [ S E G : _ _ _ ]
Step 12 Press once the MD REC button. Indication of measurement value [ S F G : _ _ _ ]
Step 13 Press once the MD REC button. Indication of measurement value [ H A O : _ _ _]
Step 14 Press once the MD REC button. Indication of measurement value [ H B O : _ _ _]
Step 15 Press once the MD REC button. Indication of measurement value [ H E O : _ _ _]
Step 16 Press once the MD REC button. Indication of measurement value [ H F O : _ _ _]
Step 17 Press once the MD REC button. Indication of measurement value [ L A O : _ _ _]
Step 18 Press once the MD REC button. Indication of measurement value [ L B O : _ _ _]
Step 19 Press once the MD REC button. Indication of measurement value [ L E O : _ _ _]
Step 20 Press once the MD REC button. Indication of measurement value [ L F O : _ _ _]
Step 21 Press once the MD REC button. Indication of measurement value [ T C O : _ _ _ _]
Step 22 Press once the MD REC button. Indication of adjustment error sequence No. [ Y O B : _ _ _ _]
Step 23 Press once the MD REC button. Indication of adjustment status [ D I F : _ _ _ _]
Step 24 Press once the MD REC button. Indication of pre-adjustment not completed (00)/completed (4B) [ A D J : _ _ _ _]
Step 25 Press once the MD STOP button. RESULT sub-menu state [ _ R S T _ Y O B I _ ]
4. RESULT sub-mode
Step No.
Setting Method
Remarks Display
: Measurement value, : Adjustment value, : Other various informations
When the FF(¡)button in remote controller is pressed while the setting is displayed, the setting increases,
and a new setting is stored in RAM.
When the FB(1)button in remote controller is pressed while the setting is displayed, the setting increases,
and a new setting is stored in RAM.
When the FF or FB button in remote controller is pressed continously, steps is change by 100ms period.

Kenwood MDX-F1 Specifications

Amplifier Section

rated output power during STEREO operation	4 W + 4 W
speaker unit	80 mm, cone type

Tuner Section

FM tuning frequency range	87.5 MHz ~ 108 MHz
MW (AM) tuning frequency range	531 kHz ~ 1, 602 kHz

General Specifications

power consumption	38 W
standby power consumption	0.3 W
dimensions (W x H x D)	464 mm x 182 mm x 243 mm
weight (net)	5.4 kg
