Display
( The displays given in this manual are approximations only.
They may differ from what actually appears on the display.)
1 PGM (program) indication
2 Indication related to CD and MD
3 Timer-related indicators
4 A.P.S. (Auto Power Save) indicator
5 Character information display section (dot display)
Shows character information including the input selection,
volume level and disc/track title
6 Character information display section
Frequency indication, time indication, track No., program
No., etc.
7 Tuner-related indicators
8 TAPE EQ. indication
9 O.T.E. (ONE TOUCH EDIT) indication
Appears during one-touch recording.
0 Selector-related indicators
! TITLE SEARCH indication
@ MD EDIT indication
# LOUD (Loudness) indication
$ EX.BASS (extra bass) indication
•
•
•
•
•
•
•
•
•
•
•
TITLE SEARCH
MHz
kHz
O.T.E.
TAPE EQ.
STEREO
TUNEDAUTOTOTAL
3
ALL
3
REPEAT
3
RANDOM
¶
SLEEP
TRACK NO.
PM
A
M
FM
88888888
MD EDIT
1 2
LOUD
EX BASS
A.P.S.
¶
O.T.T. PROG.
REC
REC
PGM
5
!
6 @ # $7
2 41 033
98
Cassette holder
(POWER) key
“STANDBY/TIMER” indicator
Remote sensor
Display
( ) STOP key (CD/MD/TAPE/TUNING MODE)
key (CD/MD/TAPE/tuner tuning)
“SOUND” key
“MENU” key
“REPEAT” key
“TUNER FM/AM” key
“CD ” key
“MD ” key
“TAPE ” key
PUSH OPEN button
“TAPE REC” key
“MD REC” key
“VOLUME/MULTI CONTROL” knob
Mini Disc insertion slot
EJECT ( ) key
“SET/Demo” key
About the one-touch operation function
This unit incorporates the one-touch operation function for the user's convenience.
With this function, pressing any key enclosed in
( ~ ) while the unit is in standby mode immediately start
playback (or reception).
PUSH OPEN button

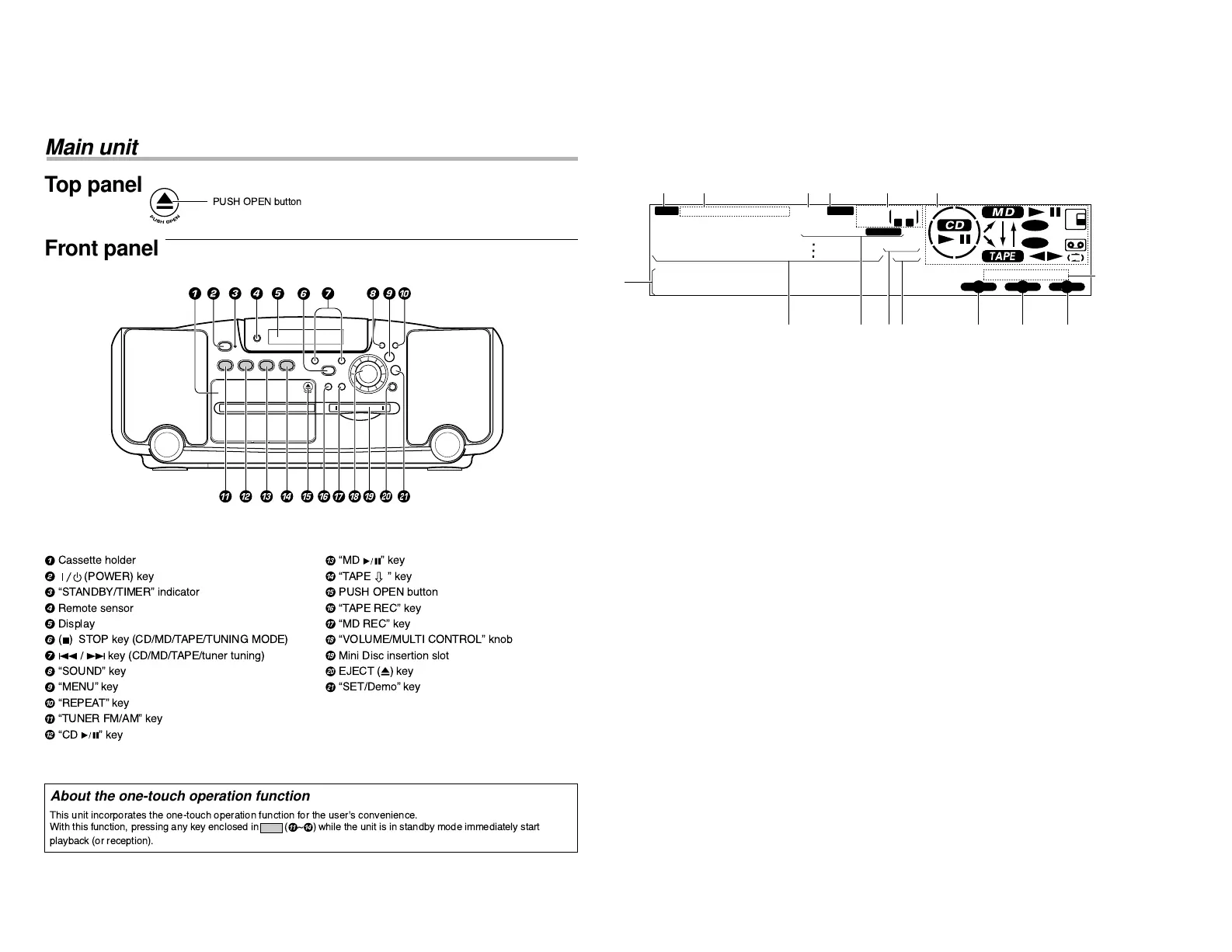

Top panel
Main unit
Front panel
