MDX-F1
4

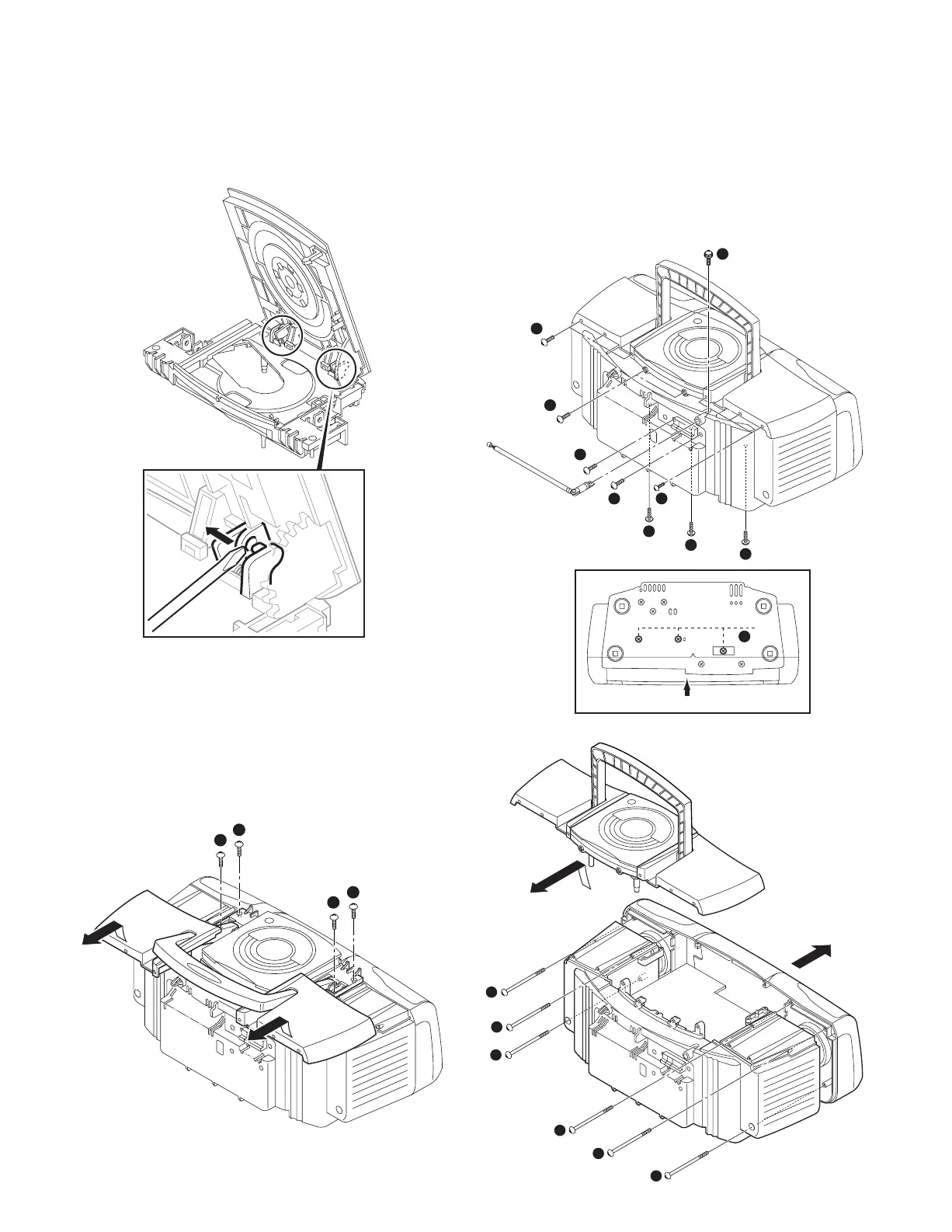

DISASSEMBLY FOR REPAIR
2
2
1
1
1
1
3
3
x3
x2
x1
3
x1
x1
x1
x1
x1
x3
2
x3
FIG.1
BOTTOM
FRONT PANEL BOTTOM
4
4
4
4
FIG.2
5
5
5
5
5
5
FIG.3
1 Remove 3 screws from bottom side(1X3).
2 Remove 8 screws on rear panel(2X8).
3 Remove 3 screws on rod ant(3X3).
4 Lift rear side of top cover and remove it.
Insert the screw driver to contact of door ass'y and sub
panel if remove door ass'y.
How to Disassemble Front Panel and Rear
Panel
How to Remove Door Ass'y
5 Remove 4 screws(4X4).
6 Lift and slide CD parts of top cover by using handle
7 Remove 6 long screws(5X6), slide front panel front-
wards.
